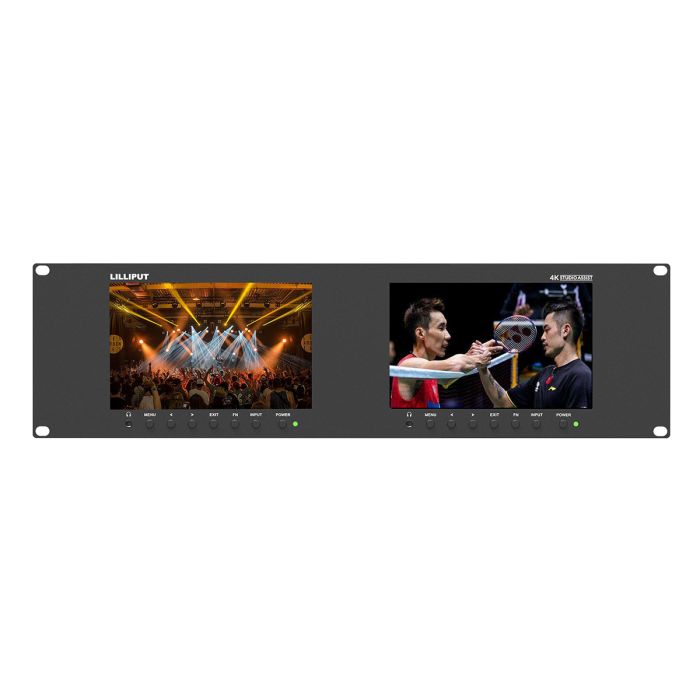

Lilliput RM-7029S Dual 7-Inch 3RU Rackmount Monitor
2x 7 inch Full HD HDMI/3G-SDI, 3U rack-mountable monitor with Daisy-Chain, Remote Control, Tally
MPN: RM-7029S SKU: RM-7029S
The Lilliput RM-7029S is a dual 7-inch 3RU rackmount monitor with 3G-SDI and HDMI 2.0 connectivity, designed for reliable multi-camera monitoring in broadcast, live production, and control room environments
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Lilliput RM-7029S is a dual 7-inch 3RU rackmount monitor designed for efficient multi-camera monitoring in broadcast and live production environments. Featuring two IPS displays, it allows simultaneous viewing of multiple camera feeds with excellent image clarity and wide viewing angles.
Equipped with 3G-SDI and HDMI 2.0 input and output, the RM-7029S supports up to 1080p60 via SDI and 4K 60Hz via HDMI, ensuring flexible, high-quality signal compatibility. Loop-through outputs enable easy expansion, making it ideal for building scalable video wall or multi-monitor setups.
With support for software control via a connected computer, users can remotely adjust monitor settings, streamlining workflows and allowing operators to focus on other tasks during production. Built for reliability and flexibility, the RM-7029S is well-suited for broadcast racks, OB vans, and control room installations.
- Dual 7” IPS displays – Monitor two camera feeds simultaneously
- 3RU rackmount design – Ideal for broadcast racks, OB vans, and studios
- 3G-SDI & HDMI 2.0 I/O – Supports up to 1080p60 (SDI) and 4K 60Hz (HDMI)
- Loop-through outputs – Expand setups and create video wall configurations
- Multi-camera monitoring – Efficiently view multiple sources at once
- Software control via computer – Adjust settings remotely for streamlined workflows
- Flexible integration – Easily fits into a wide range of production environments
Display
- Size: Dual 7″ LED backlit
- Resolution: 1920×1200
- Aspect Ratio: 16:10
- Brightness: 400cd/m²
- Contrast: 2000:1
- Viewing Angle: 160°/160°(H/V)
- Supported Log Formats: Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User…
- LUT Support: 3D-LUT (.cube format)
Video Input
- SDI: 2×3G
- HDMI: 2×HDMI(supports up to 4K 60Hz)
- LAN: 1
Video Loop Output
-
SDI 2×3G-SDI
-
HDMI 2×HDMI 2.0 (supports up to 4K 60Hz)
Supported In/Out Formats
- SDI: 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50…
- HDMI: 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50…
Audio In/Out (48kHz PCM Audio)
- Speaker: -
- Ear Phone Slot: 2
Power
- Current: 1.5A
- DC In: DC 10-24V
- Power Consumption: ≤16W
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~70℃
Other
- Dimension(LWD): 480×131.6×29.3mm
- Weight: 2.2kg
