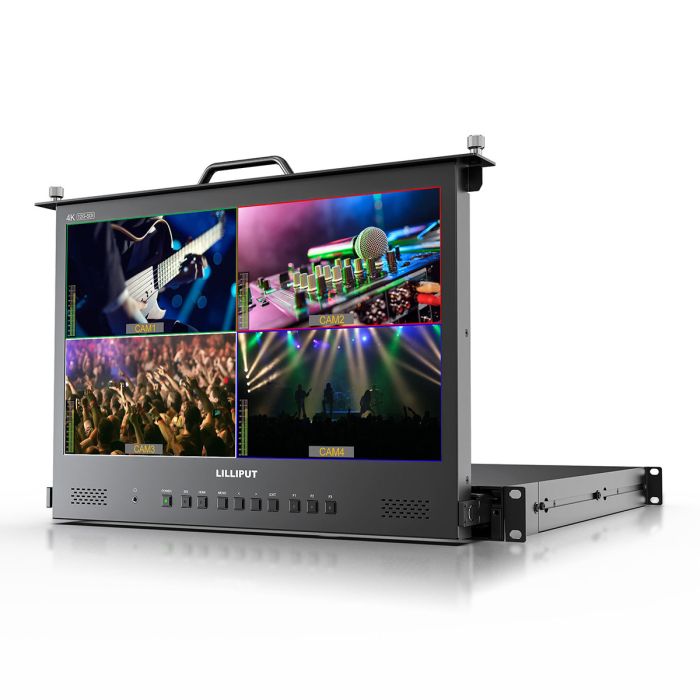

Lilliput RM1731S-12G 17.3 Inch 4×12G-SDI 1RU Pull-Out Rackmount Monitor
17.3 inch HDMI/12G-SDI, 1x Drawer Panel, 1U Rack-Mountable Monitor with Daisy-Chain, Remote Control
MPN: RM-1731S-12G SKU: RM-1731S-12G
The RM1731S-12G is a 1RU pull-out rackmount monitor featuring a 17.3-inch Full HD (1920 × 1080) IPS display, delivering excellent image clarity and accurate colour reproduction. It supports 12G-SDI and HDMI 2.0 inputs with loop-through outputs for seamless signal integration. Advanced camera assist tools; including waveform and audio vectorscope, are professionally calibrated to ensure precise monitoring and full compliance with industry standards.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The RM1731S-12G is a 1RU pull-out rackmount monitor featuring a 17.3-inch Full HD (1920 × 1080) IPS display, delivering excellent image clarity and accurate colour reproduction. It supports 12G-SDI and HDMI 2.0 inputs with loop-through outputs for seamless signal integration. Advanced camera assist tools; including waveform and audio vectorscope, are professionally calibrated to ensure precise monitoring and full compliance with industry standards.
- 4 x 12G-SDI Quad-Split Multiview
- HDMI2.0, LAN
- Screen Size:17.3 inches
- Resolution:1920x1080
- Screen:IPS
- Aspect Ratio:16:9
- Housing Material:Metal
- Brightness:300 cd/m^2
- Remote Control
- HDR/3D-LUT
Display
- Size: 17.3”
- Resolution: 1920×1080
- Brightness: 300 nits
- Aspect ratio: 16:9
- Contrast: 1200:1
- Viewing Angle: 170°/170°(H/V)
- HDR Supported: HLG; ST2084 300/1000/10000
- Color Space: 100% Rec.709
Input
- HDMI: 1×HDMI 2.0
- 12G-SDI: 4
Output
- HDMI: 1×HDMI 2.0
- 12G-SDI: 4
Supported In / Out Formats
- SDI: 2160p 24/25/30/50/60,
1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60... - HDMI: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60...
Audio In/Out
- Speaker: 2
- Audio Channel: HDMI: 8ch 24-bit; SDI: 16ch 48kHz 24-bit
- Ear Jack: 3.5mm – 2ch 48kHz 24-bit
Power
- Input Voltage: DC 12-24V
- Power Consumption: ≤19W (12V)
Environment
- Operating Temperature: 0℃~50℃
- Storage Temperature: -20℃~60℃
Other
- Dimension(LWD): 482.5×44×507.5mm
- Weight: 10.1 kg
