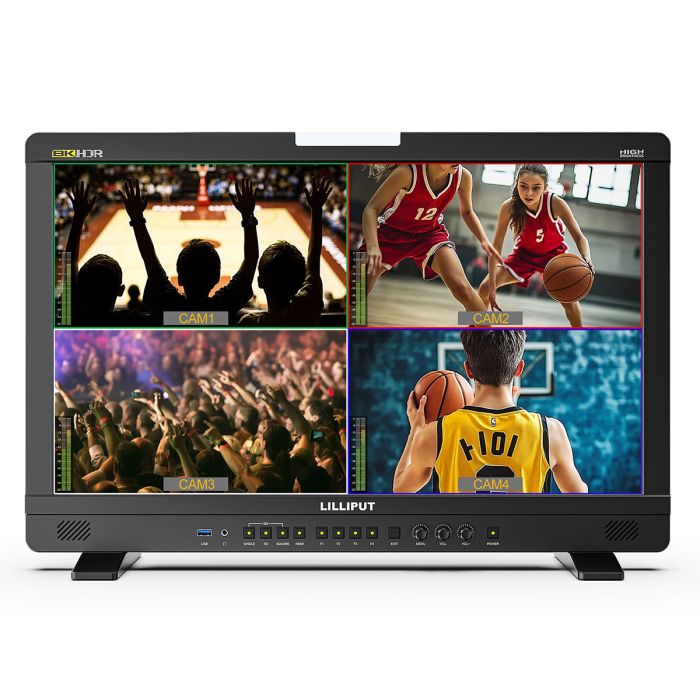

Lilliput UQ23 23.8 Inch Portable Production Monitor

23.8 inch HDMI/12G-SDI production broadcast monitor with 4K panel, 3D-LUT, Remote Control, Quad-View and Tally

MPN: UQ23 SKU: UQ23

$1,731.67

This 4K 23.8 inch 1200 nits high brightness Production Monitor, features 8K 12G-SDI and 8K HDMI 2.1 input and loop outputs. It comes with rich features, including 3D-LUT, waveform and quad-split, allowing four signals to be displayed simultaneously. Ideal for professional photographers, videographers or film makers.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

This 4K 23.8 inch 1200 nits high brightness Production Monitor, features 8K 12G-SDI and 8K HDMI 2.1 input and loop outputs. It comes with rich features, including 3D-LUT, waveform and quad-split, allowing four signals to be displayed simultaneously. Ideal for professional photographers, videographers or film makers.

  • Display:23.8" 1200 Nits 3840 x 2160 10bit LCD Display
  • Video Inputs:4 x 12G SDI, 1 x 12G SFP, 1 x HDMI2.1
  • Video Loop Outputs:4 X 12G SDI, 1 x HDMI2.1
  • All-New-UI

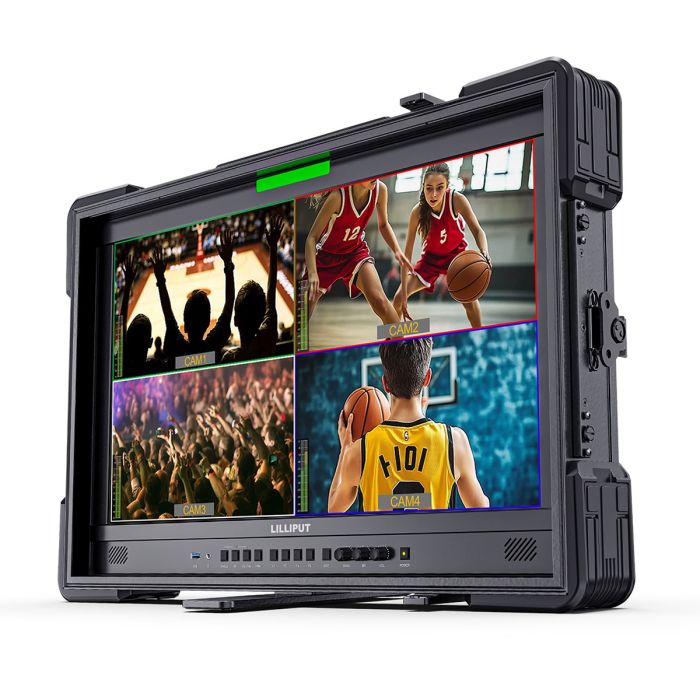

  • All-New-Rugged Suitcase(Optional)
  • HDMI 2.1 Direct 8K Support
  • Quad Link 12G-SDI 8K Support
  • Remote Application Control
  • Quad-Split Multiview

Display

  • Panel 23.8″
  • Physical Resolution: 3840*2160
  • Aspect Ratio: 16:9
  • Brightness: 1200 cd/m²
  • Contrast: 1000：1
  • Viewing Angle: 178°/178°（H/V)
  • HDR: ST2084 300/1000/10000/HLG
  • Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
  • Look up Table(LUT)support: 3D LUT (.cube format)
  • Calibration: Calibrate color space to Rec.709, DCI-P3, NTSC, BT.2020

Video Input

  • SDI: 4×12G (Supported 8K-SDI Formats Quad Link)
  • HDMI: 1×HDMI 2.1 (Supported 8K-HDMI Formats)
  • SFP: 1×12G SFP+(Fiber module for optional)

Video Loop Output

  • SDI: 4×12G (Supported 8K-SDI Formats Quad Link)
  • HDMI: 1×HDMI 2.1 (Supported 8K-HDMI Formats)

Supported Formats

  • SDI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
  • SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
  • HDMI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…

Audio In/Out (48kHz PCM AUDIO)

  • SDI: 16ch 48kHz 24-bit
  • HDMI: 8ch 24-bit
  • Ear Jack: 3.5mm
  • Built-in Speakers: 2

Remote Control

  • RS422:  In/out
  • GPI: 1
  • LAN: 1

Power

  • Input Voltage: DC 15-24V
  • Power Consumption: ≤90W (19V)

Environment

  • Operating Temperature: 0℃~50℃
  • Storage Temperature: -20℃~60℃

Other

  • Dimension(LWD): 576.6 × 375.5 × 53.5 mm
  • Weight: 7.7kg
