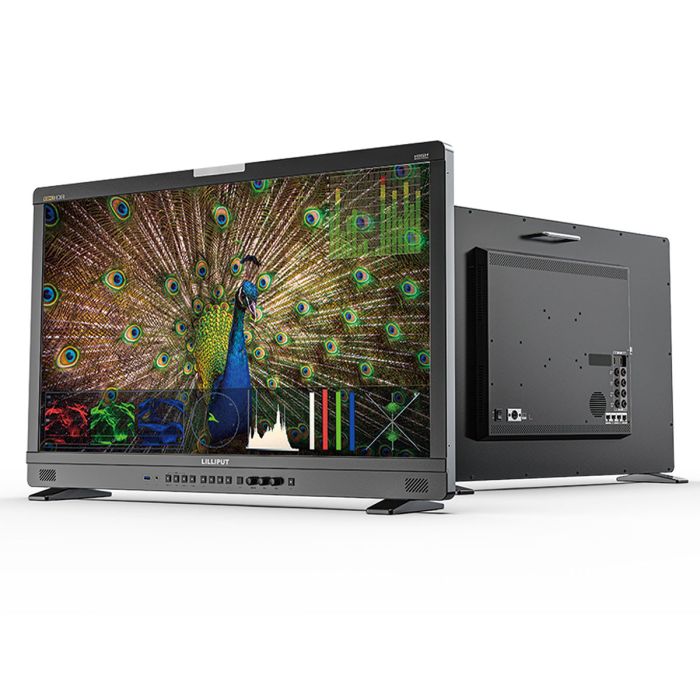

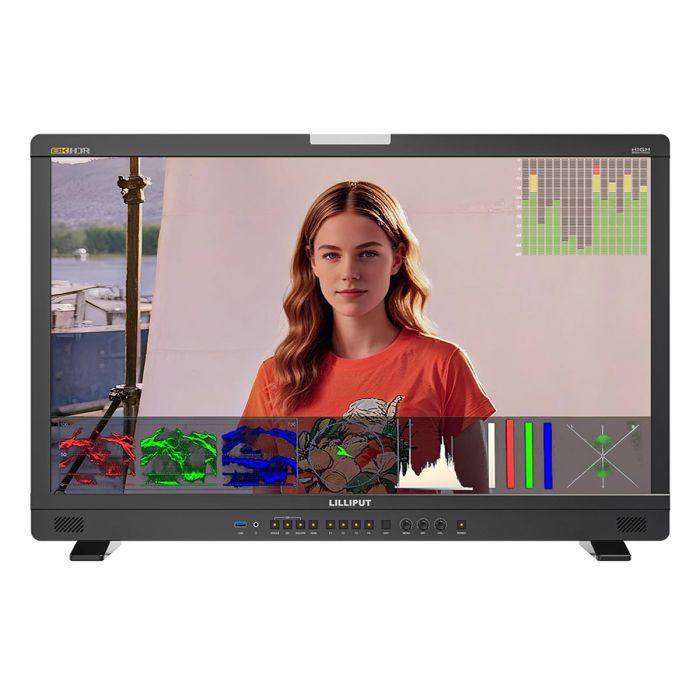

Lilliput UQ31 31.5 Inch High Brightness Production Monitor
31.5 inch HDMI/12G-SDI production broadcast monitor with 4K panel, 3D-LUT, Remote Control, Quad-View and Tally
MPN: UQ31 SKU: UQ31
The Lilliput UQ31 is a professional 31.5" high-brightness production monitor built for modern 8K workflows. Featuring quad-link 12G-SDI, HDMI 2.1, and optional 12G-SFP+ fibre connectivity, it supports video signals up to 8K 60Hz, delivering reliable, high-quality monitoring for broadcast, live production, and on-set use.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships 1-2 Days
UQ31 31.5 inch 1000 nits high brightness production monitor with 8K 12G-SDI HDMI2.1
8K 12G-SDI, HDMI VIDEO SIGNAL
Combine four 4K 60Hz video signals into one 8K 60Hz video signal using a quad-link 12G-SDI connection.
- 4×12G-SDI | Single-link & Quad-link Supports ST2082-10 and ST2082-12, the 12G-SDI quad-link
generate video signal up to 8K 60Hz. - 12G SFP+ Fiber Optic Video Supports 12G SFP+ fiber optic video signal,
transmits up to 4K 60Hz. - HDMI 2.1 Input And Loop Output Supports HDMI 2.1 video signal input and loop output, up to 8K 60Hz.
Quad-Split Multiview
In quad-split multiview mode, any input signal can be selected and changed among 12G-SDI, HDMI 2.1 and 12G-SFP+. The images can be differentiated with colourful borders. When the quad-split multiview function is turned on, there are four buttons that will turn into signal switching function, and each button corresponds to one image respectively. The photographer can quickly switch between different input signals through these four buttons.
- 31.5" 1000nits portable production monitor
- Sunlight readable screen
- A+ precide colour expression
- 8K 12G-SDI, HDMI Video Signal
- Remote Control Application
- Quad-Split Multiview
- Easy-to-use UI
Display
- Panel: 31.5″ LCD
- Physical Resolution: 3840*2160
- Aspect Ratio: 16:9
- Brightness: 1000 cd/m²
- Contrast: 1000: 1
- Viewing Angle: 178°/178°（H/V)
- HDR: ST2084 300/1000/10000/HLG
- Supported Log Formats: SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
- Look up Table(LUT)support: 3D LUT (.cube format)
- Calibration: Calibrate color space to Rec.709, DCI-P3, NTSC, BT.2020

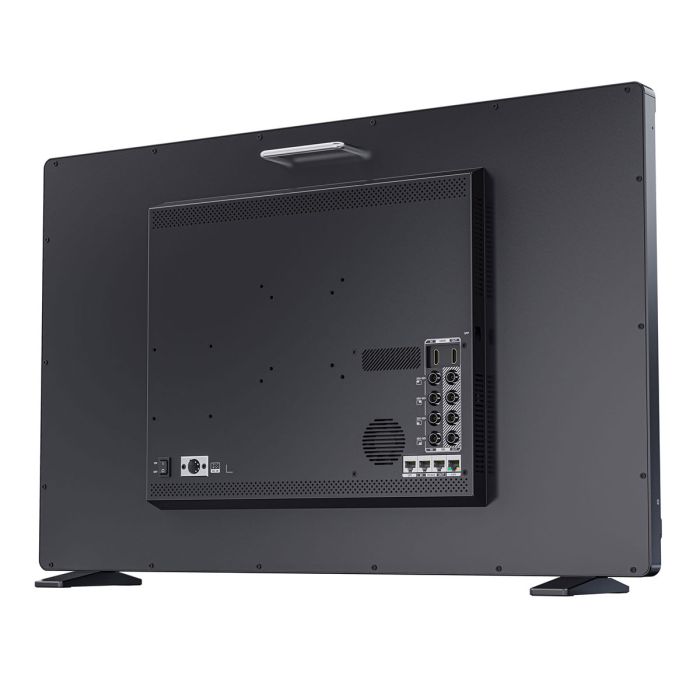

Video Input
- SDI: 4×12G (Supported 8K-SDI Formats Quad Link)
- SFP: 1×12G SFP+(Fiber module for optional)
- HDMI: 1×HDMI 2.1 (Supported 8K-HDMI Formats)
Video Loop Output
- 4×12G (Supported 8K-SDI Formats Quad Link)
- HDMI: 1×HDMI 2.1 (Supported 8K-HDMI Formats)
Supported Formats
- SDI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
- SFP: 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
- HDMI: 4320p 24/25/30/50/60, 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
Audio In/Out (48kHz PCM AUDIO)
- SDI: 16ch 48kHz 24-bit
- HDMI: 8ch 24-bit
- Ear Jack: 3.5mm
- Built-in Speakers: 2
Remote Control
- RS422: In/Out
- GPI: 1
- LAN: 1
Power
- Input Voltage DC 15-32V
- Power Consumption ≤94W (24V)
Other
- Dimension(LWD): 747mm × 475.1mm × 55mm
- Weight: 12.5kg
