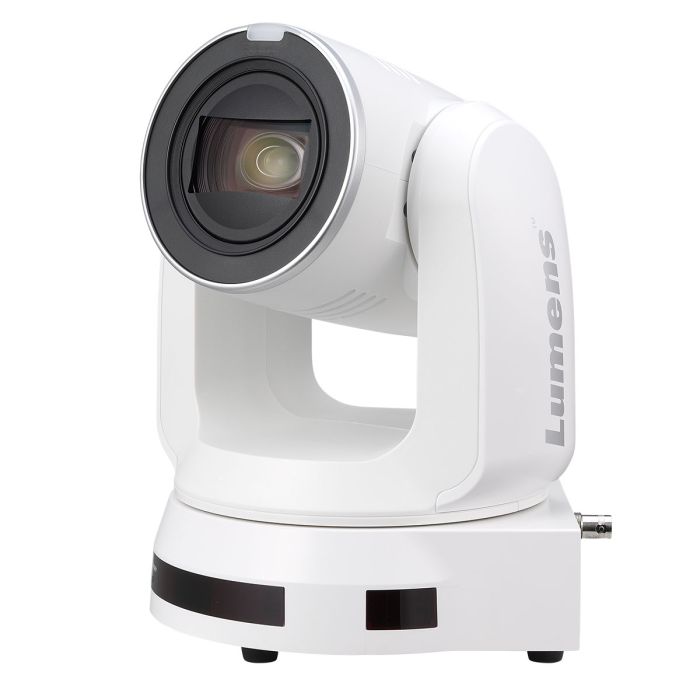

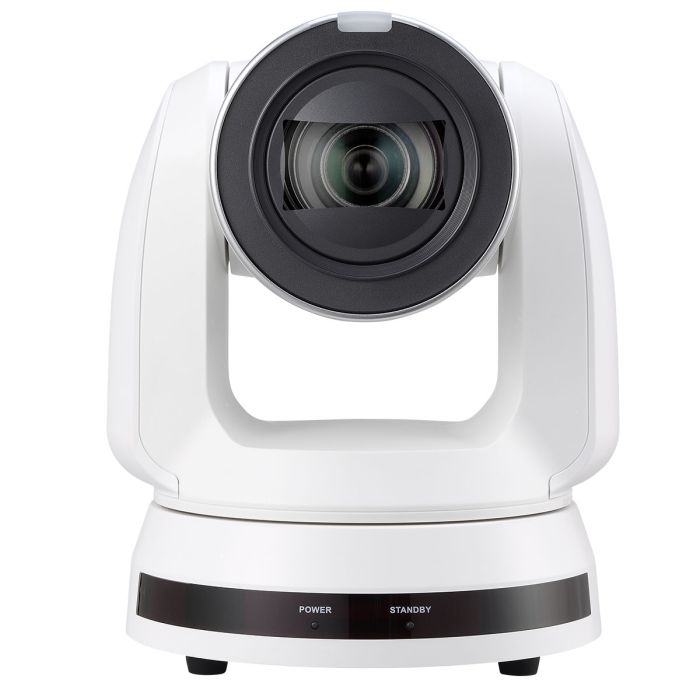

Lumens VC-A71PW 4K IP PTZ Camera - White
4K IP PTZ Camera - White
SKU: LUM-VCA71PW
The Lumens VC-A71P 4K Ultra HD PTZ camera is equipped with a professional 1/1.8-type progressive scan CMOS sensor with 8 megapixels output resolution that delivers a superb clear and vivid live image. The superior 30x optical zoom lens, excellent white balance and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness of a conference room. The camera covers wide shooting angles and achieves high-speed, quiet, and precise positioning with smooth PTZ operations.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Lumens VC-A71P 4K Ultra HD PTZ camera is equipped with a professional 1/1.8-type progressive scan CMOS sensor with 8 megapixels output resolution that delivers a superb clear and vivid live image. The superior 30x optical zoom lens, excellent white balance and exposure mode delivers a clear image even in low light or the extreme contrast of brightness and darkness of a conference room. The camera covers wide shooting angles and achieves high-speed, quiet, and precise positioning with smooth PTZ operations.

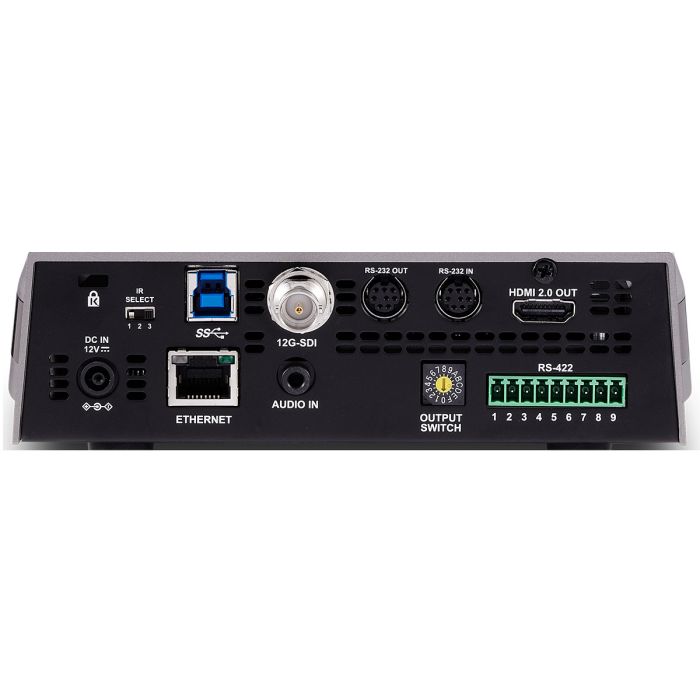

The VC-A71P UHD PTZ camera has Ethernet, HDMI 2.0, 12G SDI and USB3.0 outputs. It supports live broadcasting with H.264 / H.265 format with low latency. The VC-A71P is an applicable solution for lecture recording, videoconferencing, and live broadcasting applications.
Image Quality
Equipped with a professional image sensor with 4K UHD 60 fps and Full HD 1080p 60fps output resolution providing high color reproduction, high definition, and a crystal-clear image. The VC-A71P has a professional 30x optical zoom lens that provides image details without any distortions.
Advanced Image Processing
The advanced AF/AE/AWB algorithm and circuit design ensures a pristine image during the pan, tilt, zoom and capture function.
Easy Installation
Powered by PoE++ (Power over Ethernet) allowing a cost effective and simple installation.
Ethernet Interface
The VC-A71P supports H.264, H.265 video compression format that can reduce the bandwidth for transmitting video. This technology can decrease hard disk space when recording.
Built-In Tally Light
The VC-A71P built-in tally light. The LED lights turn on when the camera is in operation. This is an essential function for a broadcast studio or any applications with more than two PTZ cameras.
Panoramic Viewing
The VC-A71P has a panoramic 63° horizontal field of view that helps users achieve a wider viewing area.
- 4K UHD 60fps and 1080P 60fps video signal output format
- 30x optical zoom, 63 degrees Horizontal Field of View
- Triple stream video, supports H.265 / H.264 format
- HDMI, Ethernet,12G SDI, USB3.0 image output
- Supports RTSP / RTMP / MPEG-TS streaming protocol
- Up to 256 user defined preset modes to allow ease of use in all environments
- Maximum horizontal/vertical speed of rotation: 300 degrees/sec
- Wide Pan/Tilt/Zoom mechanism:
- Horizontal viewing angle: -170° to +170°
- Tilting angle up to 90°, and down to -30°
- Supports Power Over Ethernet (PoE++)
- Sensor: 1/1.8" 9.17MP CMOS
- Video Format:
- 2160p: 59.94 / 50 / 29.97 / 25
- 1080p: 59.94 / 50 / 29.97 / 25
- 1080i: 59.94 / 50
- 720p: 59.94 / 50 / 29.97 / 25
- Video Output (HD) Interface: 12G-SDI / HDMI 2.0 / Ethernet / USB 3.0
- Optical Zoom: 30x
- Digital Zoom: 12x
- Viewing Angle: 63° (H) 35.4° (V) 72.3° (D)
- Aperture: F1.6 ~ F4.8
- Focal Length: 6.5mm ~ 202mm
- Shutter Speed: 1/1 ~ 1/10,000 sec
- Minimum Object Distance: 1.5m (Wide/Tele)
- Video S/N Ratio: > 50dB
- Minimum Illumination: 0.05 lux (F1.6, 50IRE, 30fps)
- Focus System: Auto / Manual / Smart AF
- Gain Control: Auto / Manual
- White Balance: Auto / Manual
- Exposure Control: Auto / Manual
- WDR: Yes
- 3D NR: Yes
- Image Flip: Yes
- AR/VR Systems: FreeD
- Tally Light: Yes
- Panning Angle: +170° ~ -170°
- Panning Speed: 300°/sec
- Tilting Angle: +90° ~ -30°
- Tilting Speed: 300°/sec
- Preset Positions: 256
- Multiple Video Stream:
- HEVC 4K 59.94fps
- H.264 1080p 59.94fps
- H.264 640x360 29.97fps
- HDMI / 12G-SDI: 2160p59.94
- IP Stream:
- HEVC 4K 59.94fps
- H.264 1080p 59.94fps
- H.264 640x360 29.97fps
- IP Compression: HEVC(H.265) / H.264
- USB Output:
- H.264 4K30fps
- MJPEG 1080p30
- USB Compression: H.264 / MJPEG
- IP Protocol: RTSP / RTMP / RTMPS / MPEG-TS / SRT
- PoE: PoE++ (IEEE802.3bt)
- Audio Input: Line In / MIC In, Phone Jack 3.5mm x1
- Audio Output: Ethernet / 12G-SDI / HDMI 2.0
- Audio Compression Format: G.711
- Control Interface: RS-232 / RS-422 / Ethernet / USB 3.0/ Remote
- Control Protocol: VISCA / VISCAIP / PELCO D / ONVIF / UVC
- DC In: 12V +/- 20%
- Power Consumption:
- PoE: 27.5 W
- DC In: 27 W
- Weight: 6.6lbs (3 kg)
- Dimensions: 9.2" x 7.4" x 7.4" (232 x 188 x 189 mm)
