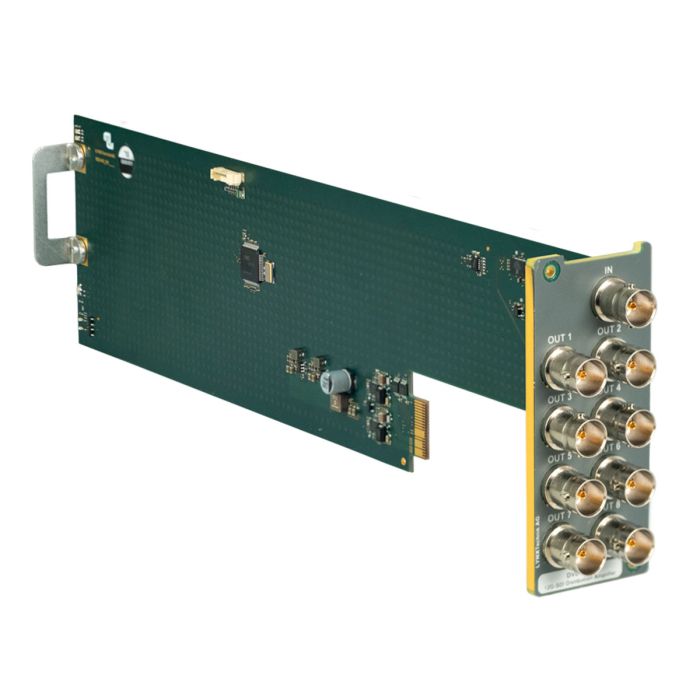

Lynx Technik Series-5000 DVD 5410
12G/3G/HD/SD-SDI Distribution Amplifier (Single 1:8)
SKU: DVD-5410
The DVD 5410 is a low cost fixed 1×8 utility distribution amplifier.
The module auto-detects the input video standard with support for video formats up to 12G-SDI. The module always reclock to its SDI input.
This module is ideally suited for demanding digital multi-format broadcast and professional applications.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The DVD 5410 is a low cost fixed 1×8 utility distribution amplifier.
The module auto-detects the input video standard with support for video formats up to 12G-SDI. The module always reclock to its SDI input.
This module is ideally suited for demanding digital multi-format broadcast and professional applications.
The card module is fully compatible with LynxCentraal. It can be controlled and updated using Windows or MacOS.
- Supports 12G/6G/3G/1.5G/SD-SDI and ASI/DVB Formats
- 1x8 Distribution Mode
- Always Reclocking to SDI Input
- Auto-detect input video standard
- Input Status LED
- Status monitoring and error reporting when used with LYNX control system
- Full SNMP support when used with RCT 5023 controller
- Hot Swappable
Video Formats
- 4K 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- UHD 3840x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30 -- -- -- -- -- -- --
- HD 1920x1080i -- -- -- -- -- -- -- -- -- -- 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30 -- -- -- 50, 59.94, 60
- SD 720x625i -- -- -- -- -- -- -- -- -- -- 50 -- -- --
- SD 720x525i -- -- -- -- -- -- -- -- -- -- -- 59.94 --
Video Input Digital
- 1x 12G-SDI BNC (12G/6G/3G/1.5G/SD-SDI)
- YCbCr 4:4:4, 4:2:2, 4:2:0
- RGB 4:4:4
- 8/10/12-bit
- 3G-SDI Level A or B Dual Link

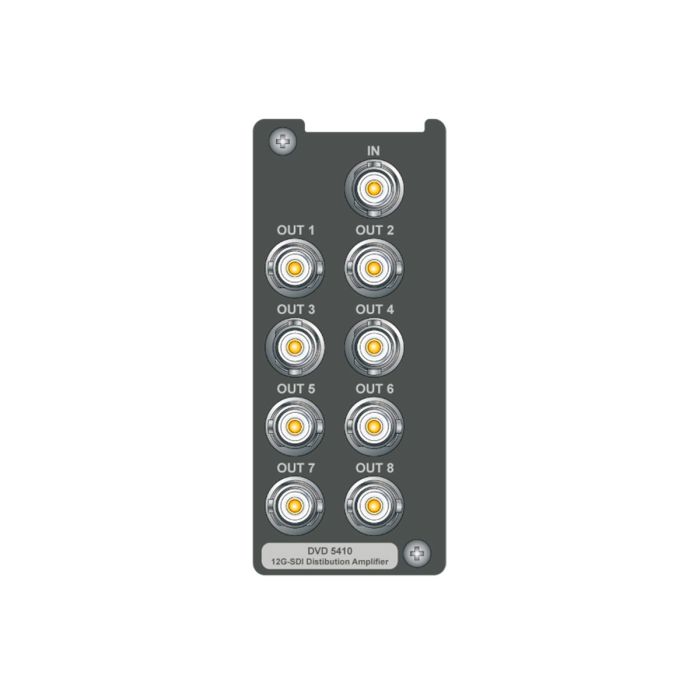

Video Output Digital
- 8x 12G-SDI BNC (12G/6G/3G/1.5G/SD-SDI)
- YCbCr 4:4:4/4:2:2/4:2:0
- RGB 4:4:4
- 8/10/12-bit
- 3G-SDI Level A or B Dual Link
