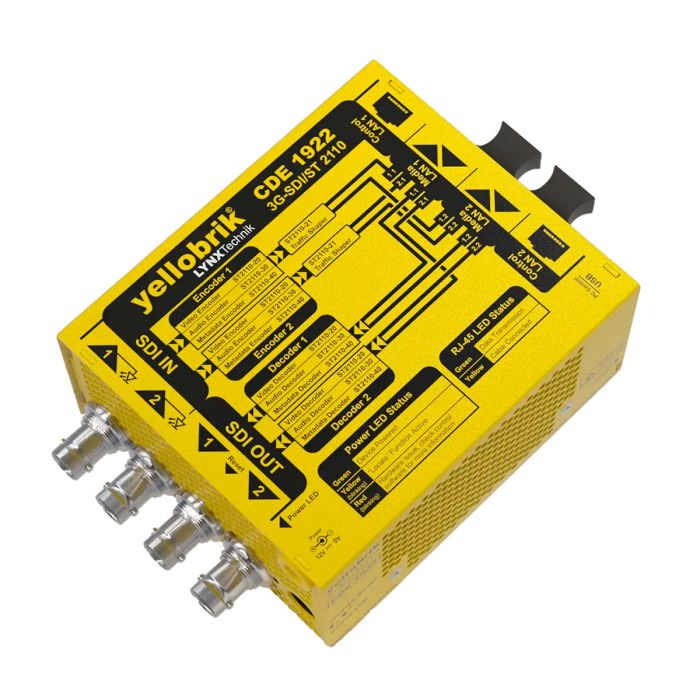

Lynx Technik yellobrik CDE 1922-MM
3G/HD-SDI / ST 2110 Bi-Directional Converter (with 2 x 10Gbe multi-mode LC SFPs)
SKU: CDE-1922-MM
The CDE 1922 is a high performance 3G-SDI to/from IP ST 2110 bridge capable of handling up to four HD video streams simultaneously: 2x 3G-SDI to IP and 2x IP to 3G-SDI.
The converter has 2x ST2110-30 audio encoders and 2x ST2110-30 audio decoders working simultaneously. Each encoder/decoder has a maximum of 8 audio channel (L24, 48kHz, 4 groups) . The CDE 1922 can be equipped with a pair of 10GbE Multi-mode, Single-mode or RJ45 SFPs.
2x OH-TR-10G-LC-MM Included
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The CDE 1922 is a high performance 3G-SDI to/from IP ST 2110 bridge capable of handling up to four HD video streams simultaneously: 2x 3G-SDI to IP and 2x IP to 3G-SDI.
The converter has 2x ST2110-30 audio encoders and 2x ST2110-30 audio decoders working simultaneously. Each encoder/decoder has a maximum of 8 audio channel (L24, 48kHz, 4 groups) . The CDE 1922 can be equipped with a pair of 10GbE Multi-mode, Single-mode or RJ45 SFPs.
The module is suitable for all SMPTE standard signals from 1.5G-SDI to 3G-SDI (SMPTE 292M, 424M) and 10GbE SMPTE 2110. It works with SMPTE ST 2110 uncompressed video, audio, and ancillary data, and provides full link redundancy through ST 2022-7 seamless protection switching.
The CDE 1922 can be managed via its dedicated 1GbE RJ45 control ports, each with a unique MAC address, or via in-band management over the 10GbE Media LAN connections.
Built-in NMOS support for IS-04, IS-05, and IS-08 makes device discovery, registration, and connection management straightforward in IP-based workflows.
The CDE 1922 features a new web-based user interface for streamlined monitoring, and offers full compatibility with yelloGUI and LynxCentraal for advanced remote control, monitoring, and error reporting. Like all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.
- Support 3G/1.5G/SD-SDI Standards
- ST 2110-20 Uncompressed Active Video
- SMPTE ST 291-1 Ancillary Data Support
- Frame Sync to align SDI inputs to ST 2059
- Full redundancy for IP links
- NMOS Capability for Discovery, Registration, Management and Mapping
- Seamless Protection Switching ST 2022-7
- 2x 10GbE Media LAN Transceiver SFP cage
- 2x 1GbE RJ45 Management LAN
Video Formats
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, 50, -- --, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30 -- -- -- --
- HD 1920x1080i -- -- -- -- -- -- -- 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Video Input Digital
- 2x 3G-SDI BNC (3G/1.5G)
- YCbCr 4:2:2
- 10-bit
- 3G-SDI Level A or B Dual Link
Video Output Digital
- 2x 3G-SDI BNC (3G/1.5G)
- YCbCr 4:2:2
- 10-bit
- 3G-SDI Level A or B Dual Link
IP Data Input/Output
- 2x 10GbE Media LAN SFP Cages
- SMPTE ST 2110-20 : Uncompressed Active Video
- SMPTE ST 2022-7: Seamless Protection Switching
- SMPTE ST2110-30: 1-8 Channel PCM Digital Audio
- SMPTE ST2110-31 Raw AES Audio
- SMPTE ST 2110-40: Ancillary Data acc. SMPTE ST 29-1
- SMPTE ST 2110-10: RTP System Timing
- SMPTE ST 2059: Precision Timing
IP Management
- 2x 1GbE RJ-45 built-in connectors for LAN Management. Each port is completely independent with its own MAC address.
Supports in-band management via the 10GbE Media LAN connections. - NMOS Capability for
- IS-04 Discovery and Registration Specification
- IS-05 NMOS Device Connection Management Specification
- IS-08 Audio Channel Mapping
