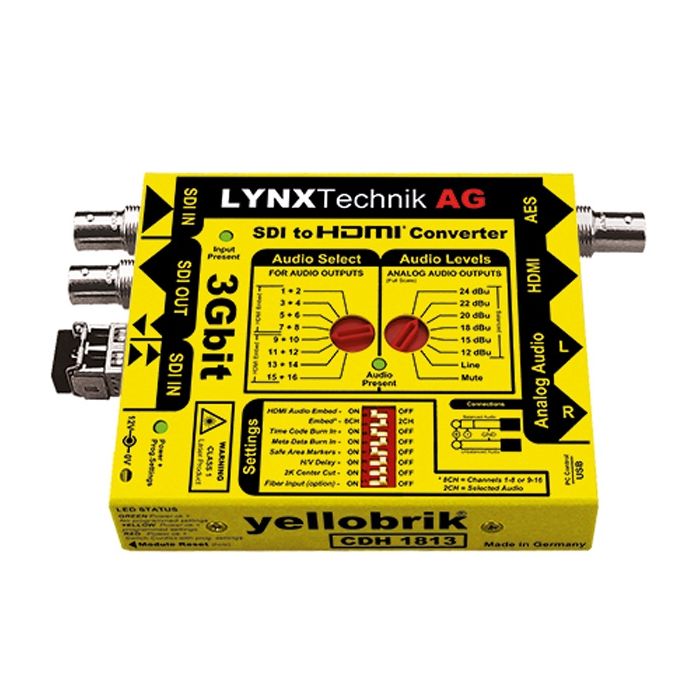

Lynx Technik yellobrik CDH 1813

• Support for SDI video inputs up to 3Gbit/s (1080P)
• 3G SDI Level A and Level B support
• Support for single link 3D formats
• Automatic input standard and format detection
• Fiber input and output options
• HDMI video output with embedded audio
• Analog and AES audio outputs

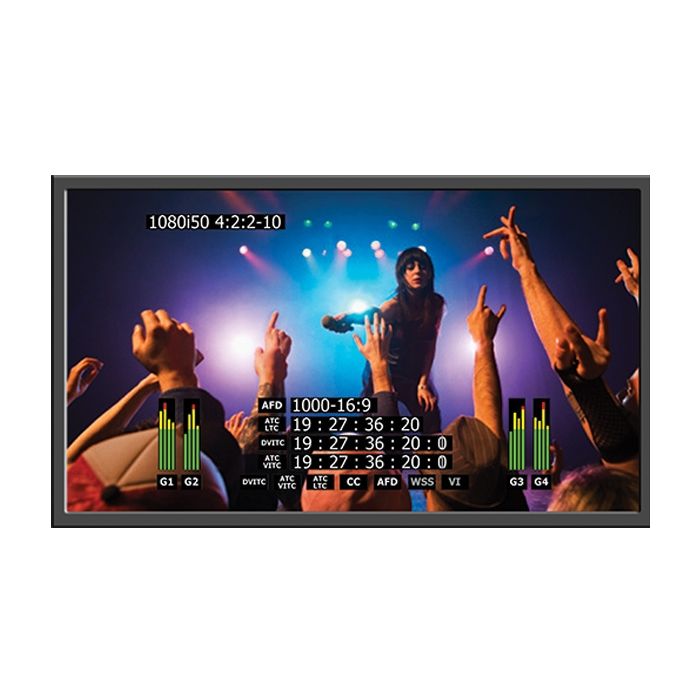

• Selectable timecode burn in
• Metadata burn in
• 16 channel on screen audio meters
• H/V delay and safe area markers
• yelloGUI compatible: Gain access to additional features

SDI Input

• 1 x SDI video on 75 Ohm BNC connector
• SMPTE 424M, SMPTE 292M, SMPTE 259M
• 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D) with image formats 1280 x 720 and 1920 x 1080
• For a detailed list of supported formats please refer to the article in our knowledge base
• ( www.lynx-technik.com > support > tech.support )
• Support for ‘single link’ 3D modes:
• “side by side”, “top-bottom” and “dual stream (SMPTE ST-423-2)”
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
• Automatic cable EQ (Belden 1694A cable)
• 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s

Fiber Input

• 1 x fiber optic SDI input. SMPTE 297M - 2006 (Optional- see fiber options table)

SDI Output

• 1 x reclocked SDI video output on 75 Ohm BNC connector
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz

Fiber Output

• 1 x reclocked fiber optic SDI output. SMPTE 297M - 2006 (Optional- see fiber options table)

HDMI Output

• 10 bit HDMI 1.4a support including 3D, deep color and embedded audio Type A connector. 3D modes supported:
• “side by side” + “top and bottom” + “frame packing”
• 24bit (3 X 8bit) and 30bit (3 x 10bit) deep color (R,G,B / Y,Cr,Cb / X,Y,Z)
• 2 or 8 channel audio embedding (selectable)

AES Output

• AES3id on 75 Ohm BNC, 2 channels (selectable)

Audio Output

• Left and right analog audio using 1/4 inch jack sockets (phono sockets)
• Balanced mode with 24, 22, 20, 18, 15, 12dBu full scale (selectable)
• Unbalanced mode with (line level) at -10 dBv
• 1/4 inch Jack plug (phono) to RCA connection adapters supplied

USB

• Standard USB port for yelloGUI interface and firmware updates (Mini Type “B” plug)

Power

• +12VDC @ 3.7W nominal - ( supports 10 - 14VDC input range )

Physical

• Size: 138mm x 90mm x 22mm (5.13” x 3.54” x 0.86”) including connectors Weight: 230g (8.11oz)

Ambient

• 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)

• Module
• AC power supply
• RCA adapters
• HDMI + USB cable
