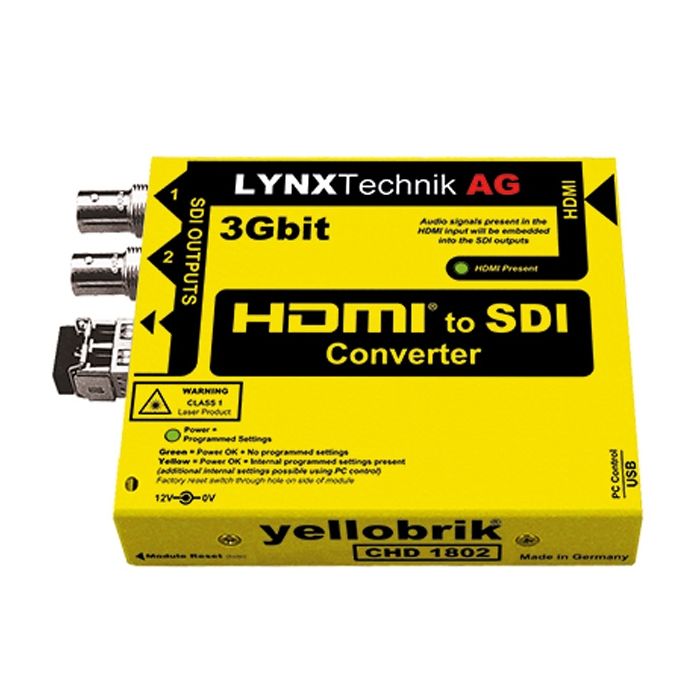

Lynx Technik yellobrik CHD 1802
HDMI to SDI Converter
MPN: CHD-1802 SKU: CHD-1802
The CHD 1802 is a compact HDMI to SDI converter It is an ideal solution for any application which requires a broadcast quality SDI signal derived from an external HDMI source. Any audio present in the HDMI stream will be embedded into the corresponding channels on the SDI output.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The CHD 1802 is a compact HDMI to SDI converter It is an ideal solution for any application which requires a broadcast quality SDI signal derived from an external HDMI source. Any audio present in the HDMI stream will be embedded into the corresponding channels on the SDI output.
The module is also compatible with the yelloGUI software package, which provides access to a host of additional internal settings Technical Specifications.
An SDI fiber output is also provided with a variety of plug in SFP options available.
Note: For legal reasons, HDMI conversion products from LYNX Technik AG are designed not to capture, convert or transmit video or audio from HDCP copy-protected sources (e.g. Satellite receivers, Cable receivers, Blu Ray Players etc.)
- Supports SD/HD/3G -SDI formats
- 3D support
- 2 x SDI outputs
- Optional SDI fiber output
- HDMI embedded audio passed transparently
- HDMI present LED indication
- yelloGUI compatible to access additional internal settings
HDMI Input
- 3D compatible input using type A connector
- For a detailed list of supported formats please refer to the article in our knowledge base ( www.lynx-technik.com > support > tech.support )
- Up to 8 channels embedded audio in HDMI is passed transparently
SDI Outputs
- 2 x SDI video, 75 Ohm BNC. (both have the same signal - NOT dual link) SMPTE 424M, SMPTE 292M, SMPTE 259M
- 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D) with image formats 1280 x 720 and 1920 x 1080
- For a detailed list of supported formats please refer to the article in our knowledge base
- ( www.lynx-technik.com > support > tech.support )
- Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
Fiber Output
- Optional plug in SFP for optical SDI output (see fiber options table)
Power
- +12VDC @ 4W nominal - ( supports 10 - 14VDC input range )
Physical
- Size: 123mm x 90mm x 22mm (4.84” x 3.54” x 0.86”) - including connectors Weight: 175g (6.17oz)
Ambient
- 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
- Module
- AC power supply
- HDMI + USB cable
