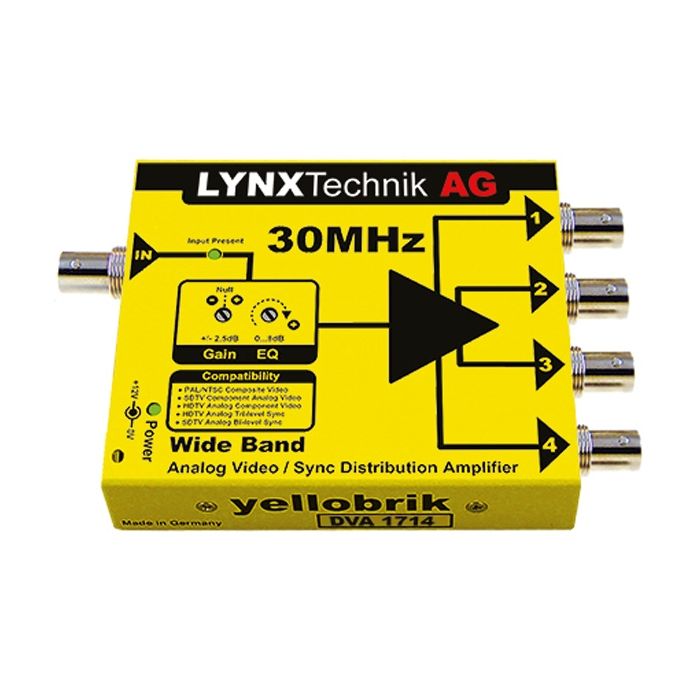

Lynx Technik yellobrik DVA-1714
Wide Band 1>4 Analog Video/Sync Distribution Amplifier
MPN: DVA-1714 SKU: DVA-1714
The DVA 1714 is a compact general purpose wide band analog distribution amplifier suitable for analog SDTV and HDTV video signals.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The DVA 1714 is a compact general purpose wide band analog distribution amplifier suitable for analog SDTV and HDTV video signals.
The module can also be used for analog SDTV Bi-level sync pulses, black reference and analog HDTV Tri-level sync pulses.
Features include an Input clamp with user adjustable gain and cable equalization.
LED indications are provided for signal presence and power
- 1 input and 4 outputs
- Wide band - 30MHz
- Adjustable gain and EQ
- Input Clamp
- Input present LED indication
- Suitable for analog SDTV/HDTV video or Sync signals
Input
- 1 x 75 Ohm BNC connector
- Compatible Input Sources
- SDTV Composite video (NTSC/PAL)
- SDTV Component Analog Video
- HDTV Component Analog Video
- SDTV Bi-level sync (or black burst)
- HDTV Tri-Level Sync
- Return loss > 31dB to 30MHz
- Input Gain adjustment range +/- 2.5dB Input Cable Equalization Adjustment 0 - 8dB Input clamp
- Input presence detection (LED)
Outputs
- 4 x Analog Video / Sync Outputs 75 Ohm BNC connectors
- Return loss >22dB to 30MHz
Performance
- Frequency Response:
- -3dB @ 30MHz (EQ min) -3dB @ 37MHz (EQ max)
- +/- 0.1dB to 10MHz
- Signal to noise >60dB (RMS)
Power
- +12VDC @ 1.3W nominal - ( supports 8 - 24VDC input range )
Physical
- Size: 138mm x 90mm x 22mm (5.43” x 3.54” x 0.86”) - including connectors
- Weight: 220g (7.8oz)
Ambient
- 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
- Module
- AC Power supply
