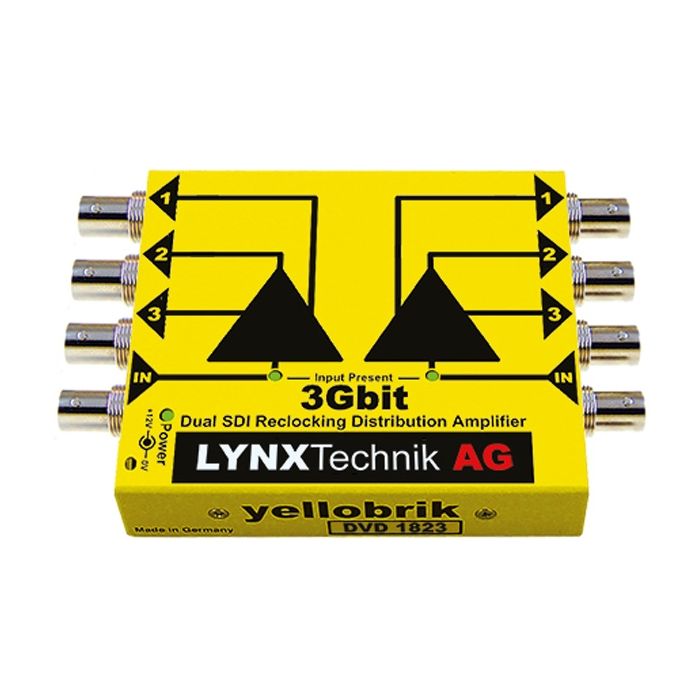

Lynx Technik yellobrik DVD 1823

• Dual channel
• 1 input and 3 outputs per channel
• Suitable for SDI video up to 3Gbit/s (1080p60)
• Level A and Level B support (all formats) and DVB-ASI
• Reclocking
• Auto-detect input format
• Input present LED indication for each channel

Inputs

• 2 x SDI - 75 Ohm BNC connector
• SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• Multi-standard operation from 270Mbit/s to 3Gbit/s
• Multi-rate reclocking
• Input present LED indication for each channel
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
• Automatic cable EQ (Belden 1694A cable)
• 320m @ 270Mbit/s, 160m @ 1.5Gbit/s, 120m @ 3Gbit/s

Outputs

• 3 x multi-rate reclocked SDI outputs per channel
• SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
• 75 Ohm BNC connectors
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
• Alignment Jitter < 0.2 UI @ 270Mbit/s, < 0.2 UI @ 1.5Gbit/s, < 0.3 UI @ 3Gbit/s
• Timing Jitter < 0.2 UI @ 270Mbit/s, < 1.0 UI @ 1.5Gbit/s,
• < 2.0 UI @ 3Gbit/s

Power

• +12VDC @ 2.1W nominal (supports 7 - 16V input range)

Physical

• Size: 138mm x 90mm x 22mm (5.43” x 3.54” x 0.86”) including connectors
• Weight: 240g (8.46oz)

Ambient

• 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
