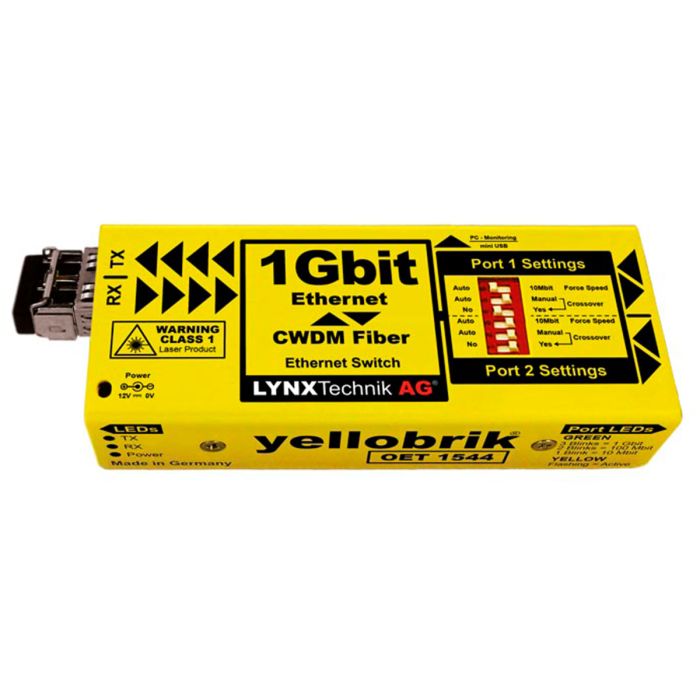

Lynx Technik yellobrik OET 1544
1GbE to Fiber Transceiver (Module only) - CWDM (TR) SFP required
SKU: OET 1514-CW
The OET 1544 is a compact CWDM compatible ethernet 3 port switch, designed to extend the reach of electrical ethernet signals over long distances using a constant (fixed) high speed 1 Gbit/s optical transceiver speed.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The OET 1544 is a compact CWDM compatible ethernet 3 port switch, designed to extend the reach of electrical ethernet signals over long distances using a constant (fixed) high speed 1 Gbit/s optical transceiver speed.
18 selectable CWDM wavelengths are provided to enable the module to be used in a multiplexed CWDM environment. When paired with another OET 1544 at the receiving end (using two fiber links) you have a cost-effective Ethernet extender system for distances up to 80km* - providing a stable, high speed 1Gbit/s error free optical connection between locations.
The OET 1544 has two standard RJ45 electrical ethernet ports plus fiber I/O and functions as a 3 port ethernet switch. For legacy system use; each electrical ethernet port can be set for automatic speed detection (10/100/1000) or forced to 10 Mbit/s, and each port can use auto crossover detection or be forced manually if needed. These functions are available using the dip switch.
- Supports standard ethernet inputs up to 1 Gbit/s
- 3 port ethernet switch (1 fiber, 2 electrical)
- Auto (10/100/1000) port speed detection
- Manually force 10Mbit/s electrical speed (if needed)
- Fiber transceiver speed always 1 Gbit/s
- Auto or manual electrical crossover selection
- Distances up to 80km(49.7 miles)* over fiber
- 18 CWDM wavelength selections (ITU-T G.694.2)
- Ethernet:
- 2 x Ethernet ports, RJ 45 Connectors.
- 10 BaseTUTP category 3,4 or 5 cable up to 328ft/100m (2 pairs)
- 100 BaseTXUTP category 5 cable up to 328ft/100m (2 pairs)
- 1000 BaseTXUTP category 5 cable up to 328ft/100m (4 pairs)
- Auto detect bit rate (10/100/1000), or force to 10Mbit for each port (selectable)
- Automatic crossover detection or force manually for each port (selectable)
- Port speed / activity LED indication (next to Ethernet port)
- Fiber Optic:
- 1 x fiber optic input
(Range 1270-1610nm, Sensitivity -3dBm to -23dBm) - 1 x fiber optic output
CWDM (ITU-T G.694.2) 18 selectable wavelengths Duplex (Single mode) using LC/PC Connections - IEEE 802.3z
- (1000BASE-X Gbit/s Ethernet over Fiber at 1 Gbit/s (125 MB/s)
- TX and RX active LEDs on side of module
- Max. distance approx. 80km* (49.7 miles - Singlemode)
- 1 x fiber optic input
- Power: +12V DC @ 1.7W nominal without SFP ( supports 7 - 22VDC input range )
- Physical: Size: 120mm x 42mm x 22mm (4.73” x 1.65” x 0.86”) including connectors Weight: 125g (4.4oz)
- Ambient: 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
- Model #: OET 1544 ( EAN# 4250479329454 )
- Includes: Module, AC power supply
