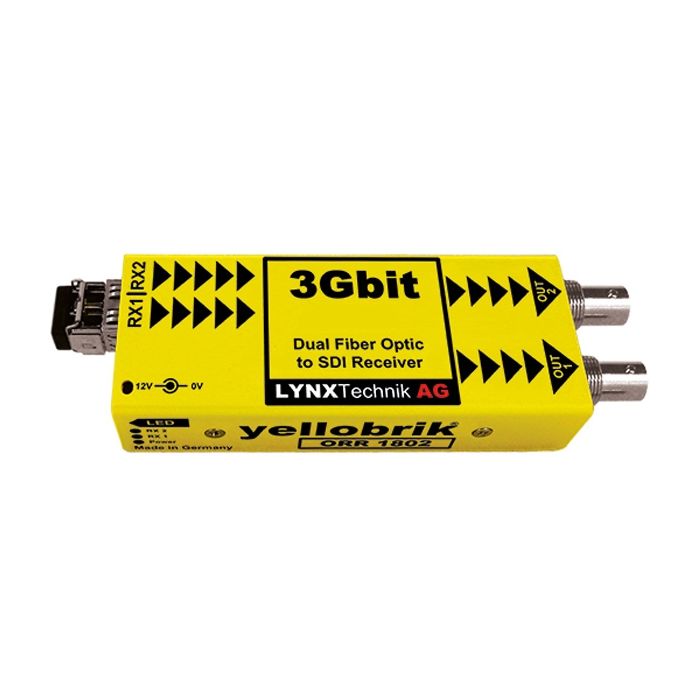

Lynx Technik yellobrik ORR-1802
Dual 3Gbit Fiber Optic to SDI Receiver
MPN: ORR-1802 SKU: ORR-1802
The ORR 1802 is a compact dual channel fiber optical to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The ORR 1802 is a compact dual channel fiber optical to SDI receiver designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.
When paired with a SDI optical transmitter (e.g. yellobrik OTT 1812, OTX 1812, OTX 1842 etc) you have a very cost effective optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.
The ORR1802 has two completely independent channels and each will auto-detect and re-clock any 270Mbit / 1.48Gbit and 2.97Gbit SDI fiber source prior to electrical conversion. The module is fully compatible with 3Gbit Level A and Level B formats.
- Dual channel
- Supports SDI video inputs up to 3Gbit/s (1080p60)
- 3Gbit Level A and Level B support (all formats)
- Auto reclocking 270Mbit / 1.48Gbit / 2.97Gbit
- Error free optical reception
- 1260nm to 1620nm wavelength input range
- Duplex LC/PC singlemode optical connection
- Supports hot swapping and hot plugging
Fiber Inputs
- 2 x fiber optic Inputs (one for each channel) Duplex (single mode) using LC/PC Connections
- SMPTE 297M - 2006
- Hot pluggable
- Input range (wavelength) 1260nm to 1620nm
- RX sensitivity -3dBm to -16dBm
- RX active LED on side of module
- (SMF) Singlemode fiber
SDI Outputs
- 2 x SDI video on 75 Ohm BNC connector (two independent channels)
- SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Multi-standard operation from 270Mbit/s to 3Gbit/s
- Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
Power
- +12VDC @ 2.2W nominal - ( supports 7 - 16VDC input range )
Physical
- Size: 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”) including connectors
- Weight: 125g (4.4oz)
Ambient
- 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
- Module
- AC power supply
