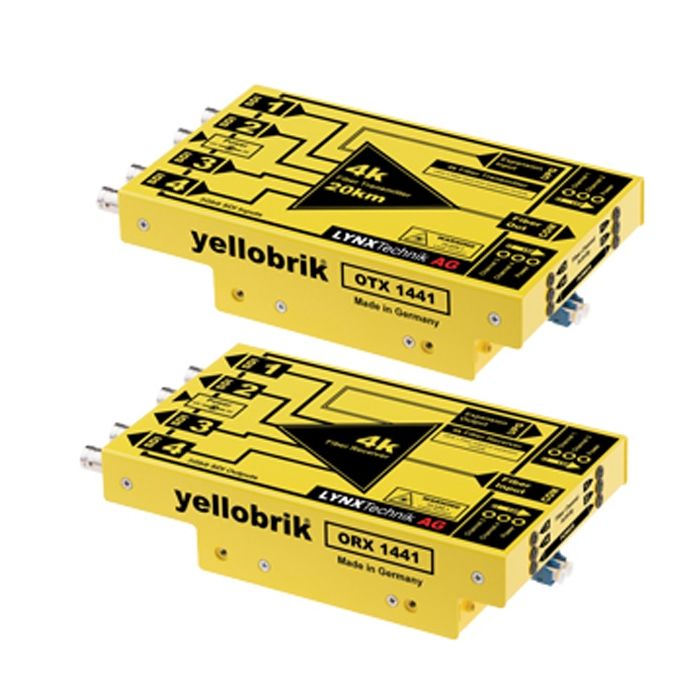

Lynx Technik yellobrik OTR-1441
4K Fiber Transmission System
MPN: OTR-1441 SKU: OTR-1441
The OTR 1441 is a self contained fiber transmission kit for the transport of 4 x SDI signals (12G uncompressed) over a single fiber link for distances up to 20km (12miles).
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The OTR 1441 is a self contained fiber transmission kit for the transport of 4 x SDI signals (12G uncompressed) over a single fiber link for distances up to 20km (12miles). The kit includes the fiber transmitter, fiber receiver and power supplies. This is an ideal solution for the transmission of multiple uncompressed SDI streams over long distances with zero losses.
Each SDI channel is fully independent. For 4K use the signal is split over 4 separate 3G SDI links (12G) and supports 4K resolution at 60fps. The system can also be used for any combination of SDI signals each with a different format and bit-rate if required. Each channel will automatically detect and reclock SDI bit rates of 270Mbit, 1.48Gbit and 2.97Gbit.
LED Indicators are provided for channel presence and power. An optional 19” rack mount tray is available which can accommodate up to 4 modules.
- Support for 4 independent 3G/HD/SD-SDI channels
- Transport 4K (uncompressed) up to 20km (12 miles)
- Each channel supports resolutions up to 1080p/60Hz
- Each channel individually reclocked
- Embedded audio / metadata support
- Integrated expansion port for future use
- LED indicators for channel activity and power
- Kit includes transmitter, receiver and power supplies
- Optional 19” Rack tray to mount (max) 4 modules
SDI I/O
- 4 x multi-format 3G/HD/SD-SDI inputs [OTX 1441]
- 4 x multi-format 3G/HD/SD-SDI outputs [ORX 1441]
- 75 Ω BNC connections
- SMPTE 259M-2008 , SMPTE 292-1:2012, SMPTE 292-2:2011 SMPTE 424M-2006 , DVB ASI
- Multi-standard / Multi-format operation auto-detect.
- Multi-rate reclocking: 270Mbit / 1.5Gbit / 3Gbit
- Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
- Automatic cable EQ (Belden 1694A cable)
- 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s
Fiber I/O
- 1 x Fiber optic I/O port (COM port)
- 1 x Fiber optic expansion port (UPG port) LC/PC connections - Single Mode
- SMPTE 297M - 2006
- Internal CWDM Multiplexing
- Wavelengths : 1270nm, 1290nm, 1310nm, 1330nm Optical budget: 10.6dB
- Maximum distance [typical]: 20km (12 miles)
- Fiber activity LEDs for each channel
Power
- +12VDC nominal. ORX1441 = 4.4W, OTX 1441 = 5.4W
- Supports external power input from 9 - 17 VDC
- 2 x Power LEDs provided
Physical
- 170 x 99.7 x 40.5mm (6.7” x 3.9” x 1.6) - (each Module)
- Weight: 600g (21.1oz) net - (each module)
Ambient
- 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
- OTX 1441 - 4K Fiber Transmitter module
- ORX 1441 - 4K Fiber Receiver module
- 2 x 12VDC [brick] power supplies
