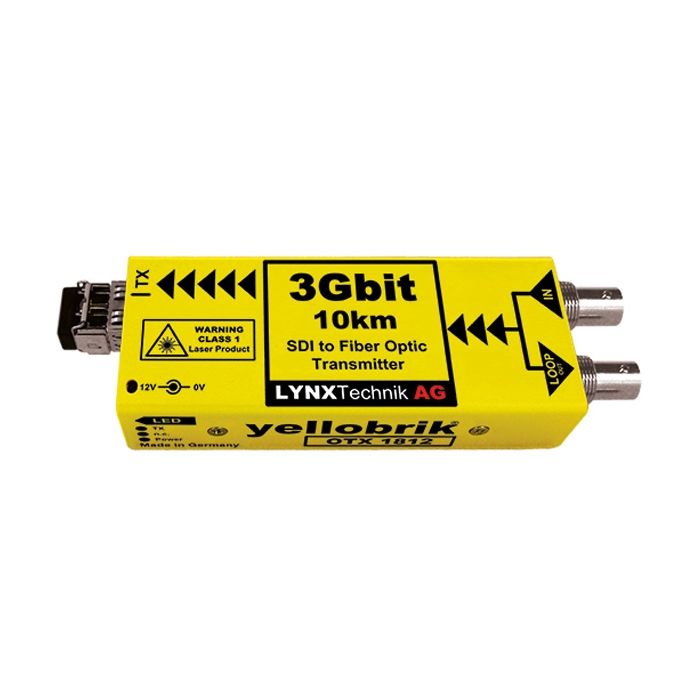

Lynx Technik yellobrik OTX 1812 SC
3GBit SDI to Fiber Optic Transmitter - 10km (SC Singlemode)
MPN: OTX-1812-SC SKU: OTX-1812-SC
The OTX 1812 is a compact SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The OTX 1812 is a compact SDI to fiber optic transmitter designed to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.
When paired with the fiber optic to SDI receiver (e.g. yellobrik ORX 1802) you have a very cost effective optical transmission / receiver system for signals up to 1080p60 (3Gbit/s), while preserving full uncompressed quality.
The OTX 1812 provides a looping SDI input and support for LC, ST or SC singlemode fiber connections as well as anLC version suitable for multimode fiber.
The OTX 1812 will auto-detect and re-clock any 270Mbit / 1.5Gbit and 3Gbit SDI source prior to optical transmission. The module is fully compatible with 3Gbit Level A and Level B formats.
- Supports SDI video inputs up to 3Gbit/s (1080p60)
- 3Gbit Level A and Level B support (all formats)
- Auto reclocking 270Mbit / 1.5Gbit / 2.97Gbit
- Error free optical transmission
- Reclocked SDI loop out connection
- Versions for LC, ST or SC fiber connections
- Multimode version available
- Up to 10km (6.2 miles) @ 3Gbit/s (singlemode)
- Up to 300m (984 feet) @ 3Gbit/s (multimode)
- Supports hot swapping and hot plugging
SDI Input
- 1 x SDI video input and 1 x SDI reclocked loop output 75 Ohm BNC connectors
- SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
- Multi-standard operation from 270Mbit/s to 3Gbit/s
- Multi-rate reclocking : 270Mbit/s - 1.5Gbit/s - 3Gbit/s
- Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
- Automatic cable EQ (Belden 1694A cable)
- 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s
Fiber out Singlemode
- 1 x fiber optic singlemode output LC, ST or SC connection
- SMPTE 297M - 2006
- Wavelength 1310nm, Optical power -5dBm
- TX active LED on side of module
- Max. distance approx. 10km (6.2 miles) @ 3Gbit/s (Singlemode)
Fiber out Multimode
- 1 x fiber optic multimode output. LC connection
- SMPTE 297M - 2006
- Wavelength 850nm, Optical power -5dBm
- TX active LED on side of module
- Max. distance approx. 300m (984feet) @ 3Gbit/s (Multimode)
Power
- +12VDC @ 1.7W nominal - ( supports 7 - 16VDC input range )
Physical
- Size: 140mm x 42mm x 22mm (5.51” x 1.65” x 0.86”) including connectors
- Weight: 125g (4.4oz)
Ambient
- 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
- Module
- AC power supply
