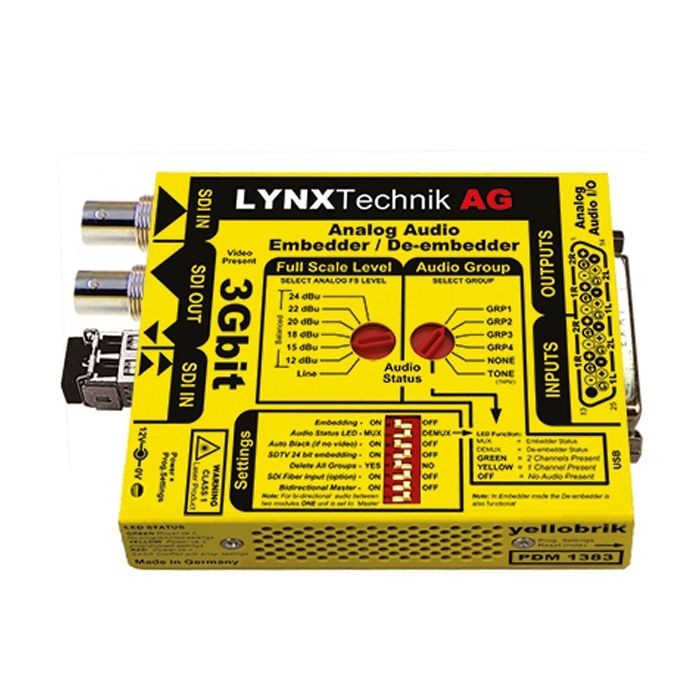

Lynx Technik yellobrik PDM 1383
Analog Audio Embedder / De-embedder
MPN: PDM-1383 SKU: PDM-1383
The PDM 1383 is a versatile analog audio embedder and de-embedder designed for a wide range of SDI video formats up to 3Gbit. Analog audio I/O is connected using a 25 pin SubD connector. (screw terminal adapter provided).
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The PDM 1383 is a versatile analog audio embedder and de-embedder designed for a wide range of SDI video formats up to 3Gbit. Analog audio I/O is connected using a 25 pin SubD connector. (screw terminal adapter provided).
Audio groups are selected using the rotary switches, and its possible to embed and de-embed additional audio groups by cascading modules together. Simultaneous embedding and de-embedding means the module will de-embed and output the audio from the selected audio group before overwriting with new audio (if required).
The “auto black” mode uses a black video frame if no SDI input is present. This allows the module to embed audio even when no video source is available. This mode is useful if the module is being used in an “audio only” application.
A 1 kHz test tone generator is included for audio testing purposes.
- Simultaneous embedding and de-embedding
- 3G SDI Level A and Level B support
- SDI video formats up to 3Gbit (1080p60)
- 4 x Analog audio inputs / outputs with selectable audio groups
- Optional Fiber I/O
- Integrated 1 kHz test tone generator
- Bidirectional audio transport mode possible
- Auto black if no video present
- Selectable SDTV 24 bit mode
- Video and Audio present LED indicators
- yelloGUI compatible to access additional internal settings
SDI Input
- 1 x SDI video on 75 Ohm BNC connector
- SMPTE 424M, SMPTE 292M, SMPTE 259M
- 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D) with image formats 1280 x 720 and 1920 x 1080
- For a detailed list of supported formats please refer to the article in our knowledge base
- ( www.lynx-technik.com > support > tech.support )
- Multi-standard operation from 270Mbit/s to 3Gbit/s
- SDTV (525/625)
- 720p and 1080p (23.98/24/25/29.97/30/50/59.94/60 Hz) 1080psf (23.98/24/25/29.97/30 Hz)
- 1080i (50/59.94/60 Hz)
- Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
- Automatic cable EQ (Belden 1694A cable)
- 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 120m @ 3Gbit/s
Fiber I/O
- (optional) 1 x fiber optic input and output (see table)
- SMPTE 297M - 2006
SDI Output
- 1 x SDI video on 75 Ohm BNC connector
- SMPTE 424M, SMPTE 292M, SMPTE 259M
- For a detailed list of supported formats please refer to the article in our knowledge base ( www.lynx-technik.com > support > tech.support )
- Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz
Audio Inputs
- 4 x analog audio inputs on 25 pin SubD Connector (10K Ohm)
- AES group selection provided via rotary switch
Audio Outputs
- 4 x analog audio outputs on 25 pin SubD Connector (150 Ohm)
- AES group selection provided via rotary switch
Power
- +12VDC @ 4.8W nominal - ( supports 8 - 14VDC input range )
Physical
- Size: 128mm x 90mm x 22mm (5.04” x 3.54” x 0.86”) including connectors
- Weight: 200g (7.05oz)
Ambient
- 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
- Module
- AC power supply
- SubD adapter PCB
