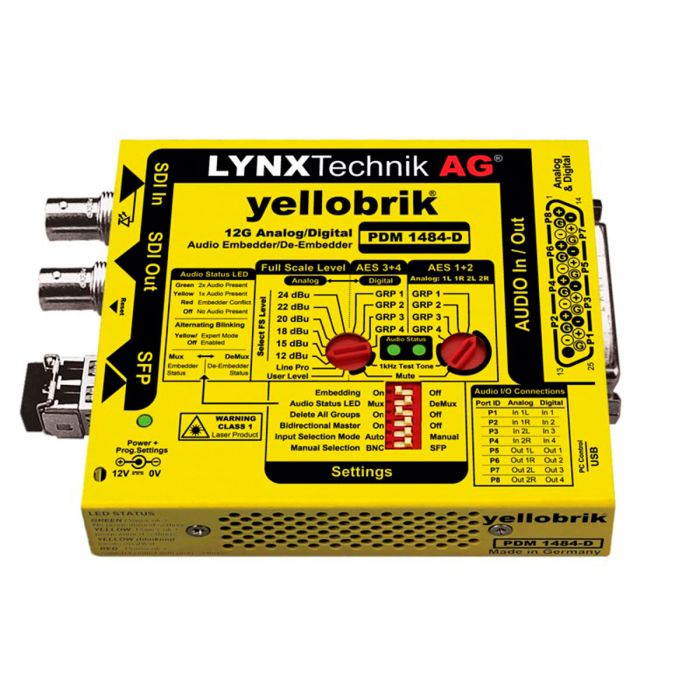

Lynx Technik yellobrik PDM 1484 D
12G-SDI AES and Analog Audio Embedder/De-Embedder (110Ω balanced AES/Analog)
SKU: PDM-1484D
The PDM 1484 D is a versatile 12G-SDI AES audio Embedder and De-Embedder. It supports balanced AES/analog audio inputs and outputs using a 25 pin D-Sub connector. It supports 12G/6G/3G/1.5G/SD-SDI Video Formats.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The PDM 1484 D is a versatile 12G-SDI AES audio Embedder and De-Embedder. It supports balanced AES/analog audio inputs and outputs using a 25 pin D-Sub connector.
Audio groups are selected using the two rotary switches, it is possible to embed and de-embed additional groups by cascading modules together. Simultaneous embedding and de-embedding means the module de-embeds and output the audio from the selected audio group before overwriting the group with a new audio source. The module automatically detects audio formats and will deactivate the sample rate converters to preserve encoded bit streams such as Dolby E.
The “auto black” mode uses a black video frame when no SDI input is present. This allows the module to embed audio even when no video source is available. This mode is useful for “audio only” application.
A 1kHz test tone generator is included for audio testing purposes.
The 12G-SDI fiber output can be used with a wide variety of plug-in SFP options.
The module is fully compatible with yelloGUI and LynxCentraal. It can be configured, controlled and updated using Windows or MacOS. Like all yellobrik modules, it is compatible with the RFR 1200 rack frame, which provides power redundancy.
- Supports 12G/6G/3G/1.5G/SD-SDI Video Formats
- Up to 4K YCbCr/RGB 4:4:4
- Simultaneous Embedding and De-Embedding
- Bi-Directional Audio Transport Mode
- 4x AES/Analog I/O with selectable Audio Groups
- Integrated 1 kHz Test Tone Generator
- Automatic PCM/Encoded Audio Detection
- Auto black on missing input feature
- Selectable SDTV 24 bit mode
- Video and Audio Status LED
Video Formats
- 4K 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- UHD 3840x2160p 23.98, 24, 25, 29.97, 30, ----- -- 50, 59.94, 60
- 2K 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD 1920x1080p 23.98, 24, 25, 29.97, 30, ----- -- 50, 59.94, 60
- HD 1920x1080PsF 23.98, 24, 25, 29.97, 30 ----- -- -- ----- --
- HD 1920x1080i ----- -- -- ----- -- ----- -- 50, 59.94, 60
- HD 1280x720p 23.98, 24, 25, 29.97, 30, ----- -- 50, 59.94, 60
- SD 720x625i ----- -- -- ----- -- ----- -- 50 ----- --
- SD 720x525i ----- -- -- ----- -- ----- -- -- 59.94 --
Video Input Digital
- 1x 12G-SDI BNC (12G/6G/3G/1.5G-SDI)
- YCbCr /RGB 4:4:4 10, 12-bit
- YCbCr 4:2:2 10-bit
- 3G-SDI Level A or B Dual Link
Video Output Digital
- 1x 12G-SDI BNC (12G/6G/3G/1.5G-SDI)
- YCbCr/RGB 4:4:4 10, 12-bit
- YCbCr 4:2:2 10-bit
- 3G-SDI Level A or B Dual Link
Audio I/O Digital
- 4x AES3 balanced inputs on 25 pin D-sub Connector
- 4x AES3 balanced outputs on 25 pin D-sub Connector
- AES group selection provided via rotary switch
Audio I/O Analog
- 4x Analog audio inputs on 25 pin D-sub Connector
- 4x Analog audio outputs on 25 pin D-sub Connector
Fiber I/O
- Optional plug-in SFP for optical SDI input/output
- 12G/3G-SDI
- Simplex Receiver, Simplex Transmitter or Duplex Transceiver
