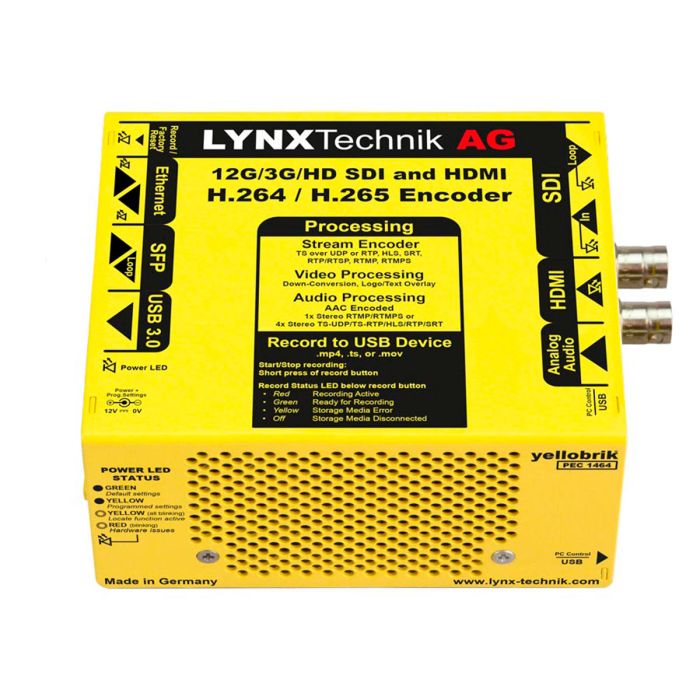

Lynx Technik yellobrik PEC 1464 H.265 Streamer and Recorder

12G/3G/HD SDI and HDMI H.264/H2.65 Encoder

SKU: PEC-1464

$2,170.00

The PEC 1464 is a versatile, compact H.264/H.265 streamer and recorder designed for a wide range of applications in the broadcast, film and pro AV industry. The module can take a 12G-SDI or HDMI source then stream and record it simultaneously.

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 1-2 Days

The PEC 1464 is a versatile, compact H.264/H.265 streamer and recorder designed for a wide range of applications in the broadcast, film and pro AV industry. The module can take a 12G-SDI or HDMI source then stream and record it simultaneously.
Two channels of audio are de-embedded from the video input. In addition, the PEC 1464 has a line audio input and either one of these audio sources can be used for the streamer and/or recorder.
Support for real time logo insertion and advanced text overlays on the video signal with control over size and text position. A custom image or color bars can be displayed when the video input is lost or missing (transmission fallback).
The PEC 1464 supports a wide range of streaming standards as well as unicast and multicast operations. A mobile friendly Web UI allows for a simple configuration from a PC, Mac, tablet or smartphone.
The PEC 1464 is compatible with LynxCentraal for remote configuration and status monitoring. This is particularly useful when managing several Lynx Technik devices.



Note: For legal reasons, HDMI capture devices from LYNX Technik AG are designed not to capture, convert or transmit video or audio from HDCP copy-protected sources (e.g. Satellite receivers, Cable receivers, etc.)

  • HDMI and 12G-SDI UHD video input
  • H.264 and H.265 encoding
  • Stream live events or broadcasts to a content delivery network while creating a backup recording for archive.
  • Stream to YouTube, Facebook, Twitch, and Rumble thanks to a wide range of supported protocols.

Video Inputs Video Formats

  • 1 x 75 Ohm BNC SDI input;
  • 1 x HDMI 2.0b, Type A connector

Video Formats

  • 12G -SDI (SMPTE 2082): 3840 x 2160p  50 / 59.94 / 60
  • 6G-SDI (SMPTE 2081): 3840 x 2160p  25 / 29.97 / 30

SDI

  • 3G-SDI (SMPTE 424M): 1920 x 1080p  50 / 59.94 / 60
  • 1.5G-SDI:(SMPTE 292M): 1920 x 1080p  25 / 29.97 / 30
                                               1920 x 1080i   50 / 59.94 / 60
                                               1280 x 720p   50 / 59.94 / 60

HDMI SDI

  • UHD: 3840 x 2160p  25 / 29.97 / 30 / 50 / 59.94 / 60
  • HD: 1920 x 1080p  25 / 29.94 / 30 / 50 / 59.94 / 60
            1920 x 1080i  50 / 59.94 / 60
            1280 x 720p   50 / 59.94 / 60



  • Color Precision: YCbCr 4:2:2 10-bit
  • Video Encoder
    • H.265 according to MPEG-H Part 2 (HEVC): Main, Main 10, Main 4:2:2
    • H.264 according to MPEG-4 Part 10 (AVC): Baseline, Main, High, High 10, High 4:2:2

Video Processing

  • Downscaling
  • Frame Rate Down Conversion
  • Text Overlay
  • Logo Inserter (JPEG RGB, PNG24, PNG8, TIFF, static GIF, BMP)
  • Transmission Fallback Option: Test Pattern or Custom Image (png, jpeg)

Audio I/O

  • Input: 8 Channel embedded SDI Audio Input
  • Unbalanced analog line audio input - 3.5mm stereo jack
  • Output: Streaming Protocol dependent:
    • RTMP , RTMPS: 1 Stereo Channel
    • TS-UDP , TS-RTP , HLS , SRT, RTSP: 4 Stereo Channels

Audio Processing

  • Processing Options: Channel Mapping, Gain, Mute, Sample Rate, Bitrate
  • Audio Loss Reply Fallback Option: Mute, Test-Tone


 Protocols

  • TS over UDP, RTP
  • HLS
    RTP/RTSP
  • SRT Listener, Caller, and Rendezvous
    RTMP/RTMPS

Recording

  • 1x USB 3.0 Female Type “A” Connector
    (Supported formatting: FAT32, exFAT, vFAT, Ext2, Ext3, Ext4)
  • Output Container:
    .mp4 , .ts , .mov (Max. recoding time for .mov and .mp4: 4 hours)

Network

  • 10/100/1000 Ethernet (RJ-45)

Power

  • +12V DC @ 15W (excl. SFP) nominal - (supports 10 - 24VDC input range)

Physical

  • Size: 124mm x 90mm x 50mm (4.88” x 3.54” x 1.9685”) incl. connectors
  • Weight: 230g (8.11oz)

Ambient

  • 0 - 45 °C (32 - 113 °F) 90% Humidity (non-condensing)

Model #

  • PEC 1464 - (EAN# 4250479329492)

Includes

  • Module, AC power supply, Mini-USB cable, ethernet cable
