Lynx Technik yellobrik PMV 1841
3G/HD/SD Quad Split Multiviewer
MPN: PMV-1841 SKU: PMV-1841

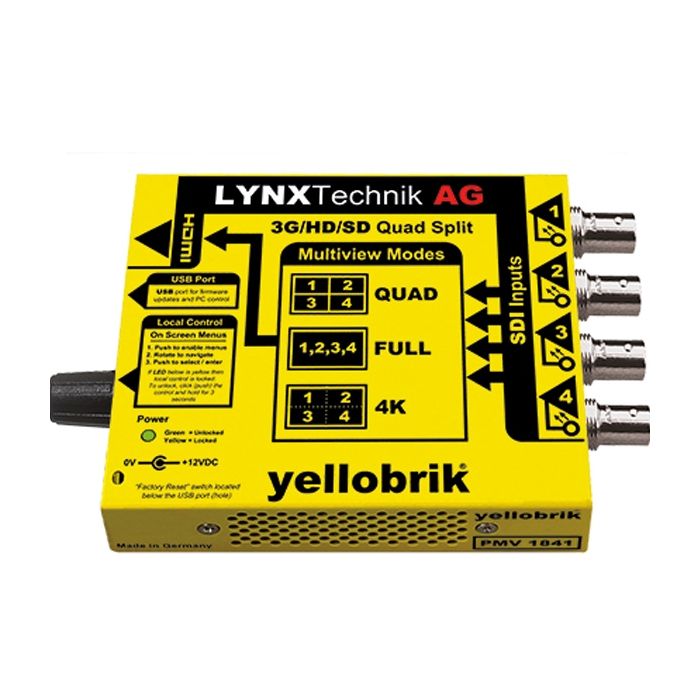

The PMV 1841 is a compact quad split multiviewer ideal for applications needing basic quad split multiview capability into an HDMI monitor. Four SDI inputs are supported with a single HDMI output.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The PMV 1841 is a compact quad split multiviewer ideal for applications needing basic quad split multiview capability into an HDMI monitor. Four SDI inputs are supported with a single HDMI output. The module has three basic modes of operation:
Quad Split - All four inputs are arranged into a fixed quad display. Each input can have the monitoring tools (or on screen overlays) individually configured.
Full Screen - One of the four inputs is displayed full screen with the user configured monitoring tools. In this mode 2 channels embedded audio from the selected SDI input is embedded into the HDMI output.
4K Monitoring - The module can be used to monitor 4K (12G) signals. The four SDI inputs are "stitched" together to make a full frame for monitoring. The 4K image is down converted to HD for display (4K monitor not required). Note: There are no on screen monitoring tools available in 4K mode.
The module is simple to setup and configure using the integrated local control and on screen menu system. All settings are automatically stored in flash RAM. USB is port is provided for firmware updates and also PC/MAC control using the yelloGUI application.
- 4 x SDI inputs and 1 x HDMI output
- Support for 3G/HD/SD -SDI formats (auto-detect)
- Full Screen, Quad Split and 4K (12G) monitoring modes
- Integrated local control and on screen menus
- Multiple on screen monitoring tools for each input:
- Waveform Monitor
- Vectorscope
- Audio Level Meters (upto 16 Channels)
- IMD (text ID)
- Safe Area /4:3 Extraction / Center Cross markers
- Video Standard
- Time Code
- Audio and Video Alarms
- Input present LEDs for each SDI input
- 4K (12G) monitoring mode (down converted HD HDMI output)
- yelloGUI compatible for PC/MAC
SDI Inputs
- 4 x SDI inputs on 75Ω BNC connectors (LED for signal present)
- SMPTE 424M, SMPTE 292M, SMPTE 259M
- 3G Level A & B-DL according to SMPTE ST 425-1 with image formats
- 1280 x 720 and 1920 x 1080
- For a detailed list of supported formats please refer to the article in our knowledge base ( www.lynx-technik.com > support > tech.support )
- Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz Cable EQ: 340m@270Mbits / [email protected] / 120m@3Gbits
HDMI Output
- 1 x HDMI output ( Type A Connector )
- HDMI standard: 1.4a
- 2 channels of embedded audio is passed for "full screen" selected input
Local Control
- On screen menu system accessed using rotary push encoder
USB
- Mini "Type B" USB port for firmware updates and yelloGUI control
Power
- +12VDC @ 4.9W nominal - ( supports 7 - 24VDC input range )
Physical
- Size: 138mm x 90mm x 22mm (5.13” x 3.54” x 0.86”) - including connectors Weight: 230g (8.11oz)
Ambient
- 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
- Module
- AC power supply
- HDMI + USB cable
