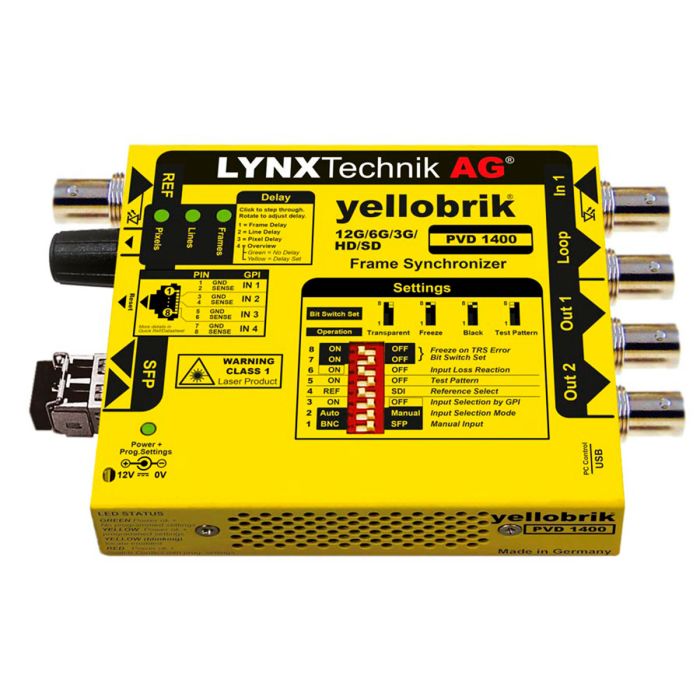

Lynx Technik yellobrik PVD 1400
12G-SDI Frame Synchronizer
MPN: PVD-1400 SKU: PVD-1400
The PVD 1400 is a broadcast quality compact SDI frame synchronizer for professional applications in the Broadcast, Post Production and Pro AV industry.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The PVD 1400 is a broadcast quality compact SDI frame synchronizer for professional applications in the Broadcast, Post Production and Pro AV industry.
The frame synchronizer utilizes robust “flywheel” algorithms that will accommodate a wide variety of low quality asynchronous SDI sources. All embedded audio is extracted and delayed automatically to match the video processing delay. The module also provides up to 30 frames of programmable output delay, adjustable in frames, lines and pixels.
The module is fully compatible with the yelloGUI and LynxCentraal, so the module can be configured, controlled and updated using a PC or MAC.
- Handles up to 4K/UHD - 4:2:2 10-bit
- Syncs it all - so your signals are perfectly timed
- Embedded audio sync - automatic extraction and delay for flawless audio-video sync
- Smooths out timing issues from low-quality asynchronous SDI sources with our robust flywheel algorithms
- Gives you control with up to 30 frames of programmable delay
- Fits neatly into yellobrik racks.
Supported Formats
- SD : 525i : 59.94
- SD : 625i : 50
- HD : 720p : 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- HD : 1080i : 50, 95.94, 60
- HD : 1080psf : 23.98, 24, 25
- HD: A : 1920x1080p : 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- HD : B-DL : 1920x1080p : 47.95, 48, 50, 59.94, 60
- 2K : 2084x1080p : 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- 2K : B-DL : 2048x1080p : 47.95, 48, 50, 59.94, 60
- UHD : 3840x2160p : 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
- 4K : 4096x2160p : 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
Support Standards
- SMPTE 259M, SMPTE 292M, SMPTE 424M, SMPTE 2081-1, SMPTE 2082-1
Color Precision
- YCbCr 4:2:2 10-bit
SDI Input
- 1 x 75 Ohm BNC electrical SDI input + 1 x optional fiber SDI input
- Automatic cable EQ
- SD: 340m
- HD: 140m
- 3G:130m
- 12G: 80m
SDI Outputs
- 2 x SDI video, 75 Ohm BNC (both have the same signal - NOT dual link)
Electrical Return Loss
- Input to 1.5GHz to 3GHz to 6GHz to 12GHz
- Output >15dB >10dB >7dB >4dB
Fiber In-/Output
- Optional plug in SFP for optical SDI in-/output
- SMPTE 297 - 2006
Reference Input
- SDTV: Analog 525 or 625 bi-level sync, black burst or colorbars
- HDTV: All tri-level sync standards
- SMPTE 274M, SMPTE 296M - 75 Ohm BNC connector
Frame Synchronizer
- Valid reference reccomended, otherwise operates in free run (async) mode.
- Fully cross lock compatible across standards.
- Up to 30 frame adjustable delay (line & pixel) using LynxCentraal or yelloGUI
Power
- +12V DC @ 10.0W (excl. SFP) nominal - ( supports 10 - 24V DC input range )
Physical
- Size (incl. connectors): 140mm x 90mm x 22mm (5.51” x 3.54” x 0.86”)
- Weight (excl. SFP): 207g (7.3oz)
Ambient
- 5 - 40oC (41 - 104oF) 90% Humidity (non condensing)
Model #
- PVD 1400 - ( EAN# 4250479329478 )
Includes
- Module, AC power supply
- Module
- AC power supply
