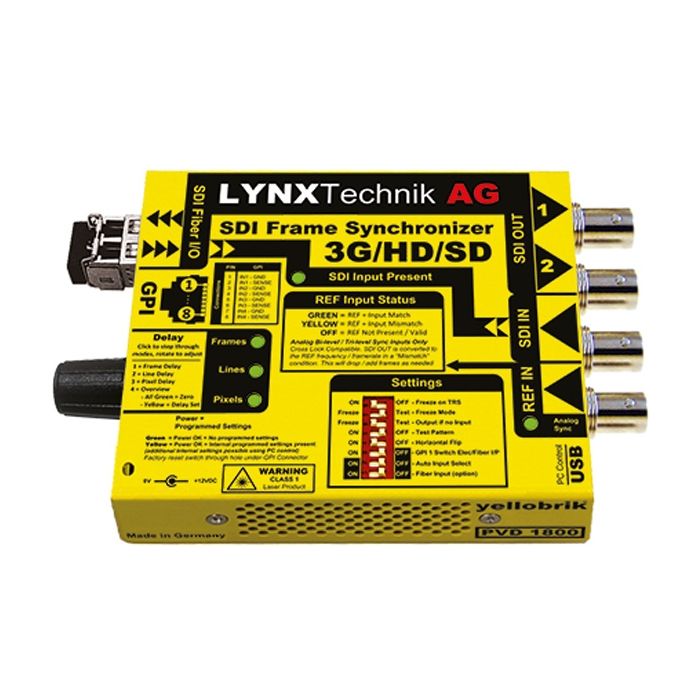

Lynx Technik yellobrik PVD 1800

• Supports SDI 3G (level A+B)/HD/SD formats (auto-detect)

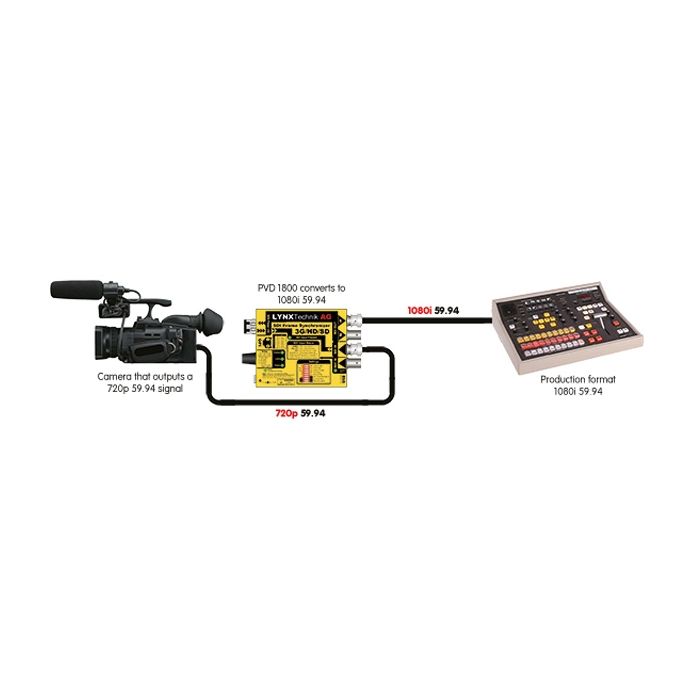

• Up/Down/Cross Converter with selectable fast scale mode
• Converter automated by AFD, WSS or VI mode

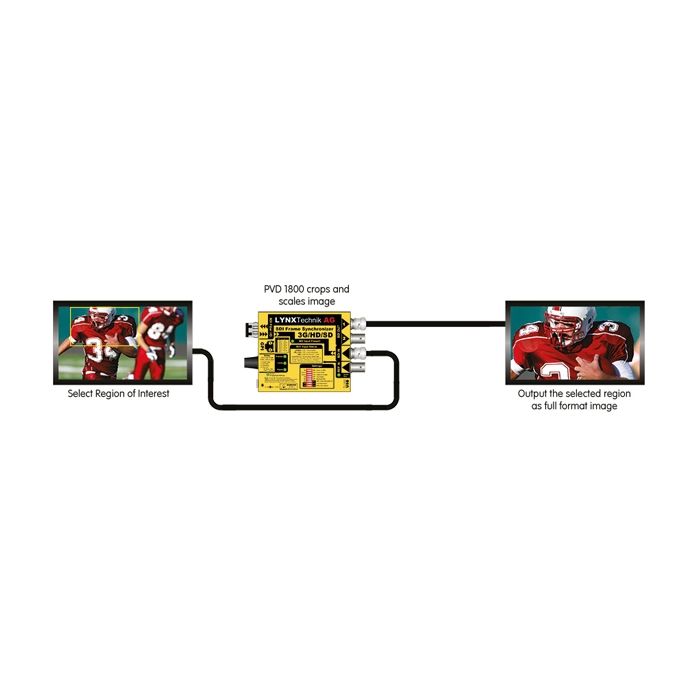

• Region of Interest scaler
• Converts between 3G Level A and B Dual Link or vice versa
• Optional fiber I/O
• Auto changeover or GPI switch between electrical and optical input
• Robust “flywheel” synchronization for problematic sources
• “Cross lock” compatible reference input
• All 16 channels of audio de-embedded from SDI input
• Audio delayed to match video processing delay and re-embedded
• Integrated test pattern generator
• Up to 30 frames of programmable delay (for timing)

SDI Input

• 1 x 75 Ohm BNC electrical SDI input + 1 x optional fiber SDI input
• Serial digital video SMPTE, 292M, 424M, 259M with automatic video format and standard detection
• SMPTE 424M, SMPTE 292M, SMPTE 259M
• 3G Level A & B-DL & B-DS according to SMPTE ST 425-1 with image formats 1280 x 720 and 1920 x 1080
• For a detailed list of supported formats please refer to the correlating article
• in our knowledge base (www.lynx-technik.com > support > tech.support)
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz

SDI Outputs

• 2 x 75 Ohm BNC electrical SDI outputs. SMPTE, 292M, 424M, 259M 1 x optional fiber SDI output
• SDI output follows input format
• Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz Timing Jitter: <0.2 UI @ 270Mbit/s, <1.0 UI @ 1.5Gbit/s, <2.0 UI @ 3Gbit/s Alignment Jitter: <0.2 UI @ 270Mbit/s, <0.2 UI @ 1.5Gbit/s, <0.3 UI @ 3Gbit/s Automatic cable EQ (Belden 1694A cable)
• 340m @ 270Mbit/s, 150m @ 1.5Gbit/s, 110m @ 3Gbit/s

Fiber I/O

• Optional plug in SFP for optical SDI I/O (see fiber options table)
• SMPTE 297M - 2006

Reference Input

• SDTV: Analog 525 or 625 bi-level sync
• HDTV: All tri-level sync standards (exceptions 1080p 50/59.94/60Hz) Cross lock compatible
• SMPTE 274M, SMPTE 296M - 75 Ohm BNC connector

Video Delay

• Timing Adjustment: Up to 30 frames.
• Manually adjustable in frame / line / pixel increments

GPI

• Connector: RJ45 with 4 x External GPI inputs:
• GPI 1 - used for Electrical / Optical SDI changeover GPI 2 - used to “freeze” the SDI output
• GPI 3 - (low) enable “latch” mode
• GPI 4 - (low) disables “latch” mode

USB

• Mini “Type B” connection used for yelloGUI PC control and firmware updates

Power

• +12VDC @ 5.8W nominal (without SFP) - (supports 7 - 24VDC input range)

Physical

• Size: 138mm x 90mm x 22mm (5.43” x 3.54” x 0.86”) including connectors
• Weight: 230g (8.11oz)

Ambient

•  5 - 40oC (41 - 104oF) 90% Humidity (non condensing)

• Module
• AC power supply
• USB cable
