Magewell Pro Capture AIO 4K Plus

Magewell Pro Capture AIO 4K Plus features both HDMI and SDI inputs with embedded audio support, capturing 2160p60 Ultra HD video over its HDMI 2.0 interface and 2160p30 via 6Gbps SDI.

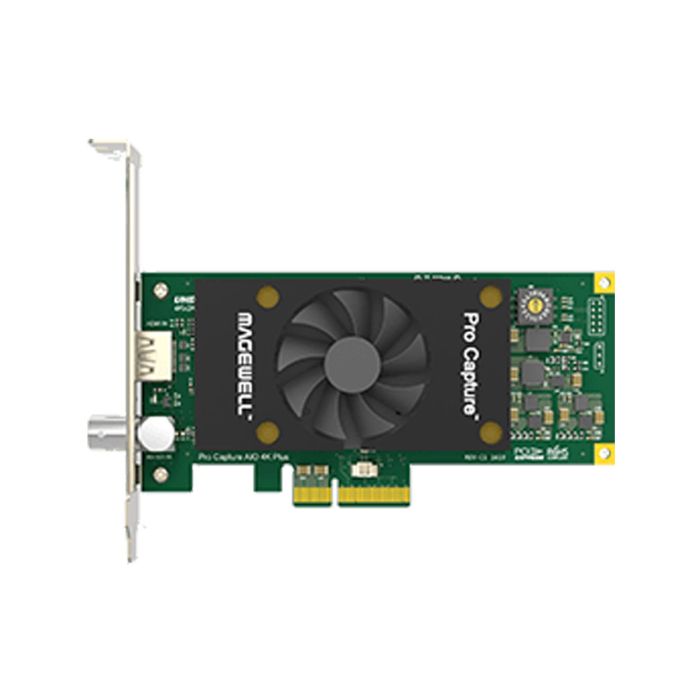

The Magewell Pro Capture AIO 4K Plus Capture Card is a low-profile PCIe x4 add-on card that allows for capturing a single channel of; SDI + embedded audio and HDMI + embedded audio. The card supports extraction of audio formation information and channel status data; video timing information, 3D format information, and Sony/Canon DSLR timecode. It is also capable of performing various video processing features; including cropping, scaling, deinterlacing, aspect ratio conversion, colour format conversion, video frame rate conversion, and video OSD composition.

Magewell’s outstanding video capture quality, performance and reliability, all three cards feature a PCIe 2.0 high-speed interface and support resolutions all the way up to the 4096×2160 4K digital cinema and production standard, including 3840×2160 4K Ultra HD. As with all Magewell Pro Capture cards, each video source can be output as multiple streams to separate applications simultaneously, enabling concurrent live broadcast, recording and preview. Resolution, frame rate and video processing can be controlled independently for each stream.
