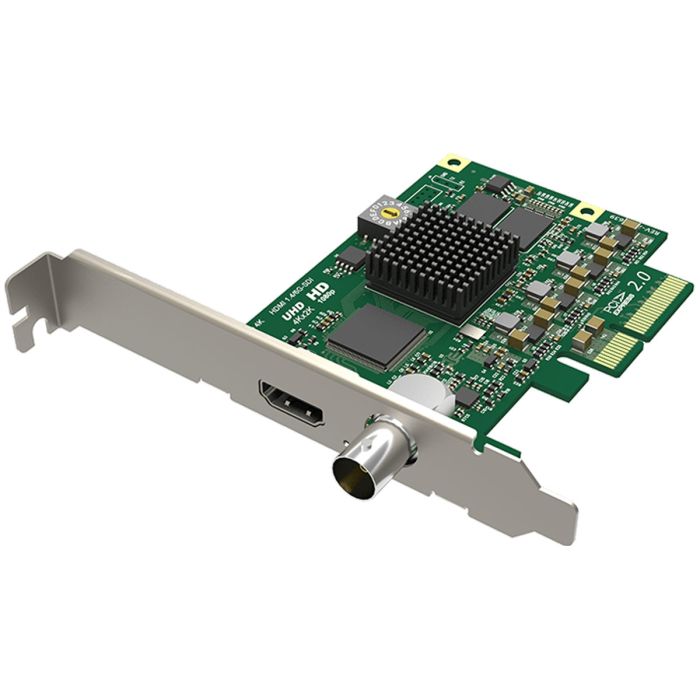

Magewell Pro Capture AIO 4K
MPN: 11170 SKU: 11170
Supporting several input signal types, the Magewell Pro Capture AIO 4K card occupies only a single PCIe 2.0 slot in your computer while enabling video capture from a variety of devices. It accepts 6G-SDI, HDMI and DVI-D video signals, up to a maximum resolution of 4096×2160
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Magewell Pro Capture AIO 4K is a single channel 4K resolution video with embedded audio, is compatible with DCI 4K and UHD video formats up to 4096 x 2160, and inputs using either its HDMI or SDI (BNC) ports. Capture uncompressed video and audio from a camera or switcher on your computer for recording, editing, or streaming.
The Pro Capture AIO 4K provides a flexible choice of input connectivity, capturing one channel of 4K video at up to 30 frames per second (or HD/2K video at higher frame rates) over its HDMI 1.4 or 6Gbps SDI interfaces. Input video can be fed to multiple software applications simultaneously, with independent control of resolution, frame rate and processing.
- Captures one channel of 4K video at up to 30fps over HDMI 1.4 or 6Gbps SDI interfaces with embedded audio
- Supports video resolutions up to 4096×2160, including the 3840×2160 Ultra HD television standard
- Input video can be routed to multiple software applications simultaneously, with independent control of resolution, frame rate and processing
- 10-bit, zero-CPU, FPGA-based video processing including up/down/cross-conversion, de-interlacing, video adjustments, graphic overlay and more
- Automatic input signal and format detection
- PCIe 2.0 host interface
- Compatible with Windows, Mac and Linux operating systems and popular APIs including DirectShow and V4L2
- Comprehensive SDK for custom third-party development
Captures one of the following
- 6G-SDI + embedded audio
- HDMI + embedded audio
- Supported: PC | Mac | Linux
- Low-Profile PCIe x4
