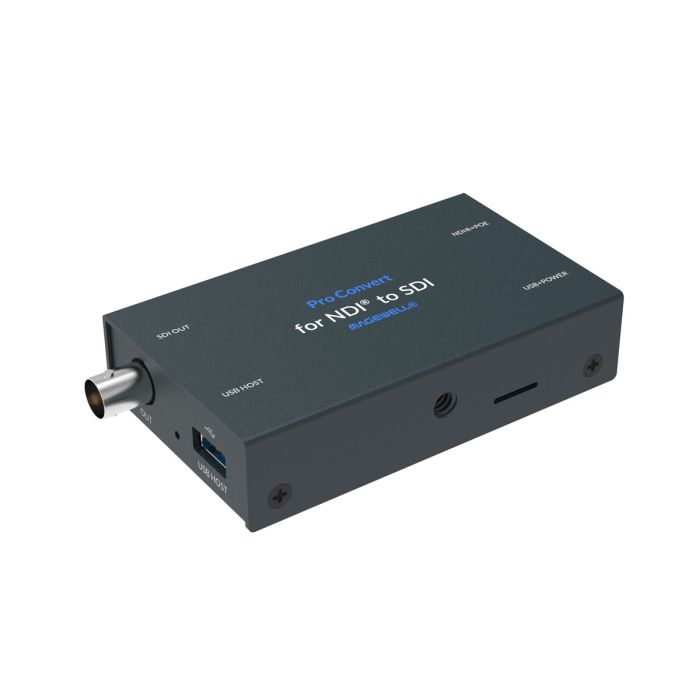

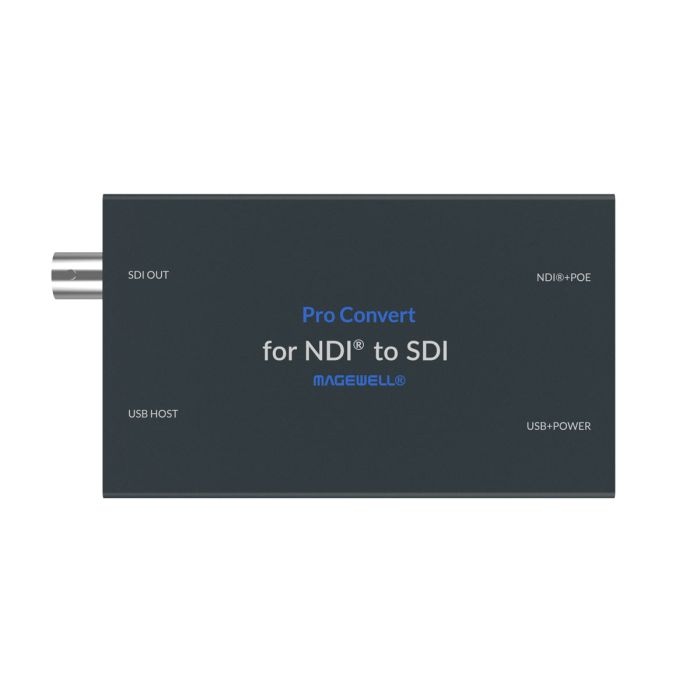

Magewell Pro Convert for NDI to SDI
Standalone NDI to SDI Decoder
MPN: 64150 SKU: 64150
The Pro Convert for NDI to SDI decodes Full NDI, NDI|HX, SRT, RTSP, RTMP, UDP, RTP and HLS up to 2048×1080 at 60fps for output via a 3Gbps SDI interface.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Pro Convert for NDI to SDI decodes Full NDI, NDI|HX, SRT, RTSP, RTMP, UDP, RTP and HLS up to 2048×1080 at 60fps for output via a 3Gbps SDI interface.
Magewell Pro Convert for NDI to SDI device will make it easier to use NewTek’s NDI protocol for presentation and delivery applications including digital signage and video walls, as well as multi-site video distribution and long-distance media transport. The Pro Convert for NDI to SDI supports DHCP network configuration and uses EDID metadata to detect display characteristics. The decoder can be controlled via browser, keyboard-and-mouse, or two hardware buttons on the device itself that overly a menu on the SDI output.

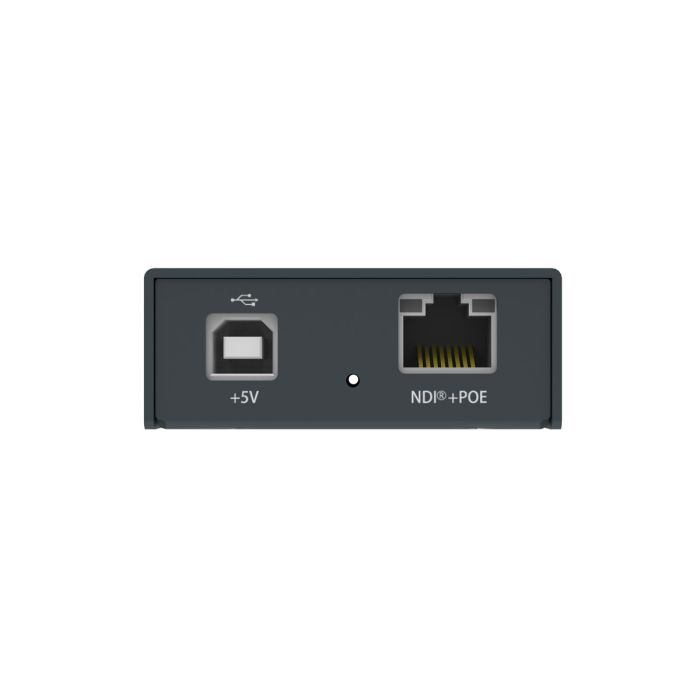

The device can be powered via an included USB power adapter or over PoE using the RJ45 port. The Magewell Pro Convert for NDI to SDI also offers a companion Web UI which allows web configuration from a wide variety of web browsers, such as the device name, source name, NDI and EDID identifiers, and other settings. The device features a 1/4″-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and durable design equipment configuration menu.
- Connects baseband presentation or distribution equipment into IP-based media networks
- Supports NDI technology including full-bandwidth NDI and high-efficiency NDI|HX mode
- Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP
Output Features
- Max output: 1920x1080p60. Supported output formats are:
- 1920x1080p 23.98/24/25/29.97/30/50/59.94/60
- 1920x1080i 50/59.94/60
- 1280x720p 23.98/24/25/29.97/30/50/59.94/60
- 720x576i50
- 720x480i59.94
- Support YUV BT.601, YUV BT.709 signals
- Support 48KHz 8-channel audio output

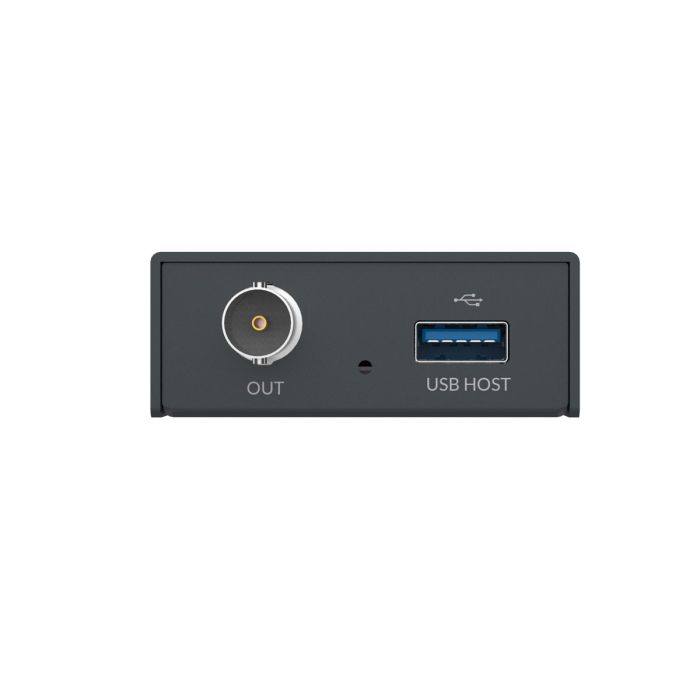

- SD/HD/3G-SDI BNC output
- Support SD (ST 259)/HD (ST 292)/3Ga (ST 425)/3Gb (ST 425)/3Gb-DL (ST 425)/3Gb-DS (ST 425) SDI standards
- Output 3G-SDI signal and transmitted distance greater than 100m (328ft)
Decoding Features
- Decoding up to 2Kp60 streams of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push, and MPEG-TS over UDP/SRT/RTP protocols
- H.264/H.265 video decoders
- AAC/MP3 audio decoders
- Support NDI 4.x
Web UI Management
- Provide comprehensive information regarding the device and decoded signals in real-time
- Allow to configure how a signal is processed and decoded, including:
- OSD setting, deinterlacing, resolution, frame rate, AR conversion
- audio gain, sample rate and audio channel mapping
- network connection
- Update firmware
- Support USB RNDIS/ECM
- Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
On-board Control Buttons
- MENU: press to display the menu, or cycle through the options
- SELECT: press to display the menu, enter current option, or confirm the selection
- 16 Position Rotary DIP Switch: set board-index from 0 to F
Network Interfaces
- 10/100/1000Mbps Ethernet
- IEEE 802.3af PoE
USB Interfaces
- USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM
- USB3.0 Type A
- Connecting peripherals (keyboard and/or mouse) to set up device
LED Indicators
- Power LED status indicator
- On: power connected
- Off: power unconnected
- Decode LED status indicator
- On: decoding
- Blinks: decoding error
- Off: source unselected
Form Factor
- 100.9mm (L) x 60.2mm (W) x 23.3mm (H)
Screw Mounting Hole
- ¼–20 threaded hole
Power Consumption
- 5V max current: ~1.05A
- Max power consumption: ~5.5W
Working Environment
- Operating temperature: 0 to 40 deg C
- Storage temperature: –20 to 70 deg C
- Relative humidity: 5% to 90% non-condensing
- USB 2.0 A to B cable
- 5V/2.1A power adaptor
- L-bracket
