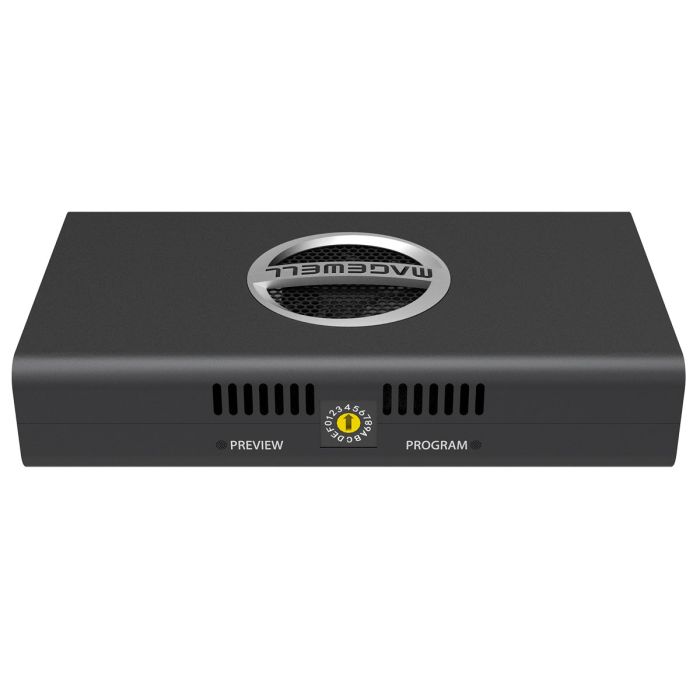

Magewell Pro Convert HDMI 4K Plus
One-channel 4K Signal Converter
MPN: 64010 SKU: 64010
Standalone 4K HDMI (4K60 4:4:4) to full bandwidth NDI (4K60, 4:2:2) encoder, 1-channel HDMI with loop-through out, PoE
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Innovating to Enhance Live Production Workflows
Adopting NewTek’s royalty-free NDI® protocol for encoding and transmission, the Pro Convert family easily and reliably converts video signals such as HDMI and SDI into NDI streams. These NDI streams will be available to all NDI-compatible software and systems on the same network regardless of physical distance, ensuring high-quality, low-latency, IP-based live production experiences superior to traditional live production solutions.
Video-over-IP has Never Been so Simple
Everything you need as a live content producer can fit in a backpack – Pro Convert devices and accessories, a network switch and a laptop. The converter accepts a wide range of signals from source equipment including cameras, production workstations, media players, games consoles and more, creating streams that are compatible with the large and growing number of NDI-enabled software applications.
Easy-to-Use; Zero Configuration
Pro Convert devices automatically detect your network and the video input signal format, with no manual network configuration nor source format selection needed. Plug in the cables, and it just works!
Compact and Powerful

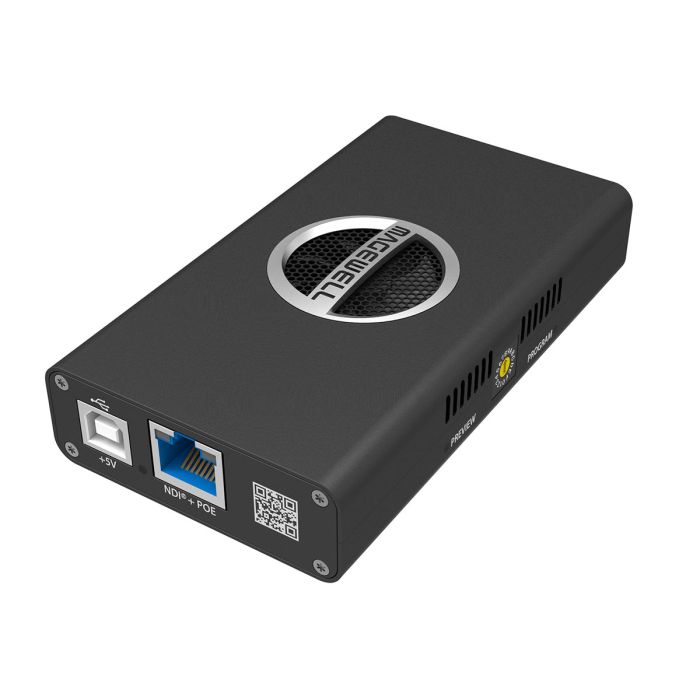

Pro Convert HDMI 4K Plus features a small size of 117.5mm by 66.7mm (4.63” by 2.63”) and 23.4mm (0.92”) thick, weighing only 234g. Tiny as it is, the converter supports HDMI 2.0 signal inputs up to 4K at 60fps 4:4:4 and can encode NDI streams up to 4Kp60 4:2:2.
Scalable Solution with Lower Investment in Equipment
With Pro Convert devices, your Video-over-IP infrastructure can be expanded to any number of inputs. Simply add one more Pro Convert to add one channel of input to your NDI-based production network, with no need for expensive equipment like dedicated video routers or matrixes.
Fits Easily and Non-Disruptively into Your Existing Workflows
Simply connect a Pro Convert device to your existing video source to make your production workflow IP-enabled. The converter provides a loop-through interface so you can still connect your source to the same subsequent video equipment without affecting your original workflow, minimizing cost and integration effort.
- Convert one channel of HDMI signal with embedded audio to NDI® stream
- Loop-through one channel of HDMI signal with embedded audio
Basic features:
- FPGA-based Video Processing
- Superb Signal Compatibility
- Remote Control PTZ Cameras via IP
- Connect to the computer using RNDIS when Ethernet is not available
- Support 8 channel IEC60958 audio streams; support Audio 5.1 and 7.1
- Fail-over to switch another source if the current one fails
- Intuitive web-based UI for quick setup and control
- Power via PoE or USB power supply
- Tally Lights
- 1/4"-20 Mounting Hole
- Accessed by multiple users simultaneously; different user permissions to ensure safety
- Low-noise fan for colling 24x7 continuus work
- Online Firmware Update
- Rotary switch to set the ID for each device
Supported Web Browser (tested)
- Microsoft Internet Explorer 11
- Microsoft Edge
- Mozilla Firefox version 61 and above
- Google Chrome version 49 and above
- Apple Safari 11.1 and above
- Opera 55.0.2994.44 and above
Supported Software (tested)
- OBS
- XSplit
- vMix
- VidBlasterX
- Wirecast
- streamstar SW
- mimoLive
- Any other NewTek NDI-enabled encoding or streaming software

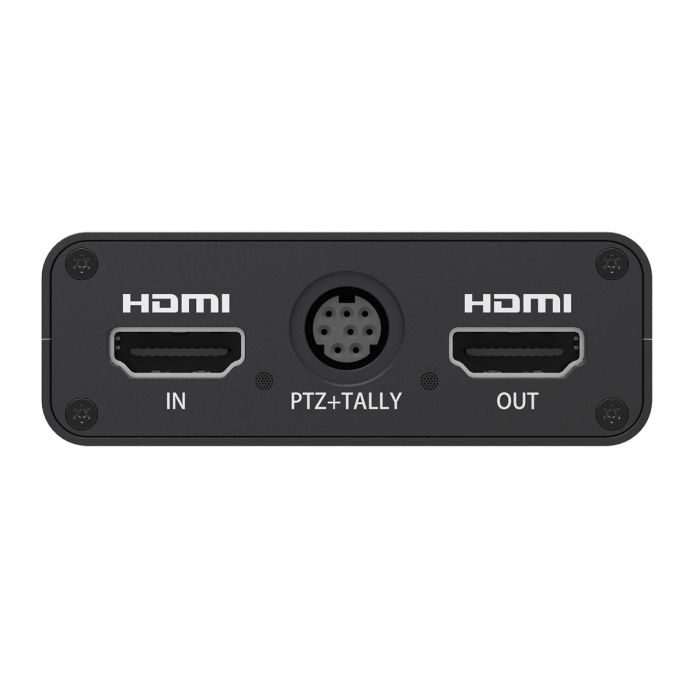

Input Interfaces
HDMI
- DVI-D 1.0
- HDMI 1.4 HDMI 2.0
Loop-through Interface
HDMI
- DVI-D 1.0
- HDMI 1.4 HDMI 2.0
Storage Interface
- SD Card (functions to be developed)
PTZ + TALLY Control
- Mini-DIN–8 jack
Screw Mounting Hole
- 1⁄4–20 mounting hole

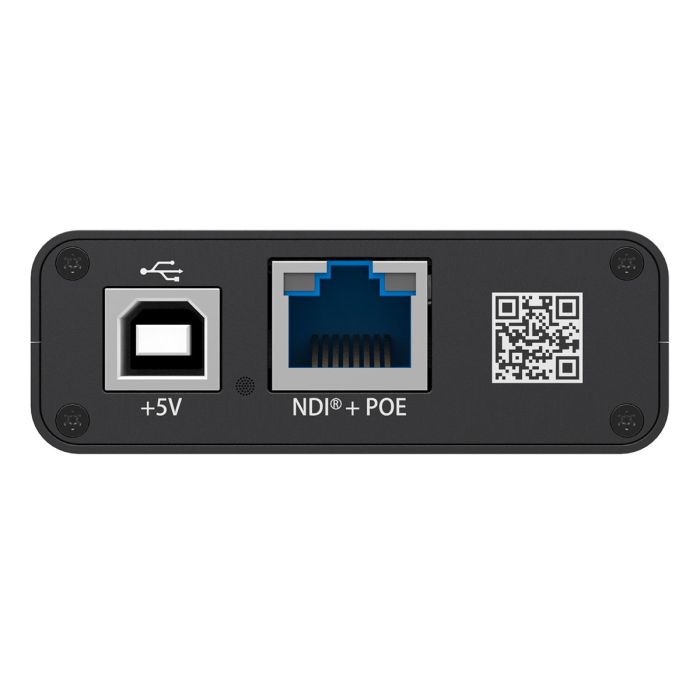

Network Interfaces
- 10/100/1000Mbps Ethernet
- IEEE 802.3af PoE
USB Interface
- USB2.0 Type B
- 5V/2.1A power supply
- USB RNDIS/ECM
Input feature
- Support for input video resolutions up to 4:4:4 8-bit 4096x2160 60fps
HDMI Specific Features
- 600MHz HDMI receiver
- Adaptive HDMI equalizer
- Support for customized EDID
- Support for extraction of AVI/Audio InfoFrames
- Full colorimetry support
- Support for up to 4096x2160 4:4:4 60fps input signals
- Support for 8 channel IEC60958 audio streams
- Support for extraction of audio formation information & channel status data
- Support for extraction of video timing information
- Support for extraction of 3D format information
- Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
NDI® Output Format
- Support for 4:2:2 8-bit output
- Support for up to 4096x2160 60fps or 1920x1080 240fps
- Support for NDI 3.x
Video Processing Features
- Video processing pipelines with 4096x2160 60fps
- Video brightness, contrast, saturation, hue adjustment
- Video de-interlacing: Top field only, Bottom field only
- Video aspect ratio conversion: Auto or manual selection of output aspect ratio
- Video colour format conversion:
Auto or manual selection of input colour format & quantization range
Auto or manual selection of output colour format, quantization range & saturation range
Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input colour formats
Support for YUV BT.601, YUV BT.709, YUV BT.2020 output colour formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range - Video frame rate conversion
- Video mirror flip
NDI® Source Name
- Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
- Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
- Support for setting board-index, from 0 to F, through on-board rotary switch
Firmware Upgrade
- Support for manual update using Web UI
LED Indicator
Status LEDs indicate:
- the state of power supply: on/off
- Tally: preview/program
- the state of input signal: locked/unlocked
- the state of loopthrough signal: loopthrough connected and signal detected/undetected
Form Factor
- 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories
- USB 2.0 A to B Cable
- 5V/2.1A power adaptor
- Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY) L-bracket
- LED matrix panel (optional)
Power Consumption
- 5V max current: ~2A
- Max power consumption: ~10W
Working Environment
- Operating temperature: 0 to 45 deg C
- Storage temperature: –20 to 70 deg C
- Relative Humidity: 5% to 90% non-condensing
Warranty
- 2-year warranty
