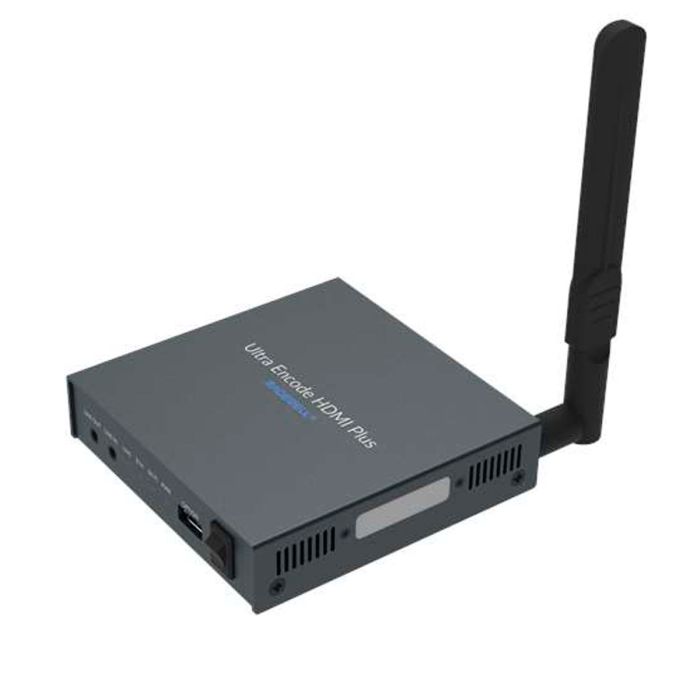

Magewell Ultra Encode HDMI Plus
A Flexible & Universal 4K Streaming and Recording Encoder
MPN: 53150 SKU: 53150
Universal encoder for live streaming, recording, remote contribution and AV over IP. 1-channel HD HDMI with loop-through, plus extra Line-in/out. Multiple protocols including RTMP/RTSP/SRT/NDI|HX 3 are supported and more. Support up to 4Kp30 and 8 channels audio..
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Ultra Encode HDMI Plus can encode at resolutions up to 4096x2160 at 30 frames per second from its HDMI interface. This model support multiple video encoding formats and technologies – including H.264, H.265 (HEVC), NDI HX2 and NDI HX3 – and a wide array of streaming protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU's ISSP technology.
Universal encoder for live streaming, recording, remote contribution and AV over IP. 1-channel HD HDMI with loop-through, plus extra Line-in/out. Multiple protocols including RTMP/RTSP/SRT/NDI|HX 3 are supported and more. Support up to 4Kp30 and 8 channels audio.- Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
- Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
- Control via web interface or optional Control Hub centralized management software
- PoE available
- Tally lights for NDI® HX3
- Control via intuitive Web GUI or HTTP APIs
- Provide HTTP APIs
Input Features
- Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0
- 60fps input and loop through signals
- Input & loop through 8-Channel, 24-bit HDMI embedded audio
- Input audio from 3.5 mm LINE INEncoding Features
Encoding Features
- Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
- Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
- Support for H.264/HEVC video encoding
- Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
- Encoding 8-channel AAC and audio channels mapping
- Side-by-Side 3D video encoding
Streaming Features
- Natively support streaming to Facebook, Twitch and YouTube
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT
- Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
- Allow streaming to multiple destinations simultaneously (select protocols)
Recording Features
- Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
- Automatically upload recorded files to remote file storage platform
- Video recordings in MP4, MOV or TS format
- Normal recording and loop recording supported
Support for recording schedule
Accessories
- Power Adapter
- USB Type A to Type B cable
- T-bracket
- Wi-Fi Antenna
- HDMI Cable
- Magewell Ultra Encode HDMI Plus
- Power Adapter
- USB Type A to Type B cable
- T-bracket
- Wi-Fi Antenna
- HDMI Cable
