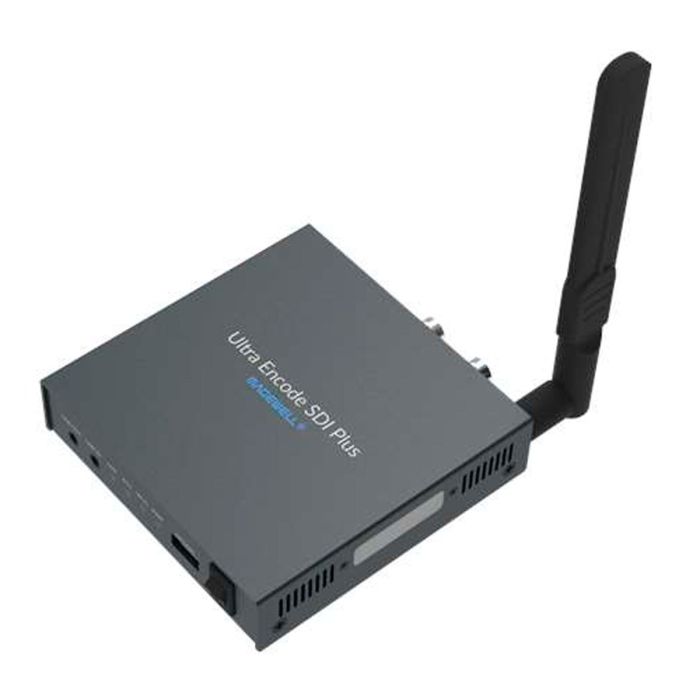

Magewell Ultra Encode SDI Plus
A Flexible & Universal 4K Streaming and Recording Encoder
MPN: 53160 SKU: 53160
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
The Ultra Encode SDI Plus encodes up to 4K at 30fps from the device's 6G-SDI input. This model support multiple video encoding formats and technologies – including H.264, H.265 (HEVC), NDI HX2 and NDI HX3 – and a wide array of streaming protocols including RTMP, RTMPS, SRT, RTSP, RTP, HLS, and TVU's ISSP technology.
Universal encoder for live streaming, recording, remote contribution and AV over IP. 1-channel HD HDMI with loop-through, plus extra Line-in/out. Multiple protocols including RTMP/RTSP/SRT/NDI|HX 3 are supported and more. Support up to 4Kp30 and 8 channels audio.
- Live streaming and recording with support for H.264, H.265, NDI® HX2 and NDI® HX3
- Flexible choice of streaming protocols including RTMP, RTMPS, SRT, HLS and more
- Control via web interface or optional Control Hub centralized management software
- PoE available
- Tally lights for NDI® HX3
- Control via intuitive Web GUI or HTTP APIs
- Provide HTTP APIs
Input Features
- Support for up to 4096x2160 30fps input and loopthrough signals
- Input & loopthrough 16-Channel SDI embedded audio
- Input audio from 3.5 mm LINE IN
Encoding Features
- Dual stream encoding profiles: main stream and sub stream up to 4096x2160p30
- Max bitrate: 62Mbps (NDI® HX3), 32Mbps (Others)
- Support for H.264/HEVC video encoding
- Provide video aspect ratio conversion, image rotation and cropping for the main and sub streams
- Encoding 8-channel AAC and audio channels mapping
- Side-by-Side 3D video encoding
Streaming Features
- Natively support Facebook, Twitch, YouTube and WOWZA
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI® HX2/NDI® HX3/HLS/TS over UDP/TS over RTP/TVU ISSP
- Allow simultaneous 6 sessions over multiple streaming protocols
- Support for streaming schedule
Recording Features
- Record to internal storage (128GB), external USB storage or network attached storage (NFS/CIFS)
- Automatically upload recorded files to remote file storage platform
- Video recordings in MP4, MOV or TS format
- Normal recording and loop recording supported
- Support for recording schedule
Accessories
- Power Adapter
- USB Type A to Type B cable
- T-bracket
- Wi-Fi Antenna
- Magewell Ultra Encode SDI Plus
- Power Adapter
- USB Type A to Type B cable
- T-bracket
- Wi-Fi Antenna
