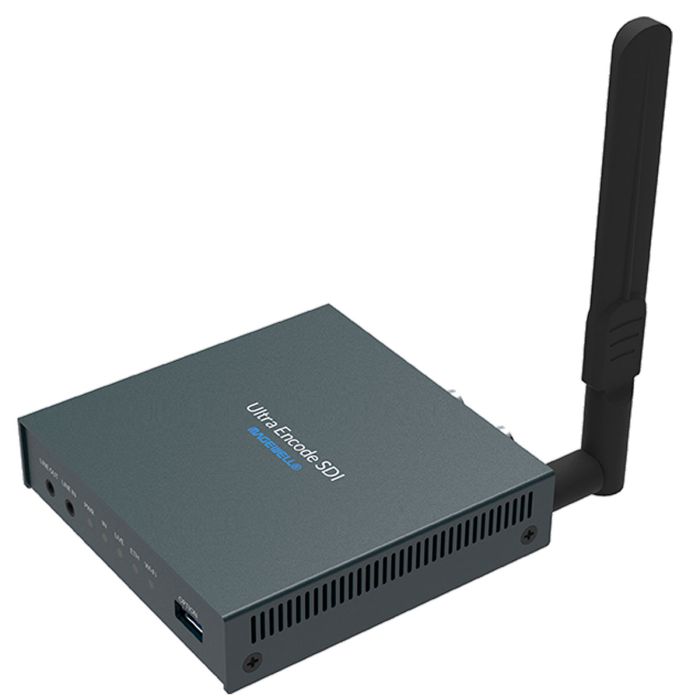

Magewell Ultra Encode SDI
A Flexible & Affordable Universal Encoder
MPN: 53050 SKU: 53120
Magewell's Ultra Encode family of universal live media encoders offers systems integrators, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more. Available in HDMI and SDI models, Ultra Encode supports high-quality H.264, H.265 (HEVC) and NDI®|HX encoding and multiple streaming protocols with wired or wireless network connectivity.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Magewell's Ultra Encode family of universal live media encoders offers systems integrators, streaming professionals, and OEM partners a flexible and affordable encoding solution for applications including live streaming, AV over IP, remote contribution, IP production workflows and much more. Available in HDMI and SDI models, Ultra Encode supports high-quality H.264, H.265 (HEVC) and NDI®|HX encoding and multiple streaming protocols with wired or wireless network connectivity.
Live Streaming
Ultra Encode supports live streaming in protocols including RTMP, RTMPS, HLS and more at bitrates up to 16Mbps, with configurable presets for easy streaming to Facebook, Twitch and YouTube. Some protocols can be streamed to multiple destinations simultaneously.
Production, Contribution & Monitoring
In addition to mainstream streaming protocols, Ultra Encode supports NewTek’s NDI®|HX technology for IP production workflows and the Secure Reliable Transport (SRT) protocol (developed and open-sourced by Haivision) for robust delivery of H.264/H.265 streams over unpredictable networks such as the Internet. The encoder can be camera-mounted for easy remote contribution, while bandwidth-efficient NDI®|HX streams can be sent over wireless networks to multiple receivers, simplifying on-site production and monitoring workflows.
AV over IP
Ultra Encode can be combined with our Pro Convert decoders to form flexible AV over IP infrastructures leveraging NDI®|HX and SRT technology. The devices can be configured and controlled through an intuitive Web GUI or HTTP-based APIs, providing systems integrators with exceptional deployment and integration flexibility.
- Live H.264/H.265 streaming
- Supports streaming protocols including SRT, NDI|HX, HLS & more
- Suitable for various network environment
- Internet connectivity via wired Ethernet and wireless network
- Control via intuitive Web GUI or HTTP APIs
Input Features
- Support for up to 2048x1080 60fps input and loopthrough signals
- Input & loopthrough 16-Channel SDI embedded audio
- Input audio from 3.5 mm LINE IN
Encoding Features
- Dual stream encoding: main stream (Max bitrate: 16Mbps) and sub stream (Max bitrate: 2Mbps)
- Support for H.264/HEVC video encoding
- Encoding 2-channel AAC at 48kHz, 16-bit
Streaming Features
- Supported streaming protocols: RTSP/RTMP/RTMPS/SRT Caller/SRT Listener/NDI|HX2/HLS (push)/TS over UDP/TS over RTP
- Allow streaming to multiple destinations simultaneously (select protocols)
Configuration Managment
- Register with Magewell Cloud
- Remote control via WebUI and Magewell Cloud
- Provide comprehensive information regarding the system information of device and working status in real-time
- Video thumbnail preview
- Configure parameters of volume and color, input and output signals, stream profiles, no signal image, the Ethernet and Wi-Fi connection, as well as date and time
- Update firmware
- Export configuration profiles of the device
- Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
- Provide HTTP APIs
Network Interfaces
- Wired Ethernet network: 10/100/1000Mbps
- Wi-Fi 802.11 a/b/g/n/ac
- 3G/4G USB mobile broadband Modem (not included)

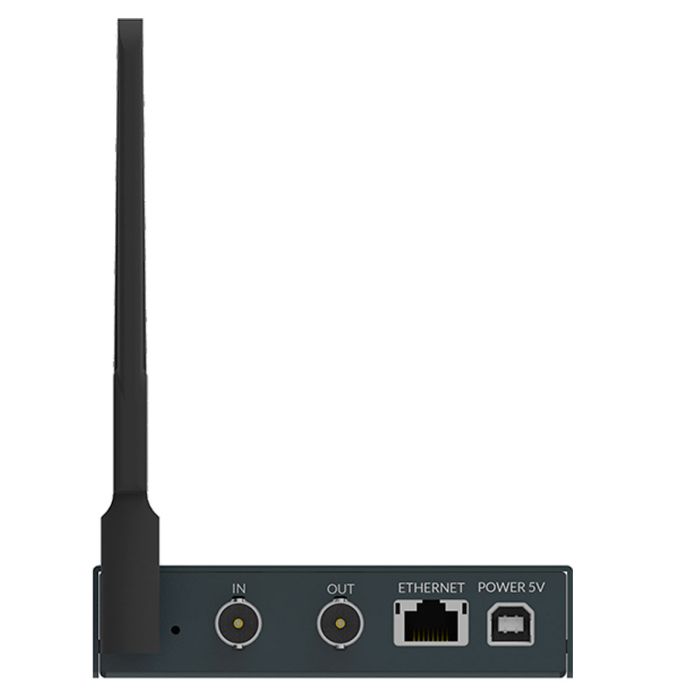

Input/Output Interfaces

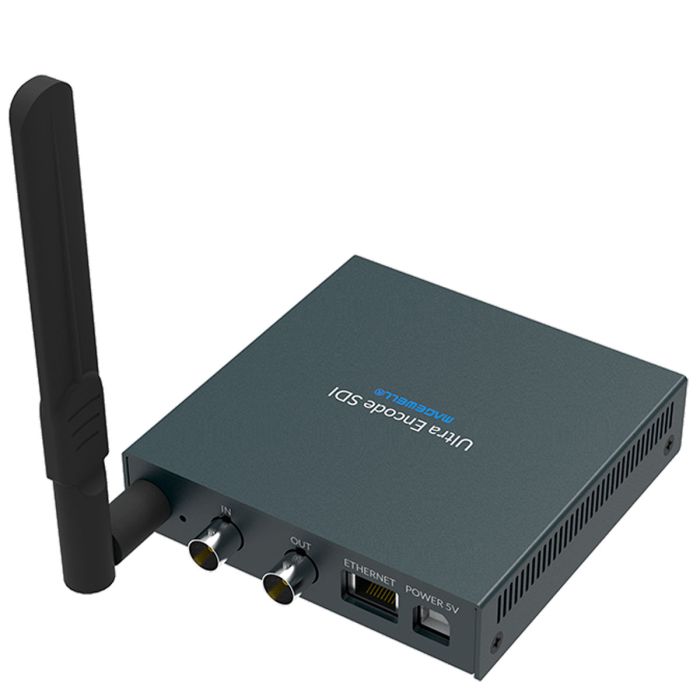

- SD/HD/3G BNC input and loop-through interfaces
- 3.5mm LINE IN
- 3.5mm LINE OUT

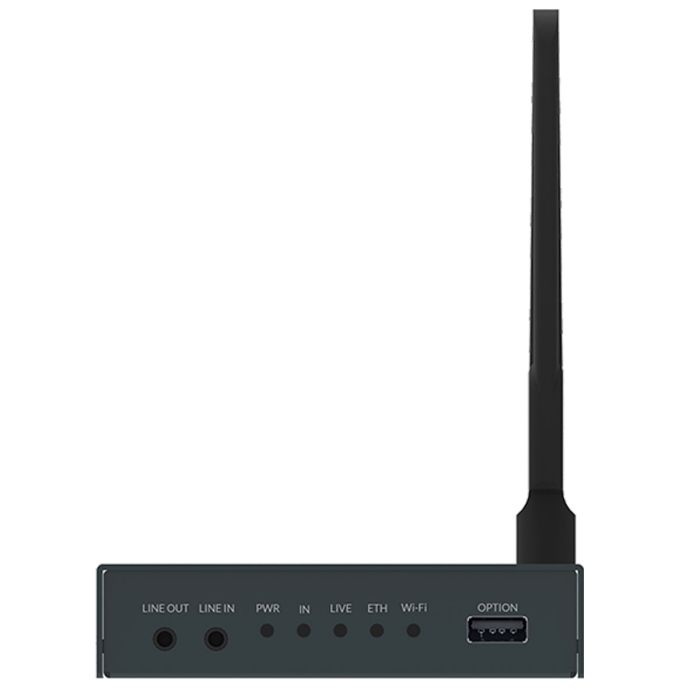

LED Indicators
- LEDs indicating the status of power, input signal, streaming, Ethernet and Wi-Fi connection
Power Supply and Consumption
- DC 5V/2A
Max power consumption: ~7.6 W
Form Factor
- 106.6mm x 106.2mm x 25mm
Accessories
- AC adapter
- Wi-Fi antenna
- USB 2.0 Type B cable
- T-bracket
Screw Mounting Hole
- 2 x M3 threaded hole
- A standard 1/4"-20 socket provided by T-bracket
