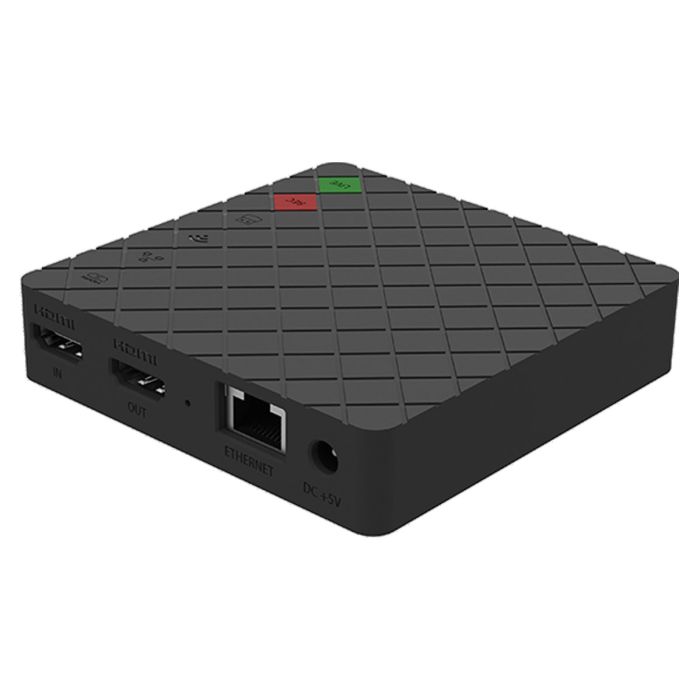

Magewell Ultra Stream HDMI - Encoder and Recorder

• Record and stream 1 channel of HDMI + embedded audio
• Loop-through HDMI + embedded audio

Supported Mobile Clients

• Android: Android 5.0 and above
• iOS: iOS 9.0 and above
• iPhone:
  • iPhone 5s
  • iPhone SE
  • iPhone 6 / iPhone 6s / iPhone 6 Plus / iPhone 6s Plus
  • iPhone 7 / iPhone 7 Plus
  • iPhone 8 / iPhone 8 Plus
  • iPhone X
• iPod Touch:
  • iPod Touch 5
  • iPod Touch 6

Supported Web Browser

• Microsoft Internet Explorer 11
• Microsoft Edge
• Mozilla Firefox version 61 and above
• Google Chrome version 49 and above
• Apple Safari 11.1 and above
• Opera 55.0.2994.44 and above

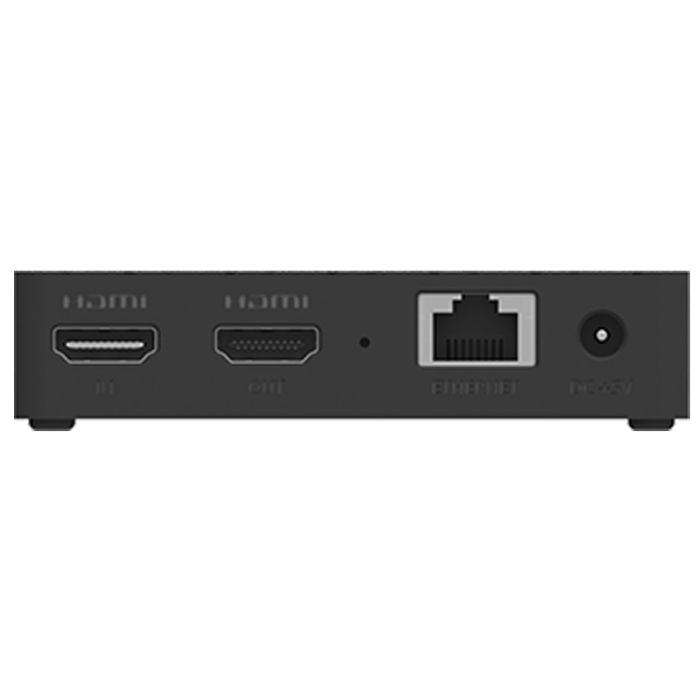

Input Interfaces

• HDMI: HDMI 1.4a

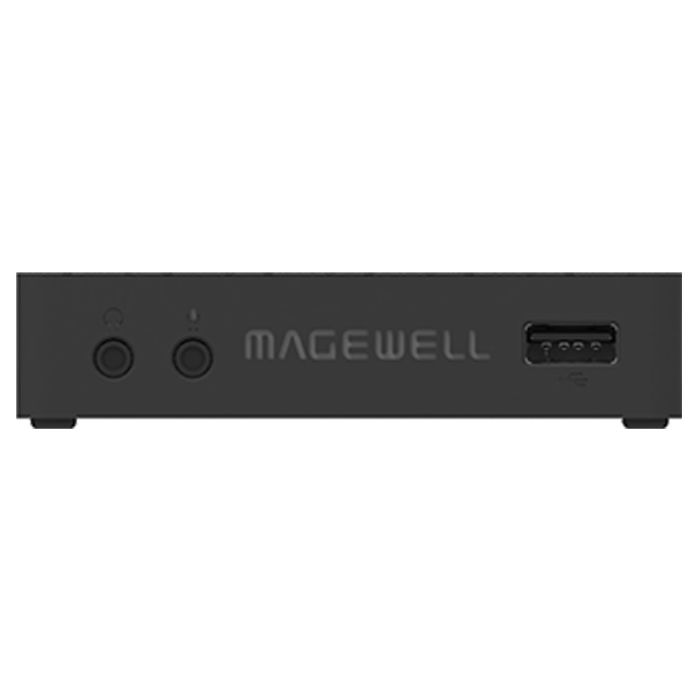

• 3.5mm audio jack: Microphone interface

Output Interfaces

• HDMI: HDMI loop-through
• USB: USB 2.0
• 3.5mm audio jack: Headphone interface

Network Interfaces

• Wired Ethernet: 10/100/1000Mbps Ethernet
• Wi-Fi: IEEE 802.11 a/b/g/n/ac
• USB: USB 3G/4G Modem (not included)

Bluetooth

• Bluetooth 4.0 BLE

HDMI Specific Features

• Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input and loopthrough signals
• Support for 8/10/12-bit color depths
• Support for 60p, 60i, 50p, 50i, 30p, 25p signal formats
• For 4:2:0 input signals, the horizontal and vertical resolution will be reduced to 1/2 for capturing
• For 4:4:4/4:2:2 input signal at more than 170MHz, the horizontal and vertical resolution will be reduced to 1/2 for capturing.

Analog Audio Features

• Extracting stereo embedded HDMI audio for recording, streaming and output via 3.5mm stereo mini-jack Line Out
• Recording and streaming analog audio from the 3.5 mm microphone interface

Encoding Features

• Support for H.264/HEVC (video) and AAC High Quality (audio) encoding
• Support for video bitrates of up to 8Mbps for the Main Stream and 1Mbps for the Sub Stream
• Support for encoding at input signal resolutions up to 1920x1080, including these lower resolutions: 1600x1200, 1440x1080, 1440x900, 1280x1024, 1280x960, 1280x800, 1280x720, 1024x768, 960x540, 800x600, 768x576, 720x576, 720x540, 640x480, 640x360, 480x360, 480x270
• Support for 60fps, 59.94 fps, 50fps, 30fps, 29.97 fps, 25fps, 24fps, 15fps frame rates

Streaming Features

• Support for live streaming using RTMP protocol to software including Flash Media Server, Wowza, Red5 and Nginx server
• Support for RTSP protocol
• Support for streaming to Facebook, Twitch and YouTube platforms
• Support for streaming to multiple destinations, up to 2 servers simultaneously
• Support for specifying network priority when multiple networks are connected

Recording Features (to device & USB Flash Drive)

• Support for recording to USB Flash Drive and internal storage (32GB)
• Support for loop recording
• Support for auto-recording when the input signal is stable
• Support for recording video clips in different durations
• Support for recording as MP4 or MOV files
• USB Flash Drive file system formats: FAT32, NTFS, exFAT, VFAT
• Support for downloading video clips which are stored in device storage using the WebUI

Recording Features (to Mobile Device)

• Support for recording at up to 1280x720, 30fps
• Support for recording as MP4 files
• Taking still image snapshots during recording
• Saving recording files and screenshots to system album
• Previewing the main and sub streams
• Timer recording: 15s, 30s, 1min, 2min, 5min

Remote Control Features

• Support for connecting the device via Wi Fi, wired network, and device hotspot (i.e. AP mode)
• Support for connecting smart phone Wi-Fi to the device hotspot (i.e. AP mode)
• Support for remotely controlling the device using WebUI and app
• Support for remotely checking the device status
• Support for setting volume, network, recording and live streaming parameters
• Support for checking and safely updating device firmware (or resetting to the factory firmware version)
• Support for simultaneous main stream and sub stream encoding with customizable parameters
• In-app online help
• Support for multiple users logging-in simultaneously
• Support for device configuration using the WebUI

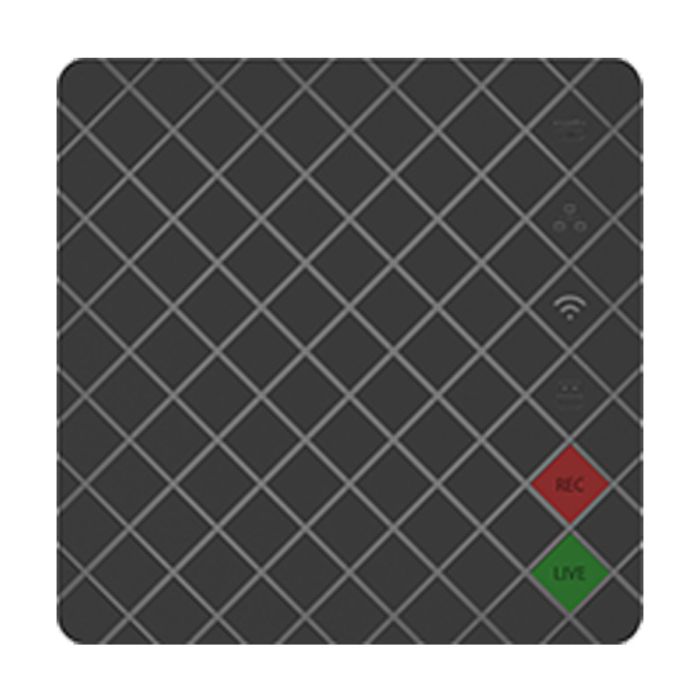

LED Indicator

• Indicates the state of the input signal, Ethernet Network, Wi-Fi, USB flash drive
• Indicates the working state of the device: startup, recording, streaming, updating

Form Factor

• 94.20mm x 94.20mm x 22.30mm

Power Supply and Consumption

• Power port:
  • DC 5V/2A
  • 2.1mm x 5.5mm socket, centre pin positive
• Max power consumption: ~6.0 W

Working Environment

• Operating temperature: 0 to 40 deg C
• Storage temperature: –20 to 70 deg C
• Relative humidity: 5% to 90% non-condensing

• Power Adapter (UK) x1
• Power Cable x1
• HDMI Cable x1
