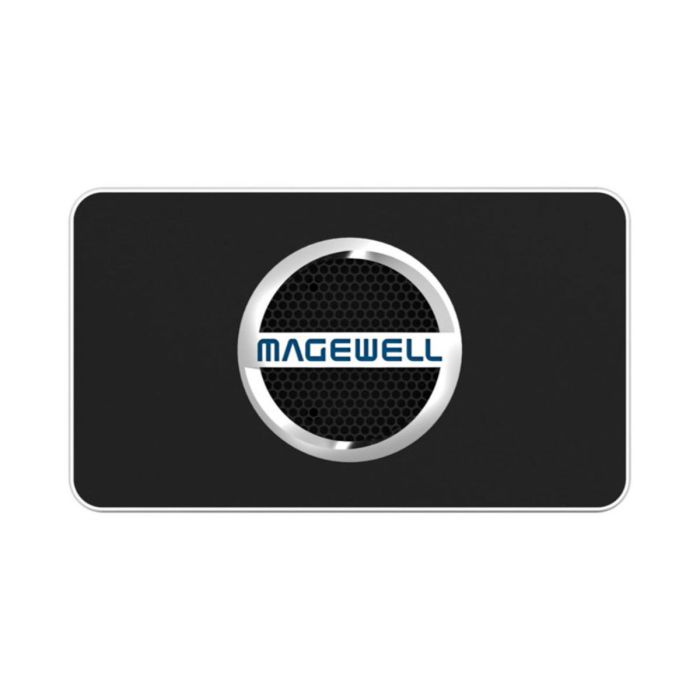

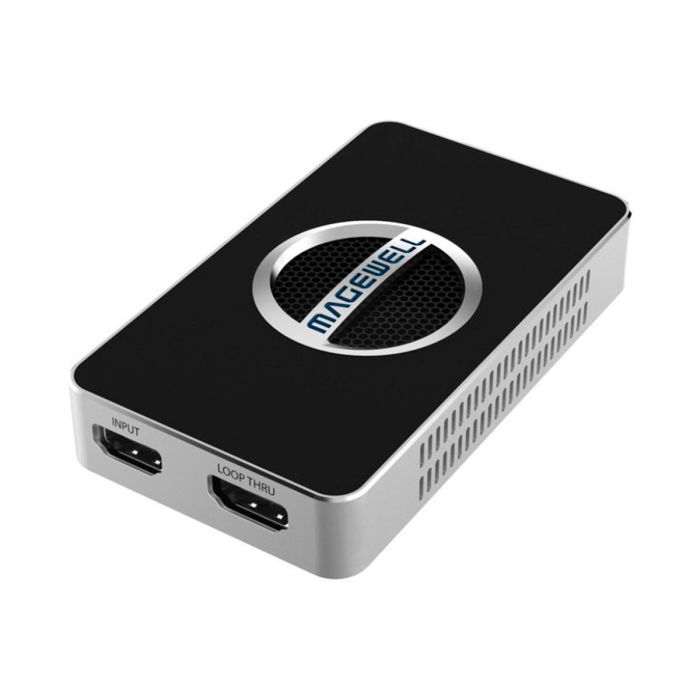

Magewell USB Capture HDMI 4K Pro

• Capture HDMI + embedded audio
• Loop-through HDMI signal
• Audio input via mic
• Extract HDMI embedded audio output via headphones

Input Features

• Z600MHz HDMI receiver, max input & loop through video: 4096x2160 60fps 4:4:4
• Custom EDID
• Support for RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:0 8/10/12-bit, YUV 4:2:2 12-bit
• Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
• 2-channel IEC60958 audio streams via 3.5mm microphone interface
• HDMI interfaces: HDMI 2.0, DVI-D

Process and Capture Features

• Video processing pipelines with ~700Mpixels/s processing bandwidth
• Capture videos up to 4096x2160, frame rates up to 240fps. Outputs include (Actual capture format will vary based on the host system USB interface and operating system. *):

  • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/60
  • 2560x1440p60
  • 2560x1080p/1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
  • 720x576p25
  • 720x480p30
• Output NV12/I420/YUYV/UYVY/RGB24/RGB32 videos
• Support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, colour format conversion, frame rate conversion, flip and mirror
• Output audio of HDMI signal or hosting machine (the computer) via 3.5 mm headphone jack
  Up to 2-channel IEC60958 audio streams

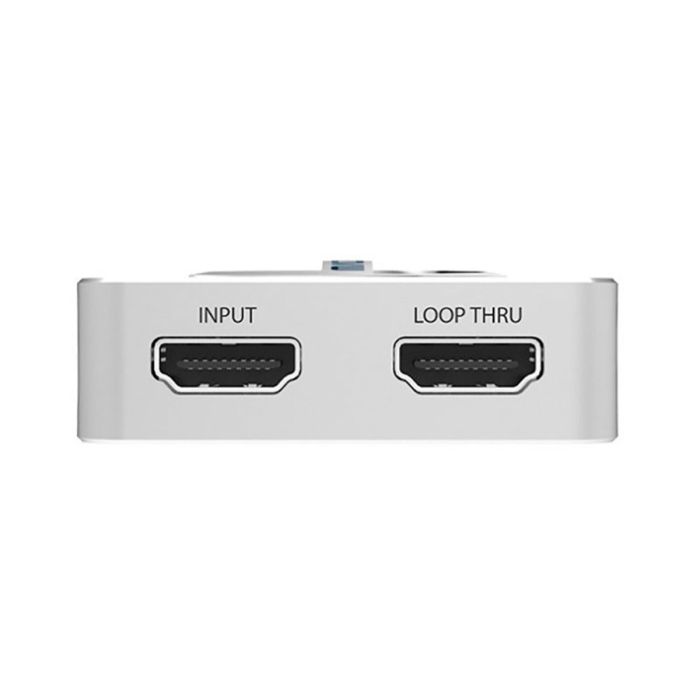

• Interface: Input Interface & Loop-through Interface
  One HDMI input + embedded audio
  One HDMI loop-through
  Support input & loop-through resolution up to 4096x2160 60fps 4:4:4

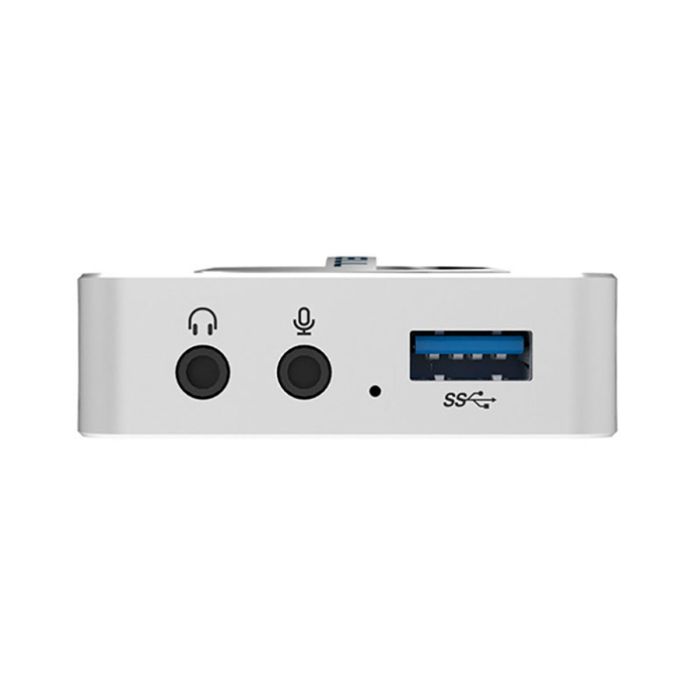

• Audio Input/Output Interface
  3.5mm audio jack for microphone/ headphones
• Host Interface
  USB 3.2 Gen 2x2 up to 20G throughput
  OS
  Windows, Linux, Mac, Chrome
• Capture format
  Support capture resolutions up to 4096x2160
  Support capture frame rates up to 240fps
  Capture 2-channel embedded audio or analog audio via 3.5mm microphone interface
  Actual capture format will vary based on the host system USB interface and operating system. Check the USB Capture HDMI 4K Pro supported resolutions and frame rates for Windows/Linux OS and for macOS
• Included Software
  USB Capture Utility, Capture Express, etc.
• Others
  Auto detection of input signal format
  Integrate the functions of a USB audio card. Playback audio via 3.5mm headphones interface
  Windows, Linux and Mac SDK
  Continuously work for 24hx7
  LED status indicator
  3-year warranty
  Form factor: 3.86 in (L) x 2.24 in (W) x 0.71 in (H) (98.1 mm x 56.8 mm x 18 mm)

• Included Software: USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting
• SDK & APIs:
  • The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
  • Windows DirectShow/Wave API/DirectSound/WASAPI
  • Linux V4L2/ALSA
  • macOS AVCaptureSession/AudioUnit
• Output Interface:

  • USB 3.2 Gen 2x2
  • Compatible Software
  • Zoom Rooms
  • Microsoft Teams
  • Skype for Business
  • Google Hangouts
  • GoToMeeting
  • Gstreamer
  • VLC
  • OBS Studio
  • XSplit
  • QuickTime Player
  • Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software
• Recommended OS

  • Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
  • Linux x86, x64 & ARM architecture, with 2.6.35 and above
  • Mac OS X 10.9 and above
  • macOS 10.12 and above
  • Chrome OS
• LED Indicator: Status LEDs indicate the working state of the device:

  • Pulsing slowly: input signal unlocked
  • On: input signal locked
  • Double blinks: memory abnormal or FPGA configuration failed
  • Off: firmware or power supply abnormal
• Form Factor

  • 3.86 in (L) x 2.24 in (W) x 0.71 in (H) (98.1 mm x 56.8 mm x 18 mm)
• Accessories

  • 1 × USB 3.2 Type C to Type C cable (80 cm) (up to 20Gbps, PN: ELE00053）
  • 1 × USB 3.2 Type C to Type A cable (80 cm) (up to 20Gbps, PN: ELE00053）
• Power Consumption

  • 5V max current: ~1.474A
  • Max power consumption: ~7.369W
• Working Environment

  • Operating temperature: 0 to 60 deg C
  • Storage temperature: -20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
