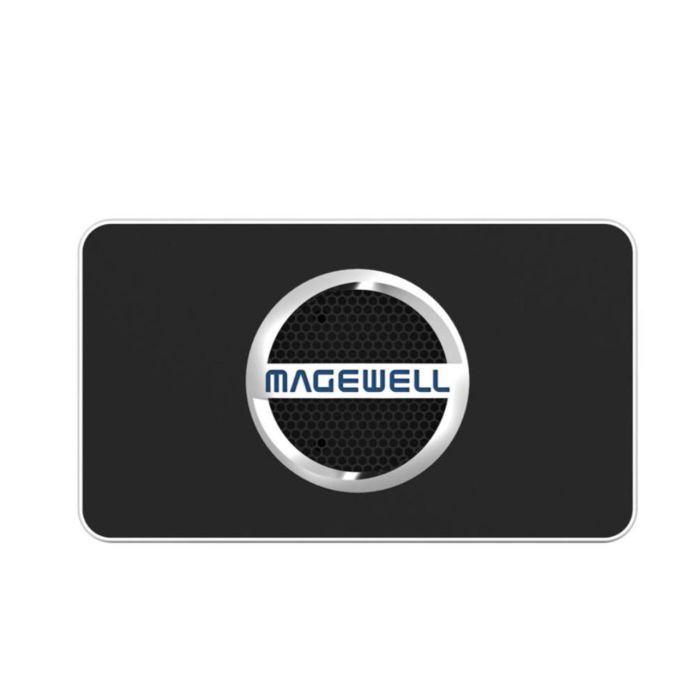

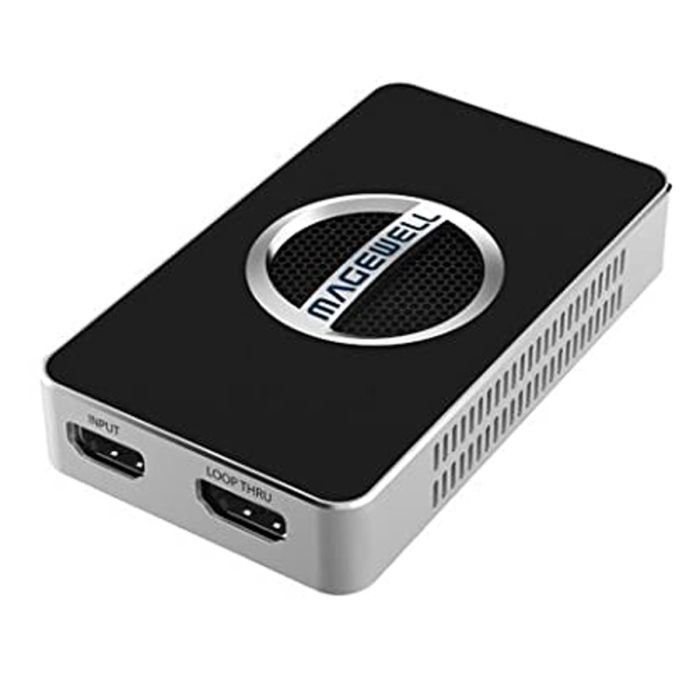

Magewell USB Capture HDMI4K Plus

• Capture HDMI + embedded audio
• Loop-through HDMI signal
• Audio input via mic
• Extract HDMI embedded audio output via headphones
• Support HDMI 2.0, 4Kp60 4:4:4 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S

Supported OS

• Windows: Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
• Linux (support x86, x64 & ARM architecture):
  • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
  • CentOS 6.5/7 (x86 & x64)
  • Fedora 25/26/27 (x86 & x64)
  • Red hat 6.5 and above (x86 & x64)
  • Other Linux OS with kernel version 2.6.35 and above
• Mac:
  • OS X 10.9/10.10/10.11
  • macOS 10.12 and above
• Chrome OS

Recommended OS (tested)

• Windows:
  • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
• Linux:
  • Ubuntu 12.04/14.04/16.04 (x86 & x64)
  • Ubuntu 17.04/17.10/18.04 (x64)
  • CentOS 6.5/7.2 (x86 & x64)
  • Fedora 25/26 (x64)
  • Red hat 6.5 (x86 & x64)
• Mac:
  • OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
  • macOS 10.12/10.13.2/10.13.3/10.14.3

Supported APIs

• Windows:
  • DirectShow
  • Wave API/DirectSound/WASAPI
• Linux:
  • V4L2
  • ALSA
• OS X/macOS:
  • QuickTime
  • AV Foundation

Supported Software

• VLC
• VirtualDub
• OBS
• XSplit
• vMix
• VidBlaster
• Wirecast
• Microsoft Media Encoder
• Adobe Flash Media Encoder
• Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

Input Interfaces

• HDMI:
  • DVI-D 1.0
  • HDMI 1.4
  • HDMI 2.0

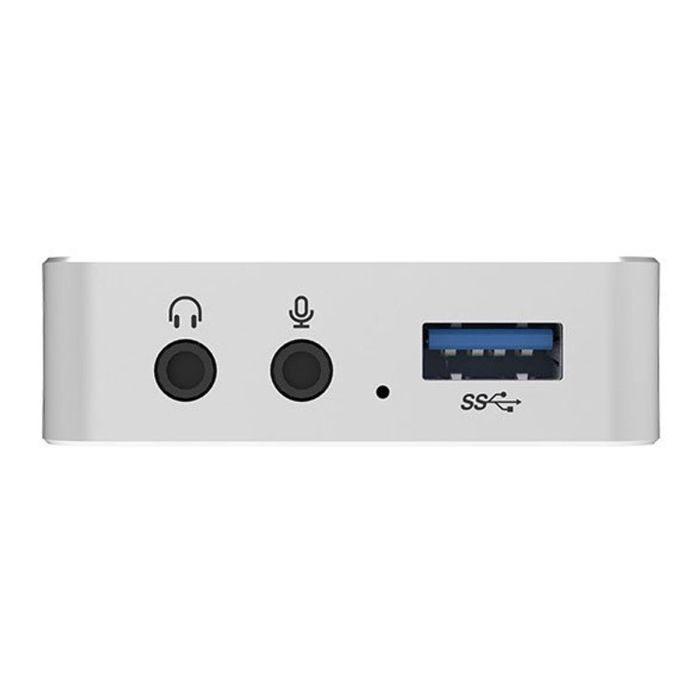

• 3.5mm audio jack: Microphone interface

Host Interface

• USB 3.0:
  • compatible with USB 2.0
  • compatible with USB 3.1 Gen 1

Output Interface

• 3.5mm audio jack: headphones interface

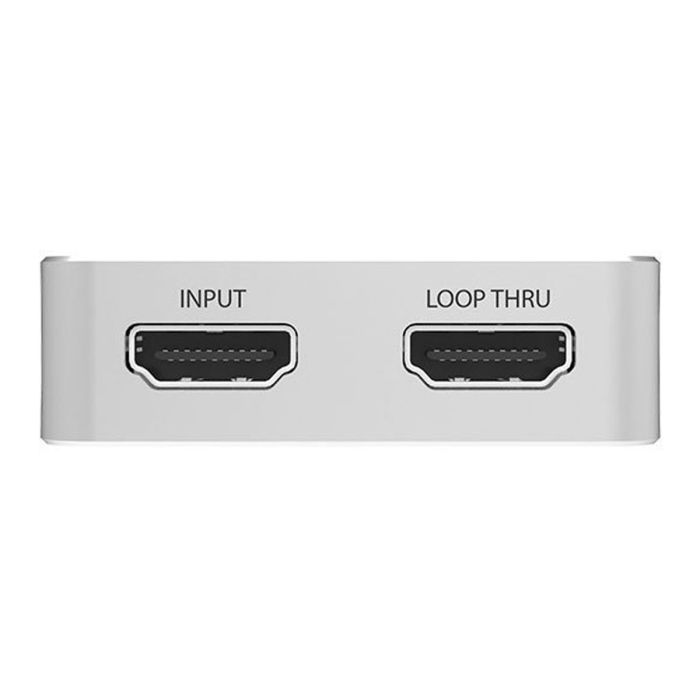

Loop-through Interface

• HDMI:
  • DVI-D 1.0
  • HDMI 1.4
  • HDMI 2.0

Input feature

• Support for input video resolutions up to 4096x2160

HDMI Specific Features

• 600MHz HDMI receiver
• Adaptive HDMI equalizer
• Support for customized EDID
• Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
• Full colorimetry support
• Support for up to 4096x2160 4:4:4 60fps input signals
• Support for 2 channel IEC60958 audio streams
• Support for extraction of audio formation information & channel status data
• Support for extraction of video timing information
• Support for extraction of 3D format information
• Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

Analog Audio Features

• Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
• Capture of analog audio via 3.5 mm microphone interface
• Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.

Video Capture format

• Support for capture resolutions up to 4096x2160
• Support for capture frame rates up to 120fps (Actual output frame rate can be limited by the USB bandwidth and internal working frequency. Typical output frame rates on the Intel USB3.0 controller are as follows.)
  • 1920x1080 YUY2 (up to 90fps)
  • 3840x2160 NV12 (up to 30fps)
• Support for NV12 & l420 4:2:0 8-bit (up to 4096x2160)
• Support for YUY2 & UYVY 4:2:2 8-bit (up to 4096x2160)
• Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048x2160)
• The default capture formats are YUY2 & NV12. More capture formats can be set using USB Capture Utility.

Video Processing Features

• Video processing pipelines with 640 Mpixels/s processing bandwidth
• Video cropping
• Video scaling
• Video de-interlacing:
  • Weave
  • Blend top & bottom field
  • Top field only
  • Bottom field only
• Video aspect ratio conversion:
  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of output aspect ratio
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
• Video color format conversion:
  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of output color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & ‘Extended gamut’ saturation range
• Video frame rate conversion
• Vertical flip and mirror

Multiple devices on one computer

• Support for connecting multiple USB devices to one system
• Support for setting the device serial number as the device name shown in the system using USB Capture Utility

SDK

• The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

Firmware Upgrade

• Multiple devices in one system can be upgraded simultaneously

LED Indicator

• Status LEDs indicate the working state of each channel:
  • Pulsing slowly: idle
  • On: input signal locked
  • Off: input signal unlocked
  • Double blinks: memory failed or FPGA configuration failed

Form Factor

• 98.1mm (L) x 56.8mm (W) x 17mm (H)

Power Consumption

• 5V max current: ~ 1.4A
• Max power consumption: ~ 7W

Working Environment

• Operating temperature: 0 to 40 deg C
• Storage temperature: –20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing

• USB 3.0 cable
