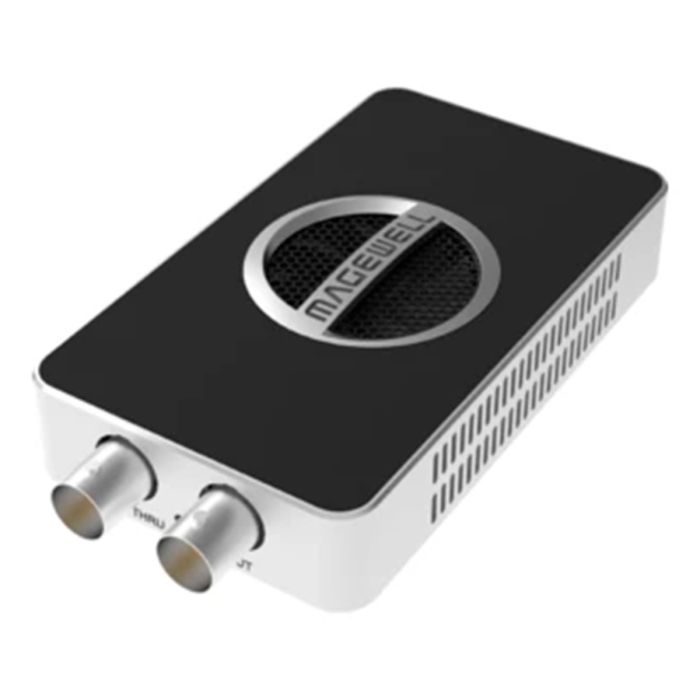

Magewell USB Capture SDI 4K Pro

• Ultra-high Definition Capture: Supports resolutions up to 4096x2160 and frame rates up to 240fps, enabling professional-grade captures for any project.
• Embedded & Analog Audio Support: Capture 2-channel embedded audio directly via SDI or input analog audio via a 3.5mm Line In jack. You can also extract and output SDI embedded audio through the Line Out interface.
• Efficient FPGA-Based Processing: With FPGA-based processing, the USB Capture SDI 4K Pro takes the load off your PC's CPU, offering smooth, low-latency video capture even during high-demand sessions.
• High-Speed Connectivity: Featuring a USB 3.2 Gen 2x2 interface, the device supports up to 20Gbps throughput for maximum performance and reliability.
• Plug-and-Play Convenience: Automatic signal detection and driver-free setup ensure hassle-free operation on Windows, MacOS, Linux, and ChromeOS. Simply connect the device and start capturing.

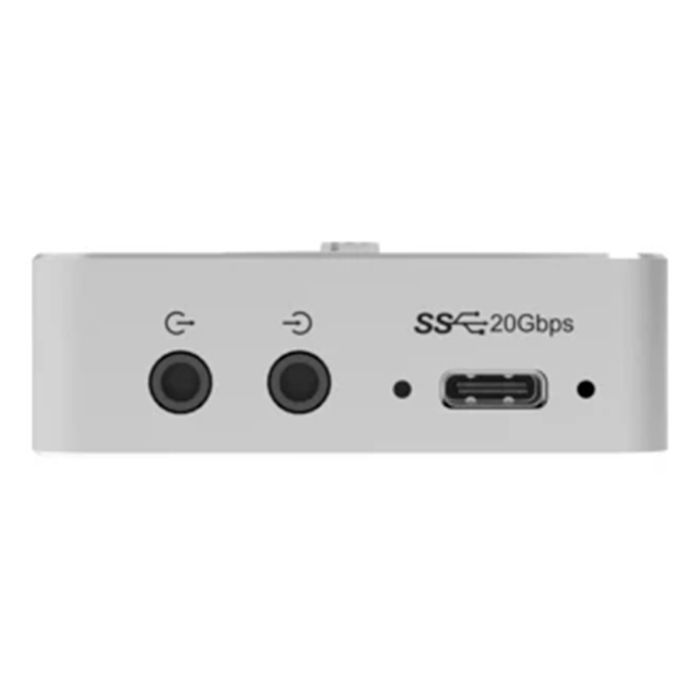

• Versatile Audio Integration: The 3.5mm audio input/output jacks allow you to incorporate external audio for complete flexibility in your production pipeline.

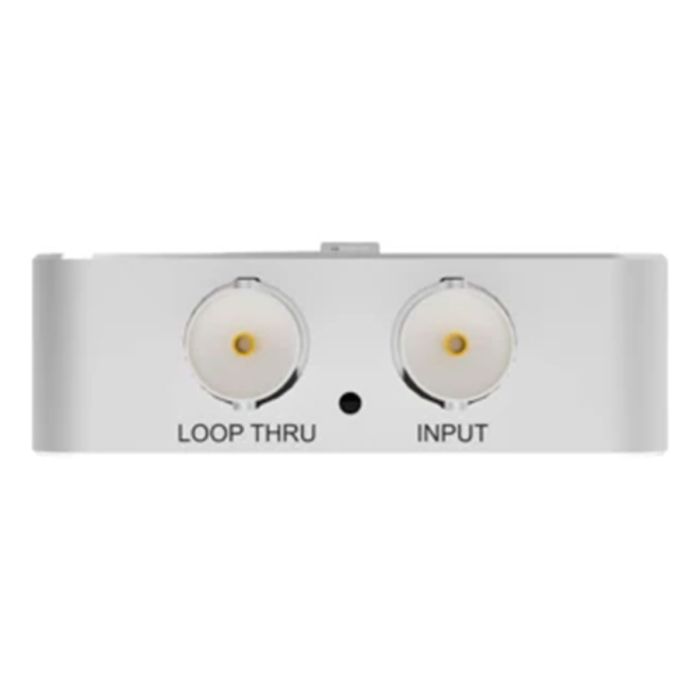

• Loop-Through SDI Signal: Maintain signal integrity with a built-in SDI loop-through port, perfect for monitoring or chaining additional devices.

The USB Capture SDI 4K Pro is ideal for use in live streaming, broadcasting, post-production, and AV capture applications, where high-quality video and reliable performance are critical.

Additional Benefits:

• Compact Design: Small yet powerful, measuring just 4.35" x 2.24" x 0.71" (110.6 mm x 56.8 mm x 18 mm).
• 24/7 Operation: Built to run continuously, ensuring reliability even in demanding, always-on environments.
• 3-Year Warranty: Enjoy peace of mind with a robust warranty for continued support and service.

Input Features

• Max input & loop through signal at 12G 4096x2160 60fps 10Bit YUV4:2:2
• Video format supports RGB/YUV 4:4:4 8/10/12-bit, YUV 4:2:2 12-bit, YUV 4:2:0 8/10/12-bit
• Up to 8 channels, 24-bit SDI embedded audio, with a sample rate of 192kHz
• Audio input through via 3.5mm line in supports 2-channel IEC60958 standard audio stream

Process and Capture Features

• Video processing pipelines with ~700Mpixels/s processing bandwidth
• Supported color depth for video capture is up to 10-bit
• Capture videos up to 4096x2160, frame rates up to 240fps. Outputs include (actual capture frame rate can be limited by the USB bandwidth and internal working frequency.*):

  • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/60
  • 2560x1440p60
  • 1920x1080p/1280x720p 23.98/24/25/29.97/30/50/59.94/60
  • 720x576p25
  • 720x480p30
• Output P010/Y210/NV12/I420/YUY2/UYVY/RGB24/RGB32 videos
• Output audio of SDI signal via 3.5 mm line out
• Supports 2-channel IEC60958 standard audio stream

Included Software

• USB Capture Utility enables users to easily check and set the capture-related parameters, upgrade firmware of the capture device and export info needed for troubleshooting

SDK & APIs

• The MWCapture SDK provides functions including signal status extraction, capture configuration and real-time audio & video capture, etc
• Windows DirectShow/Wave API/DirectSound/WASAPI
  Linux V4L2/ALSA
• macOS AVCaptureSession/AudioUnit

Output Interface

• USB 3.2 (20 Gbps) Type-C

Compatible Software

• Zoom Rooms
• Microsoft Teams
• Skype for Business
• Google Hangouts
• GoToMeeting
• Gstreamer
• VLC
• OBS Studio
• XSplit
• QuickTime Player
• Any other DirectShow/V4L2/AVCaptureSession based encoding or streaming software

Recommended OS

• Windows 10/11/Server 2016/Server 2019/Server 2022 (x86 & x64) and above
• Linux x86, x64 & ARM architecture, with 2.6.35 and above
• Mac OS X 10.9 and above
  macOS 10.12 and above
• Chrome OS

LED Indicator

• Status LEDs indicate the working state of the device:
• Pulsing slowly: input signal unlocked
• On: input signal locked
• Double blinks: memory abnormal or FPGA configuration failed
• Off: firmware or power supply abnormal

Form Factor

• 4.35 inches (L) x 2.24 inches (W) x 0.71 inches (H) (110.6mm x 56.8mm x18mm)

Power Consumption

• 5V max current: ~1.439A
• max power consumption: ~7.194W

Working Environment

• Operating temperature: 0 to 60 deg C
• Storage temperature: -20 to 70 deg C
• Relative Humidity: 5% to 90% non-condensing
