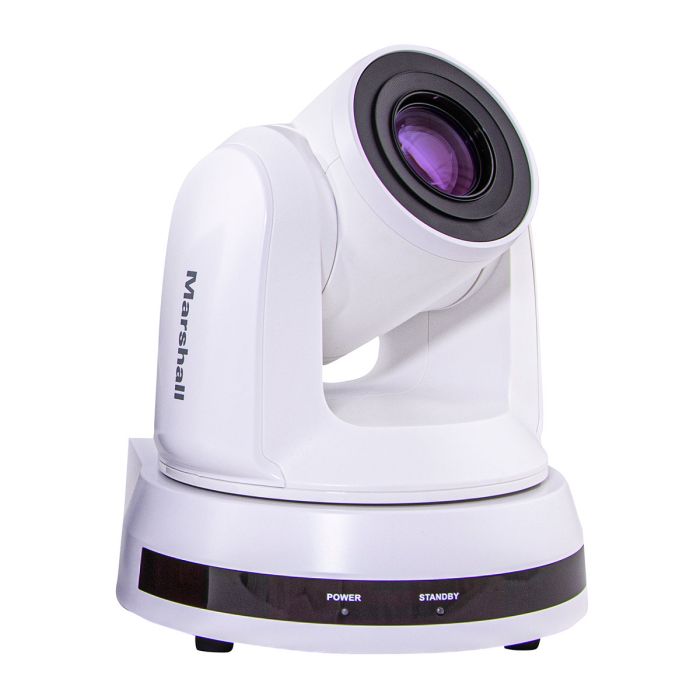

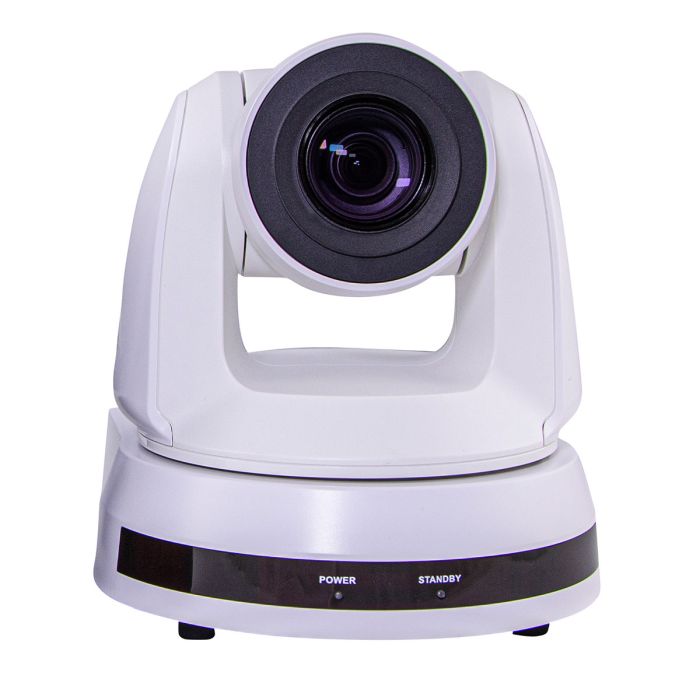

Marshall Electronics 20x PTZ Camera with IP, 3GSDI, and HDMI (White)
20x PTZ Camera with IP, 3GSDI, and HDMI (White)
SKU: CV620-WI
Marshall CV620-BI/WI features a 20x optical zoom range and flexible IP, 3GSDI, and HDMI simultaneous outputs with clear Full-HD images up to 1920x1080p at 60fps. Remote adjust and match settings include Iris, Zoom, Pan/Tilt, White Balance, Exposure, Pedestal, and many more over long distances via IP, VS-PTC-IP controller, Video Management Software (VMS), Software GUI, OBS Plugins/Docks, vMix and compatible 3rd party control decks.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
- 2 Megapixel Full-HD Sensor (Sony 1/2.8")
- 20x Optical zoom (5.3mm~110mm) starting at 60° H.AOV
- 340° pan and 120° tilt range with various PT selectable speeds
- 3GSDI, HDMI and IP (H.264) available outputs
- IP formats: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, TCP, SRT, MPEG-TS, RTMP, RTMPS
- Full-HD: 1920x1080p, 1920x1080i (interlaced) and 1280x720p
60, 59.94, 50, 29.97, 25 frames per second - 3.5mm TRS Stereo Audio over I/O cable (Mic/Line)
- 12V Power cable included (16W max) or PoE+ (18W max)
- Operating Temp: 0 to 40°C, Storage Temp: -20 to 60°C
- Free-D protocol support and CGI protocol commands
- Sensor: SONY IMX327
- Video Format: 1080p/60,1080p/30
1080p/59.94,1080i/59.94
1080p/50,1080p/25
1080p/29.97
1080i/60,1080i/50
720p/60
720p/59.94
720p/50 - Video Output (HD) Interface: 3G-SDI / HDMI / Ethernet (IP)
- Optical Zoom: 20X
- Horizontal Viewing Angle: 60° (Wide) to 3° (Tele)
- Pan/Tilt Angle: 340° pan and 120° tilt
- Panning Speed: variable
- Aperture: F1.6~F3.6
- Focal Length: (lens spec) 5.33~110 mm
- Shutter Speed: 1/1 to 1/10,000
- Minimum Object Distance: ∞~1.5m
- Minimum Illumination: 1.0Lux (F1.6, 50IRE, 30fps)
- Focus System/; Auto, One-push AF, Manual
- Gain Control: Auto/ Manual
- White Balance: Auto/ Manual
- Exposure Control: Auto/Manual
- 3D NR: yes
- Aperture: F1.6~F3.6
- Focal Length (lens spec): 5.33~110 mm
- Image Flip: mirror/ flip/ mirror + flip
- Preset Positions: 128 savable with optional transition speeeds
- Control Interface: VISCA/ VISCA over IP/ Onvif/ Webpage/ IR Remote
- Control Protocol: ONVIF,VISCA, PELCO D
- Tally Light: Yes, Front Tally Light
- PoE: IEEE 802.3at(PoE+)
- Video Stream: RTSP, RTMP, RTMPS, SRT, MPEG-TS
- Video Compression: H264: 25/30/50/60 fps 1080p/720p
- MJPEG 1080p 30/15 fps
- Audio Input: Line in/ Mic in
- Audio Output: Ethernet / SDI / HDMI
- IR Pass-through: Yes
- IR Receiver: Yes
- IR Remote Control: Yes
- Power Consumption: DC: 16W max
- PoE+:18W max
- Weight: 1.9 Kg
- Dimensions: 185 x 186 x 174 (mm)
- Storage Temps: -20 to 60°C
- Operating Temps: 0°C to 40°C
