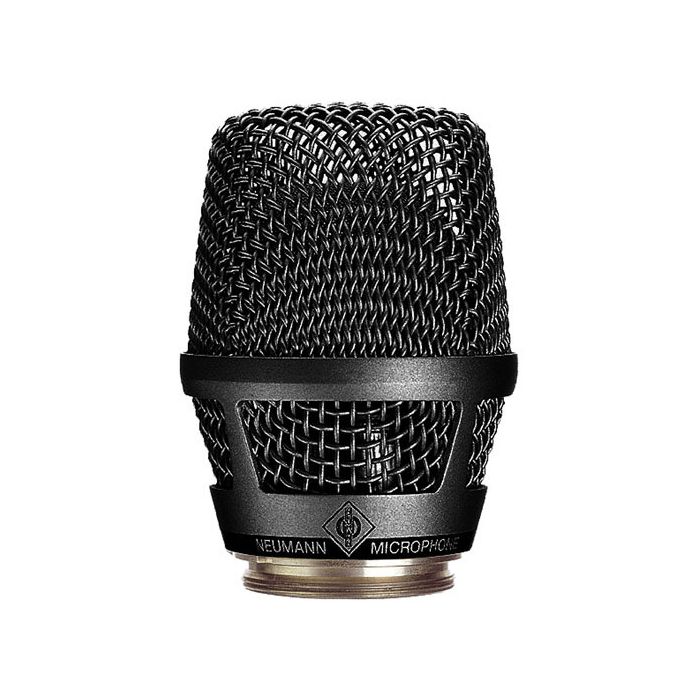

Neumann KK 105 HD Black Condenser Microphone Capsule
Heavy Duty Condenser Super-Cardioid Polar Pattern Microphone Capsule designed for use with Sennheiser SKM 5200/5000
MPN: KK-105-HD-BK SKU: 008560
The heavy-duty variant, KK 105 HD, has integrated foam pop protection instead of the fine wire gauze screen of the KK 105 S, for even greater resistance to pop sounds. The foam pores also have a greatly increased surface area and can keep extreme moisture away from the capsule.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 10-14 Days
Thanks to the combination of the KK 104 S and KK 105 S capsule heads with the wireless Sennheiser 5200/5000 series, Neumann sound is also available in the wireless domain.
This opens up new sound dimensions for the most demanding live-performance engineering.
Here the key areas of expertise of Neumann and Sennheiser are united in an unprecedented manner to create products with no compromises for professional use. Neumann capsules have already been used in combination with the Sennheiser SKM 5200 handheld transmitter for the past 10 years on some of the largest stages of the world and at mega-events such as the Eurovision Song Contest, where the highest demands are placed on the sound and transmission reliability.
These systems reveal their strengths particularly in conjunction with Sennheiser in-ear monitoring.
The design of Neumann capsule heads for the Sennheiser handheld transmitters is based on the extremely successful, multiple award-winning wired stage microphones KMS 104 and KMS 105. From these microphones the capsule heads have acquired not only their outstanding sound characteristics and technical specifications, but also their robust construction and effective suppression of pop sounds and handling noise.
The sound of the capsule heads can be described as full, transparent and naturally warm, without excessive accentuation of the bass. Due to the „single polar pattern design“, the polar patterns are very uniform over the entire frequency range, thus providing the basis for excellent resistance to feedback.
The capsules, and also of course the transmitter unit, are available in both nickel and black. Included with the capsule heads is a large nylon bag, which can hold not only the capsule but also the handheld transmitter, battery packs and additional accessories.
The capsule heads KK 104 S, KK 105 S and KK 105 HD were developed especially for the wireless Sennheiser 5200/5000 series.
- Neumann capsule head engineering expands with Sennheiser liveperformance engineering
- Super-Cardioid (KK 105 S) characteristic
- Low susceptibility to handling noise
- Built-in, highly effective suppression of popping noises
- Easy dismantling for cleaning
- Pure, open, and neutral sound transmission
- Directional pattern: Super-Cardioid
- Frequency range: 80 Hz ... 20 kHz
- Sensitivity at 1 kHz into 1 kohm: 1.7/1.3 mV/Pa ± 1 dB
- Signal-to-noise ratio, CCIR1 (rel. 94 dB SPL)): 42/50 dB
- Signal-to-noise ratio, A-weighted (rel. 94 dB SPL): 63/61 dB-A
- Equivalent noise level, CCIR: 42/44 dB
- Equivalent noise level, A-weighted: 31/33 dB-A
- Max. SPL for THD 0.5%: 148/150 dB
- Maximum SPL for THD 3%: 153/155 dB
- Frequency range: 450 - 960 MHz
- Switching bandwidth: 24 MHz
- Transmitter frequencies: 16
- RF-output: 50 mW (-3 dB)
- Noise suppression system: Sennheiser "HiDyn plusTM"
- Weight incl. transmitter + power supply unit: approx. 325 g
- Diameter: 48 mm
- Length (+ transmitter): 257 mm
- Capsule Head KK 105 HD (bk)
- Padded nylon bag
