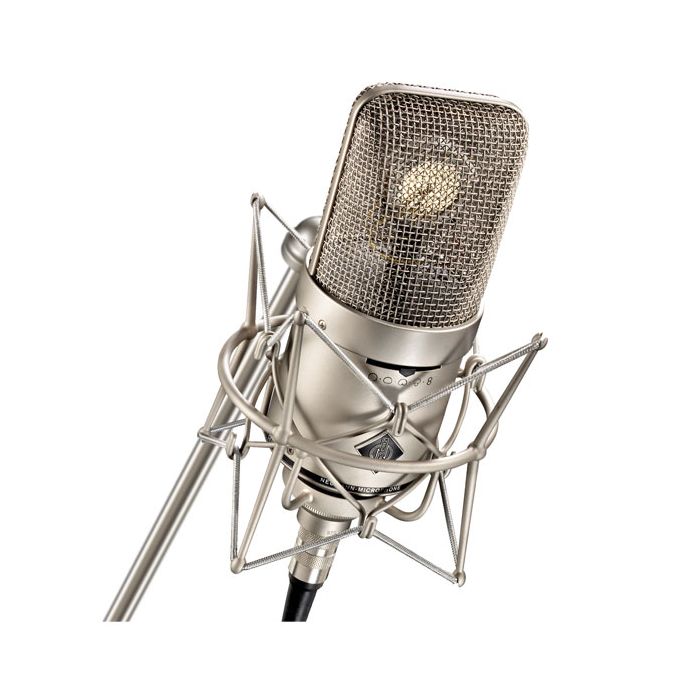

Neumann M 149 Studio Tube Condenser Microphone
Variable Dual-Diaphragm Vacuum Tube Microphone
MPN: M-149-TUBE SKU: 008403
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 10-14 Days
Neumann’s M 149 Tube is a vacuum tube condenser microphone that still enjoys a cardioid characteristic. The K 47 dual diaphragm capsule takes pride of place at the foundation of this the M 149’s mechanics, a component inherited from this model's now mythical predecessors, the U 47 and the M 49.
Operating as an impedance converter, a tube comes after the capsule. Guaranteeing an exceptionally low self-noise level, the next stage is an efficient, transformerless output circuit. This pioneering combination of current tube technology with the most advanced solid-state circuitry was critical in awarding the 1997 TEC Award to the related M 149 Tube mic.
Like all Neumann tube microphones, the M 149 Tube comes with a stylish satin nickel finish. The M 149 Tube can also link tremendously long microphone cables without affecting the quality of the audio signal. Additionally, it has a flat frequency response from 20 Hz to well above 20 kHz and selects a high-pass filter, advancing in half-octave steps between 20 Hz and 160 Hz (-3dB).
The microphone is shipped as a complete set in a premium aluminium case. Included with the microphone are a cable, metal swivel mount for a mic stand and a compact universal power supply for standard mains sockets.
- Switchable tube microphone
- Transformerless circuitry
- High output level
- Pressure gradient transducer with the M 49 capsule
- Acoustically very open wire mesh cage
- Nine directional characteristics: omni, wide angle cardioid, cardioid, hypercardioid, figure 8, and one intermediate position each
- 7fold switchable low frequency roll-off
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Omnidirectional, wide angle cardioid, cardioid, hypercardioid, figure-8 plus one intermediate position each
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 34/47/62 mV/Pa1)
Rated impedance: 50 ohms
Rated load impedance: 1 kohms
Equivalent noise level, CCIR2): 28/25/23 dB1)
Signal-to-noise ratio, (rel. 94 dB SPL): 66/69/71 dB1)
Typical SPL (tube characteristic): K < 0,5 %: 120 dB, K < 5 %: 136 dB
Maximum output voltage: 18 dBu
Dynamic range of the microphone amplifier (A-weighted): for < 0,5% THD (for < 5% THD) 101 (121) dB
Powering: Power supply N 149 A
Matching connectors: Microphone DIN8F, Power supply XLR3F
Weight and Dimensions
- Weight: 730 g
- Diameter: 70 mm
- Length: 201 mm
- M 149 Tube Microphone
- N 149 A Power supply incl. power cable
- KT 8 Connecting cable
- EA 170 Elastic suspension
- Aluminium case
- Dust cover
