Neumann Miniature Clip Mic System - MCM 114 Set Drums (MC 7)
Complete set of the Neumann Miniature Clip Mic system for snare, tom, stand tom, percussion instruments
MPN: 008710 SKU: 008710

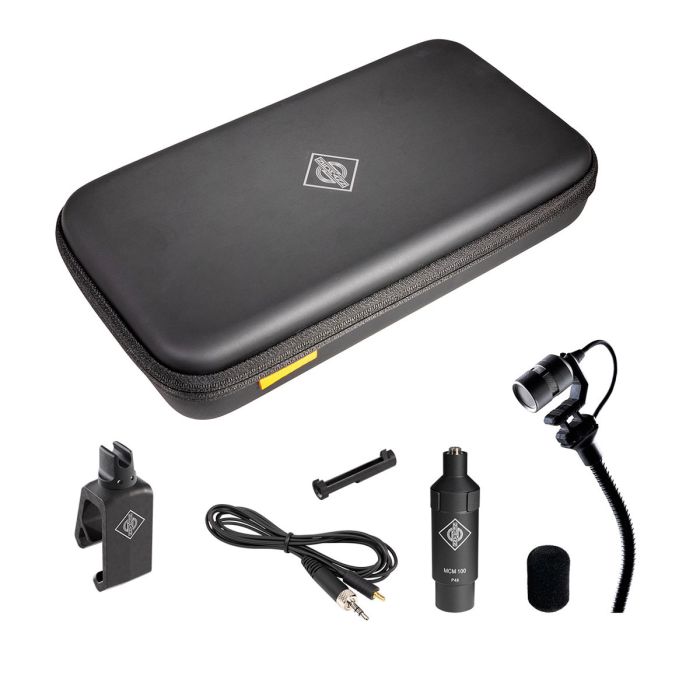

Complete set for using the Neumann Miniature Clip Mic MCM system on percussion instruments and drums such as snares, toms, stand toms and timpanis. Contains: KK 14 capsule, SH 150 gooseneck, KC 1 cable brace, AC 31 cable, MCM 100 output stage, WS 110 wind shield, MC 7 clip. Delivered in a handy soft case.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 2-3 Days
The Miniature Clip Mic System MCM is designed for close miking all acoustic instruments without many of the “natural” compromises the industry has experienced, including that in sound, ease of use, and mounting options, Orchestras, theaters, and rentals can soon rely on the full signature sound of every acoustical instrument.
The Neumann KK 14 cardioid capsule redefines the standard for a rich, natural sound in close miking as well as the signal fidelity and precision that electret Systems can deliver. Due to a completely new production process, the KK 14 overcomes former limitations like inconsistencies in sensitivity and tonality. It can take any SPL; users will not have to work against microphone tolerances any longer. Built from titanium, this capsule will last not just for a season, but for decades, lowering the cost of ownership tremendously. You get next-level sound and a great variety of self-adjusting, pro-level mounting options.
An integral part of the Miniature Clip Mic System MCM is an exhaustive palette of microphone mounting clips that allow for simple and reliable microphone positioning on any instrument. They are gentle to even the most sensitive surfaces and make mounting quick and easy. Users can mount the Miniature Clip Mic System MCM in a matter of seconds, with only one hand for most instruments.
In order to interface natively with all relevant wireless transmitters, there are four interchangeable cables with either a
3,5 mm jack, Lemo, 4-pin mini-XLR, or MicroDot connector, eliminating the need for adapters. The microphone also works on a wired connection using the high-end output stage.
The Miniature Clip Mic System MCM redefines the sound for close miking acoustic instruments, reduces efforts for sound check and mounting, and lowers the overall cost and investment. All parts of this modular System are available individually; every part is easily replaceable. It might look small, but it will expand the possibilities that your key accounts can promise. And, of course, it connects to all major wireless solutions on the live market.
KK-14
Capsule head for the Neumann MCM System, cardioid, titanium housing, max. SPL 153 dB, diameter 12 mm
MC-7
Clip to mount the MCM gooseneck on snare, tom, stand tom, timpani
MCM-1000
Output stage for the Neumann MCM System, input: 3.5 mm jack, output: XLR-3M, requires 48 V phantom power
WS-110
Windscreen for the Neumann MCM System
Miniature Clip Mic System MCM:
- Elevates electret technology to Neumann standards: Defines an audible new reference in sound for miniature close miking
- 153 dB Max SPL – one capsule for both loud and very soft instruments
- Interfaces with most transmitter bodypacks (3,5 mm jack / MicroDot / Lemo / 4-pin mini XLR)
- Manual assembly in Germany to achieve superior tonal consistency of microphones
- No twisted cables thanks to the gooseneck connector that allows for rotation
- Comprehensive line-up of instrument-specific mounting solutions for reliable mic placement that are gentle to the instrument and easy to use
- Neumann aesthetics and handling
Technical Data - Capsule KK 14 with Output Stage MCM 100
- Acoustical operating principle: Pressure gradient transducer
- Polar pattern: Cardioid
- Frequency response: 20 Hz...20 kHz
- Rated impedance: 50 ohms
- Rated load impedance: 1000 ohms
- Signal-to-noise ratio (4), CCIR (5): 63 dB
- Signal-to-noise ratio (4), A-weighted (5): 71 dB
- Equivalent noise level, CCIR (5): 31 dB
- Equivalent noise level, A-weighted (5): 23 dB-A
- Max. SPL (6) for THD < 0.5 %: 153 dB SPL
- Power supply: 48 V ± 4V (P48, IEC 61938)
- Current consumption: 3.5 mA
- Required connectors: XLR 3 F
Permissible atmospheric conditions (1)
- Operating temperature range: 0 °C … +40 °C
- Operating Humidity range: 0 %…90 % rel. hum
- Storage temperature range: –20 °C … +70 °C
- Storage Humidity range: 0 %…95 % rel. hum
94 dB SPL ≙ 1 Pa = 10 μbar 0 dB ≙ 20 μPa
1) All values are for non-condensing humidity. The values are valid for clean and well-looked-after microphones or microphone capsules, respectively. Any kind of pollution of capsules and membranes may restrict the said values
2) at 1 kHz into 1 kohms rated load impedance, tolerance ± 2 dB
4) re 94 dB SPL
5) according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting to IEC 61672-1, RMS
6) THD of microphone amplifier at an input voltage equivalent to the capsule output at the specified SPL
- 1 x KK 14
- 1 x SH 150
- 1 x KC 1
- 1 x AC 31 (1.8 M)
- 1 x WS 110
- 1 x MCM 100
- 1 x MC 7
- 1 x Safety Guide
- 1 x Quick Guide
- 1 x Soft case
