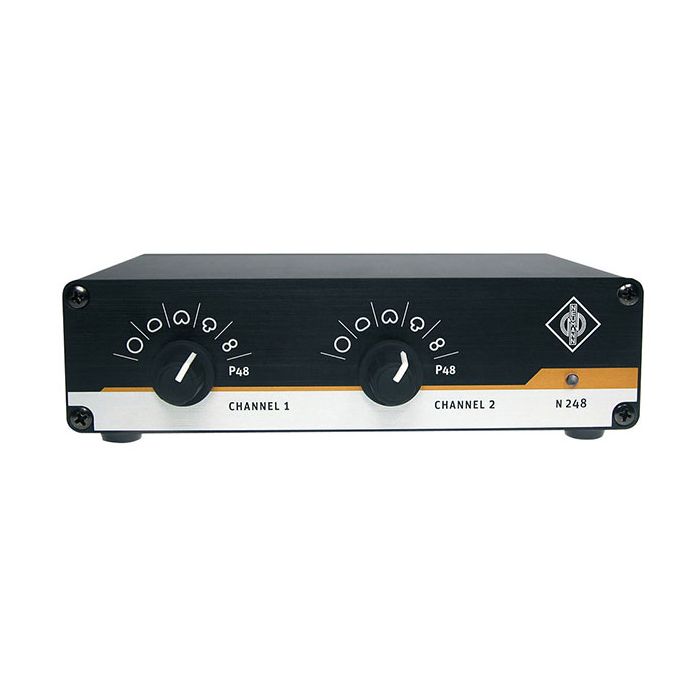

Neumann N 248 Microphone Power Supply
Power Supply for Neumann Microphone Range
MPN: N-248 SKU: 008537
The Neumann N 248 Power Supply provides 48 V phantom power to the Neumann Microphone range. Able to supply either two mono or one stereo microphone, the N 248 can also be used with the Neumann TLM 170 R to control its directional patterns remotely.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 10-14 Days
The N 248 supplies one stereo microphone, or two mono condenser microphones with 48 V phantom power (P48). All connectors are of XLR 3 type. The audio signal outputs are DC-free. The 5 directional patterns of the TLM 170 R can be remote controlled with rotary switches.
The remote control operates by varying the nominal phantom voltage of 48 V over a range of ± 3 V (patented). As in standard operation, cable lengths up to 300 m are permissible. Set to P48, all conventional microphones can be used as well.
Even mixed operation is possible, with one channel remote controlling a TLM 170 R, while the second output supplies a conventional microphone.
Mains voltage: EU 230 V/50 Hz
Mains voltage: US 117 V/60 Hz
Mains voltage: UK 230 V/50 Hz
DC voltage input: 5 ... 15 V
Power consumption: max. 3 VA
DC voltage output: 48 V +/- 3 V each
Current output: max. 5 mA each
H x W x D: 143 x 38 x 103 mm
Weight: 415 g
