Neumann U 87Ai Condenser Microphone Studio Set (Nickel)
Variable Pattern Studio Condenser Microphone Set
MPN: U-87-AI-STUDIO SKU: 008660
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days

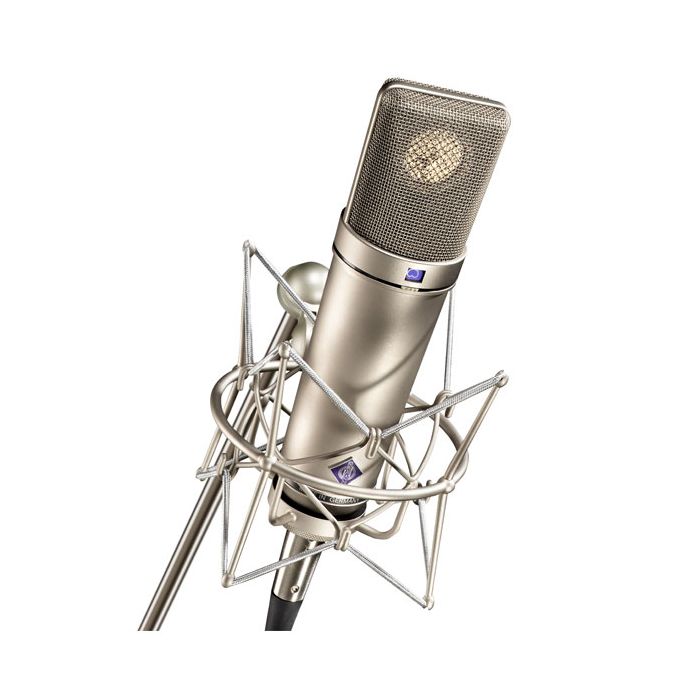

Neumann’s U 87 Ai condenser microphone is a large diaphragm microphone with three polar patterns and a distinctive frequency and transient response quality. It is a respectable option for the majority of general purpose applications in studios, for broadcasting, film and television. Users know the microphone almost immediately by its unique design. The U 87 Ai is deployed significantly as a vocal microphone for all kinds of music and speech, as a main microphone for orchestra recordings and as a spot mic for single instruments.
The U 87 offers a variety of features and versatility that make it to one of the most desirable mics available. Your ideal choice for a vocal microphone, suited to all types of music and speech, it’s renowned for its warm and well balanced characteristics.
The U 87 is armed with a large dual-diaphragm capsule with three directional patterns: omnidirectional, cardioid and figure-8. These are selectable with a switch below the headgrille.
A 10 dB attenuation switch is situated on the rear. It enables the microphone to deal with sound pressure levels up to 127 dB without distortion. Furthermore, the low frequency response can be reduced to compensate for proximity effect.
- Variable large diaphragm microphone
- Pressure-gradient transducer with double membrane capsule
- The studio microphone classic
- Three directional characteristics: omni, cardioid, figure-8
- Switchable low frequency roll-off
- Switchable 10 dB pre-attenuation
- Ideal as main and as support microphone in the most differing recording situations
Acoustical operating principle: Pressure gradient transducer
Directional pattern: Omnidirectional, cardioid, figure-8 plus
Frequency range: 20 Hz ... 20 kHz
Sensitivity at 1 kHz into 1 kohm: 20/28/22 mV/Pa
Rated impedance: 200 ohms
Rated load impedance: 1 kohms
Equivalent noise level, : 26/23/25 dB
Equivalent noise level, A-weighted: 15/12/14 dB
Signal-to-noise ratio, CCIR (rel. 94 dB SPL): 68/71/69 dB
Signal-to-noise ratio, A-weighted (rel. 94 dB SPL): 117 dB (cardioid)
Maximum SPL for THD 0.5%: 17 dB (cardioid)
Maximum SPL for THD 0.5% with preattenuation: 127 dB
Maximum output voltage: 390 mV
Dynamic range of the microphone amplifier (A-weighted): 105 dB
Supply voltage (P48, IEC 61938): 48 V ± 4 V
Current consumption (P48, IEC 61938): 0.8 mA
Matching connectors: XLR3F
Colour: Nickel
Dimensions and Weight
- Diameter: 56 mm
- Length: 200 mm
- Weight: 500 g

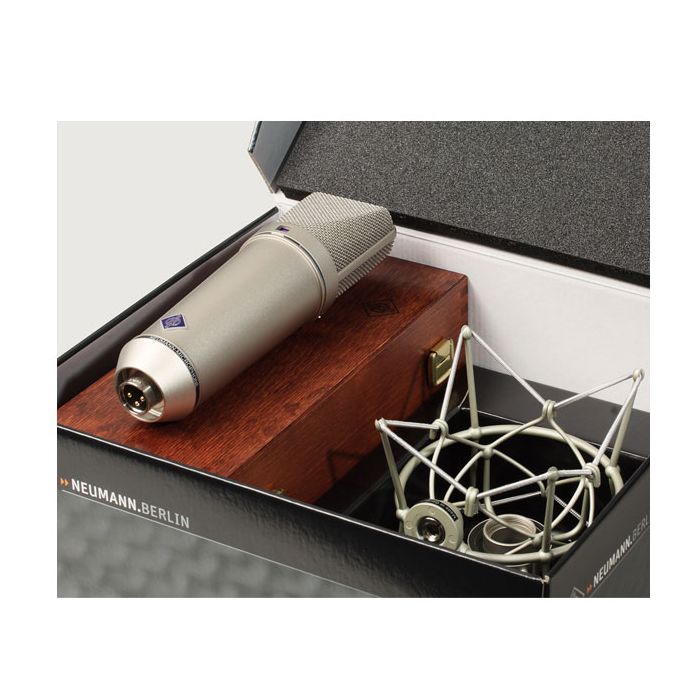

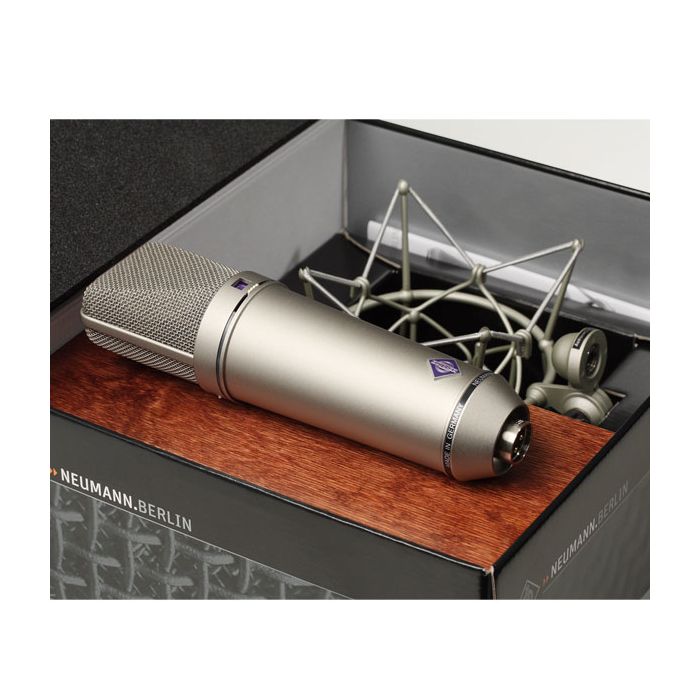

- Microphone U 87 Ai
- Wooden Box
- EA 87 Elastic suspension
