Nixer RLC64 (Ravenna) - 1U 19in Rack Mount AoIP Monitoring Tool and Mixer
Compact 64Ch Dante or Ravenna/ST2110-30 Monitoring
SKU: NIX00664R

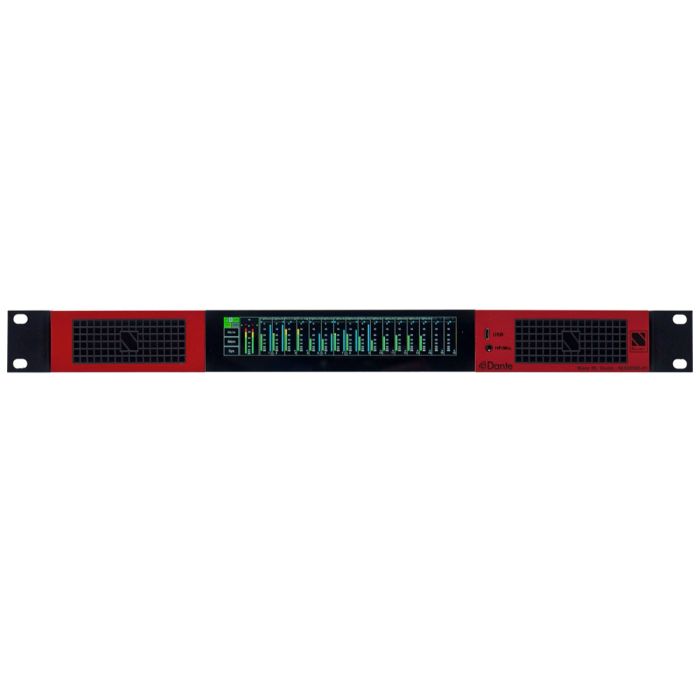

The Nixer RLC64 is an AoIP confidence monitoring unit based around a very compact 1RU 19” rack mounted enclo- sure. It has been designed for operators working in critical events to provide cost effective confidence monitoring.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days - Please check availability
The Nixer RLC64 is an AoIP confidence monitoring unit based around a very compact 1RU 19” rack mounted enclo- sure. It has been designed for operators working in critical events to provide cost effective confidence monitoring.
The RLC64 allows two modes of operation, a mixing mode which can mix up to 64 channels at 48kHz (32 channels at 96kHz) plus microphone input (via headphone connector) and AES input to create a 67 into 2 mixer. Alternatively, it can be set into a simple Listen mode where touching a channel instantly routes to the LR output and cancels any previous selection.
The outputs of the LR bus are presented to the user via the inbuilt 4mm x 9mm full range speakers or via the 3.5mm headphone jack. The speakers are automatically muted when a headphone jack is inserted. Simultaneous outputs are also available in the form of the stereo balanced line outputs and AES output accessed via XLR connectors on the rear of the RL64. The mix output is also routed to the AoIP output.

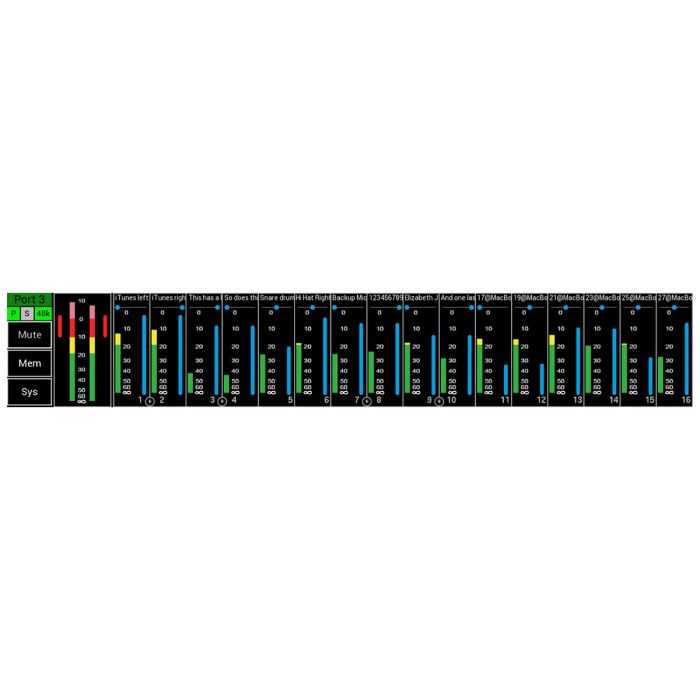

The RLC64 units are operated and controlled via the large letterbox 6.6” diagonal (168mm) 1440 x 240 24-bit colour LCD and capacitive touch panel.
A simple, elegant and intuitive to navigate menu system has been designed, allowing the user quick and easy access to all the features of the RLC64. The high-resolution screen is easy to read presenting comprehensive meter- ing, routing and status information to the user.
Firmware updates of the RLC64 are achieved via a dedicated USB micro AB connector on the front panel. There is also a dedicated 3.5mm jack socket for the headphone output.

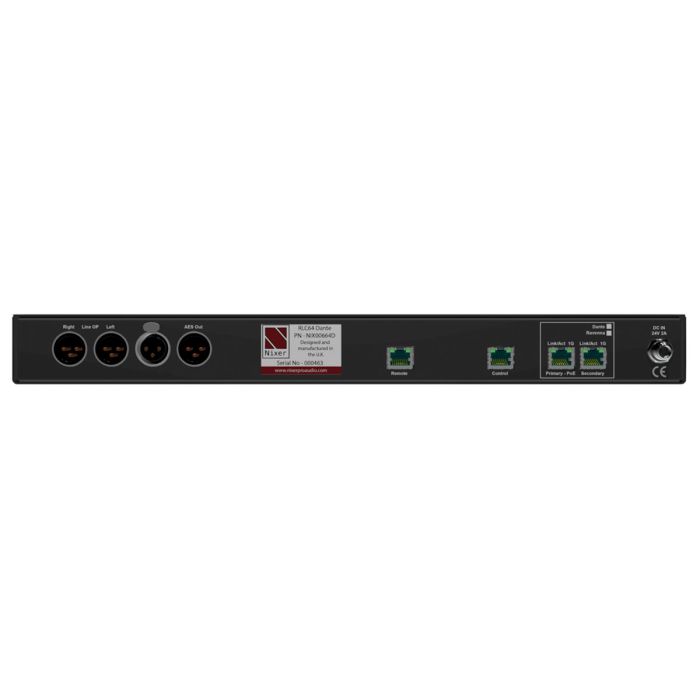

On the rear of the RLC64 there is a Primary and Secondary port for the AoIP input, 2 x balanced line outputs on 3 pin male XLRs and AES output also on 3 pin male XLR. These outputs can be configured to follow the main volume settings of the speakers/headphones or they can also be set to follow the main Mute control.
Additionally, there is an AES input via 3 pin female XLR connector
The RLC64 can be powered via either of the two 2.5mm DC input connectors requiring 24V @ 2A or via PoE. These inputs also have a screw lock to prevent accidental unplugging. Using two inputs provides redundancy.
The optional NIX00629 can be used to power the RL64.
- Compact 1RU 120mm deep design for portable and fly-away broadcast applications
- Rapid bootup for fast deployment
- Perfect for on-site audio confidence monitoring
- High resolution screen with clear metering and quick source touch screen navigation
- Separate Mic and AES inputs
- AES output and headphone
- Available as either Dante or Ravenna at time of purchase
Functionality
- AoIP Audio Monitor - 64 AoIP channels at 48 kHz (32 channels at 96 kHz). Optional fixed 16 channel mode.
- Dedicated Mix or Listen modes - Create a mix of up to 67 inputs (inc mic and AES in) into a Stereo mix
- Mix mode allows for Panning and Level control
- Channels can be configured as Mono or Stereo
- Main output has 3 band EQ and Limiter
- Mic input via 3.5mm jack input
- AES In and AES Out
- 67 channel meters (16 displayed at a time)
- High resolution meters switchable scale standards from EBU or SMPTE
- Monitor Output via Headphone, Built-in speakers, Balanced Line Outputs or AES Out
Dante or Ravenna option - at time of purchase
- AES67 compatible
- SMPTE 2110 compatible
- Fully compatible with New Dante Domain Manager – Dante option only
Sample rates supported
- 44.1 kHz
- 48 kHz
- 88.2 kHz
- 96 kHz
Bit Depth supported
- 16 bit
- 24 bit
- 32 bit
AoIP inputs
- Dual 1Gbps RJ45
- 1Gbps or 100Mbps operation (Ravenna supports 1Gb only) User configurable for
- Switched or Redundant operation Network configuration information available via menu
Speakers and Headphones
- Internal 2 W/channel amplifier feeding either
- 2 x 40 mm x 90 mm full range drivers or
- 3.5 mm Headphone socket (with microphone input)
- Headphone output can drive loads from 8ohm to 600ohm
Dual Balanced Line Outputs
- 2 x 3pin male XLR connectors
- Fed from any input
- 0 dBFS = +21 dBu maximum output into 600 Ohms Output Mute relays
AES In and AES Out
- Stereo AES3 Input on 3 pin female XLR connector
- SRC converts from 44.1 kHz, 48 kHz or 96 kHz to RL64 sample rate
- AES3 routing to any output
- Stereo AES3 output on 3 pin male XLR connector
- Fed from any input
Other Ports
- USB port is also used for product firmware updates
Power input
- PoE (13 W) on Primary RJ45 connector
- 2.5 mm DC inputs socket for use with external 24 V, 2 A adaptor
- Both power inputs can be active at the same time for redundancy
LCD
- 6.6” (168 mm) diagonal 24-bit colour LCD with 1440 x RGB x 240 resolution
- LED backlight (adjustable brightness via software)
- multi touch capacitive touch overlay with gesture support
Product Sizes
- Dimensions 494 mm wide by 210 mm deep by 44 mm height
- Weight 2.0 kg approx
19inch rack mounting ears can be removed for desktop use
