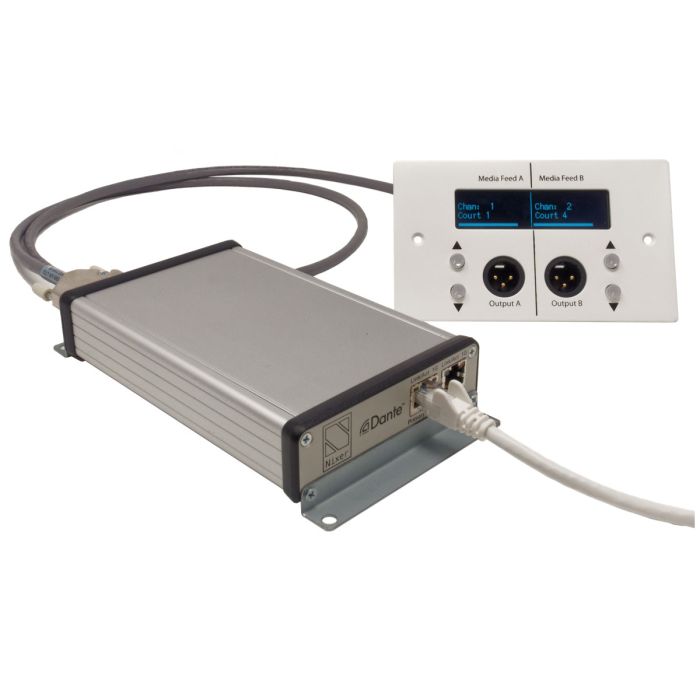

Nixer PLR64K Dante - 64 Channel Dante Network Monitor for use with Remote Controller

• 2-way mono Dante monitoring source selector
• 64ch Dante Audio-over-IP input
• Dual up/down channel selection keys incl.Channel Label display
• Dual-mono analogue monitoring output via control panel XLRs

1  NIX00533 - PLR64K Dante kit consists

• 1x NIX00528 - PLR64 Dante unit
• 1x NIX00517 - 2 Gang Wall Plate Remote controller
• 1x NIX00551 - Remote Cable 1.5M D-sub cable

2  NIX00528 - PLR64 Dante unit

• 3.5mm Headphone socket
• Headphone output for driving loads from 8ohm to 600ohm
• Dual 1GHz RJ45 Dante inputs
• 1GHz or 100MHz operation
• User configurable for Switched or Redundant operation
• Power input via
• PoE (13W) on Primary RJ45 connector
• USB input (1.5A) auto negotiates with connected USB port
• Direct from Mac/PC USB connector capable of delivering 1.5A
• USB mains adaptor
• USB battery pack
• Both power inputs can be active at the same time for redundancy
• USB port is used for product firmware updates
• Outputs can be selected from any of up to 64 Dante channels at 48kHz (32 channels at 96kHz)
• 2 independent outputs selectable from available Dante input channels
• Sample rates supported 44.1kHz, 48kHz and 96kHz
• Bit Depths supported 16bit, 24bit and 32bit
• AES67 compatible
• Fully compatible with Dante Domain Manager

3  NIX00517 - 2 Gang Wall Plate Remote controller

• Can be connected to the PLR64 Dante (or PD Dante)
• Dual Balanced Line Outputs 0dBFS = +21dBu maximum output into 600ohms 2x 3pin male XLR connectors
• Source for each output independently selectable from any of the 64 Dante input channels via selector buttons
• OLED display showing for each channel
• Selected Dante channel name
• Signal level meter
• Power is supplied from PLR64
• Mounts in a standard 2 gang wall plate (UK)
• Other options available at extra cost please contact [email protected] for more details

4  NIX00551 - Remote Cable 1.5M D-sub cable

• 1.5meter multicore cable
• Other lengths available at extra cost please contact [email protected] for more details
• One end terminated with 15way male D-sub including shell and screw locks
• Second end unterminated with tinned and stripped leads individually labelled
• Unterminated leads to allow cable to be fed through trunking
• Idented leads fit to screw terminals on NIX00517

5  NIX00583 - PoE PSU Kit – not supplied as standard in PLR64K Dante kit but will be required if not powering from a PoE network switch

• PoE plug top supply
• Worldwide plug adaptor kit
• 2M RJ45 Cat6 flat cable
• Available as a cost option

6  Sizes

NIX00528 - PLR64 Dante unit

• 195.85mm length x 106mm width x 34mm height (length including mounting brackets)
• 0.5kG

NIX00517 - 2 Gang Wall Plate Remote controller

• 146mm length x 86mm width x 35mm total height – requires a back box with a minimum depth of 35mm
• 165g
