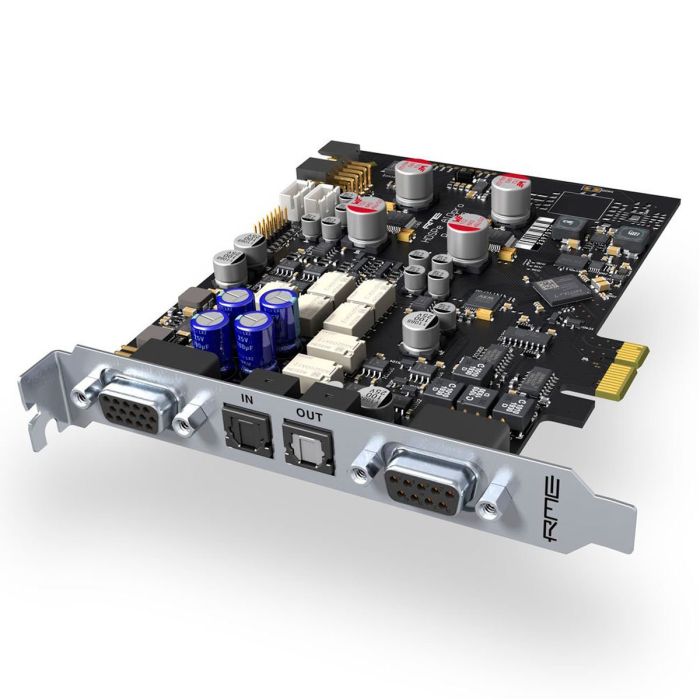

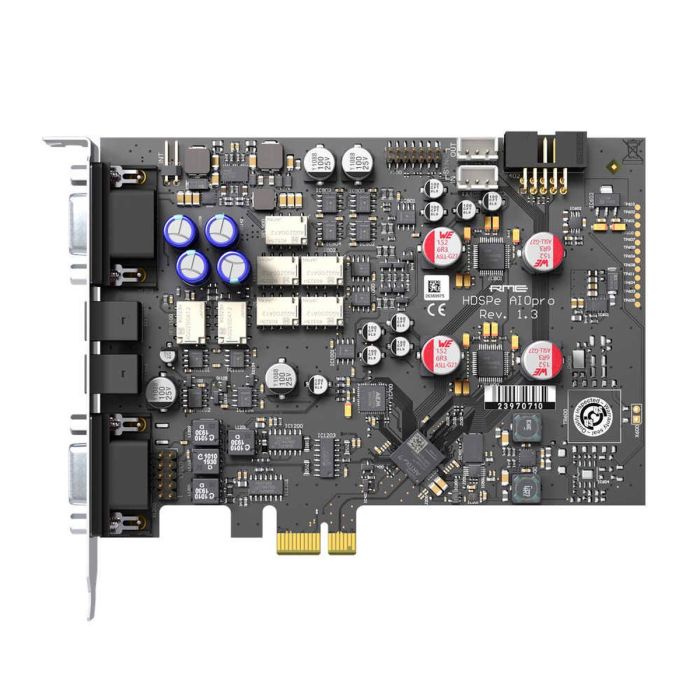

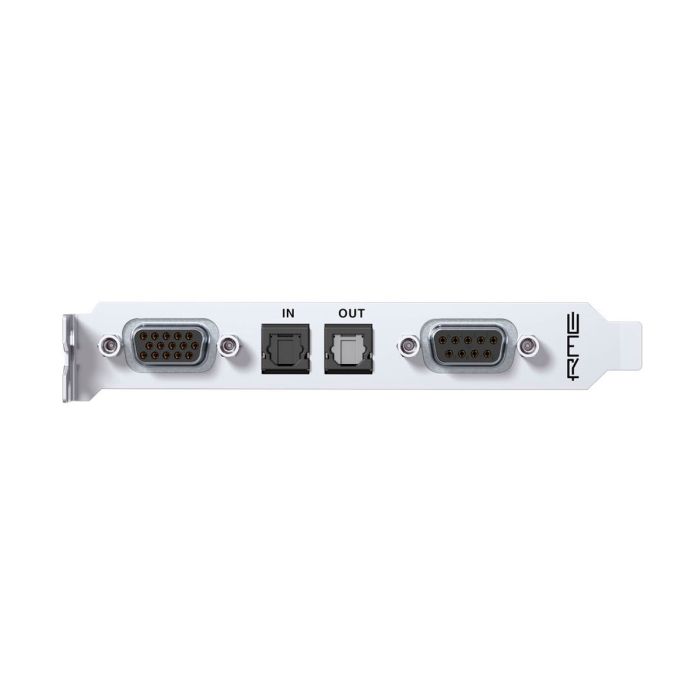

RME HDSPe AIO Pro PCI Express Card

• Reference processors AK5572 and AK4490 (derived from the high-end AD/DA converter ADI-2 Pro)
• Balanced* stereo analogue in- and output, 24-bit/192kHz
• All analogue I/Os capable of 192 kHz, constant number of available channels
• 1 x ADAT digital I/O, supporting 192 kHz via S/MUX4 operation
• 1 x SPDIF digital I/O, 192 kHz-capable
• 1 x AES/EBU digital I/O, 192 kHz-capable
• 1 x High Power Headphone Output, separate DA-converter and playback device
• 1 x MIDI I/O with 16 channels of hi-speed MIDI via breakout cable
• DIGICheck, RME's unique metering- and analysing tool
• TotalMix: Extensive Monitoring & Mixing Software Controller
• Native PCI Express - no PCI to PCI Express bridge used
• Outputs with Mute Relays
  +24 dBu I/O Levels

* The HDSPe AIO Pro ships with a basic unbalanced analogue RCA/phono breakout cable (headphone: TRS jack).

Analogue Inputs

RCA (Standard D-Sub Breakout cable)

• Input: Cinch (RCA), unbalanced
• Input impedance: 18 kOhm
• Input sensitivity switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
• Signal to Noise ratio (SNR) @ +19/24 dBu: 117 dB RMS unweighted, 120 dBA
• Signal to Noise ratio (SNR) @ +13 dBu: 116 dB RMSu nweighted, 118 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 112 dB RMSu nweighted, 114 dBA
• Frequency response @ 44,1 kHz, -0,1 dB: 7 Hz – 20.5 kHz
• Frequency response @ 96 kHz, -0,5 dB: 3 Hz – 45,5 kHz
• Frequency response @ 192 kHz, -1 dB: 2 Hz – 92 kHz
• THD @ -1 dBFS: -114 dB, 0,0002 %
• THD+N @ -1 dBFS: -110 dB, 0,0003 %
• Channel separation: > 110 dB

XLR (optional D-Sub Breakout cable)
as RCA, except:

• Input: XLR, servo-balanced
• Input impedance balanced: 36 kOhm, unbalanced: 18 kOhm
• Signal to Noise ratio(SNR) @ +4 dBu: 116 dB RMS unweighted, 118 dBA

Analogue Outputs

RCA (Standard D-Sub Breakout cable)

• Output: Cinch (RCA), servo-balanced
• Output impedance+19/+13 dBu: 75 Ohm. +4/-2 dBu: 80 Ohm
• Output impedance switchable +19, +13 dBu, +4 dBu, -2 dBu @ 0 dBFS
• Signal to Noise ratio (SNR) @ +19 dBu: 117 dB RMS unweighted, 119 dBA
• Signal to Noise ratio (SNR) @ +13 dBu: 116 dB RMS unweighted, 118 dBA
• Signal to Noise ratio (SNR) @ +4 dBu: 114 dB RMS unweighted, 116 dBA
• Signal to Noise ratio (SNR) @ -2 dBu: 110 dB RMS unweighted, 112 dBA
• Frequency response @ 44.1 kHz, -0,1 dB: 10 Hz – 20,2 kHz
• Frequency response @ 96 kHz, -0,5 dB: 4 Hz – 44,6 kHz
• Frequency response @ 192 kHz, -1 dB: 3 Hz – 83 kHz
• THD @ 0 dBFS: < -107 dB, 0,0005 %
• THD+N @ 0 dBFS: -105 dB, 0,0006 %
• Channel separation: > 110 dB

XLR (optionales D-Sub Breakout cable)
as RCA, except:

• Output: XLR
• Output impedance +24/+19 dBu: 150 Ohm, +13/+4 dBu: 160 Ohm
• Output level switchable +24 dBu, +19 dBu, +13 dBu, +4 dBu @ 0 dBFS
  Signal to Noise ratio (SNR) @ +24 dBu: 117 dB RMS unweighted, 119 dBA

Phones
as RCA, except:

• Output: Standard 6.3 mm / 1/4" TRS jack
• Output impedance: 0,1 Ohm
• Signal to Noise ratio (SNR) @ +19 dBu (Hi-Power): 117 dB RMS unweighted, 119 dBA
• Signal to Noise ratio (SNR) @ +7 dBu (Lo-Power): 113 dB RMSu unweighted, 115 dBA
• Output level at 0 dBFS, Hi-Power, Last 150 Ohm or higher: +19 dBu (10 V)
• Output level at 0 dBFS, Lo-Power, Last 16 Ohm or higher: +7 dBu (1,73 V)
• THD+N @ + 15 dBu, 32 Ohm Last, 590 mW: -97 dB, 0,0016 %
• Maximum impedance @ 0,1 % THD 32 Ohm: 730 mW per channel

Digital Outputs

AES/EBU

• 1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
• Output level 4,0 Vss
• Format Professional according to AES3-1992 Amendment 4
• Single Wire mode, sample rate 28 kHz up to 200 kHz

SPDIF

• 1 x XLR,RCA, transformer-balanced, according to AES3-1992
• Output level4,0 Vss
• Format Professional according to AES3-1992 Amendment 4
• Single Wire mode, sample rate 28 kHz up to 200 kHz

ADAT

• 1 x TOSLINK, format according to Alesis specification
• Standard: 8 channels 24 bit, up to 48 kHz
• Double Speed (S/MUX): 4 channels 24 bit 96 kHz
• Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz

Digital

• Clocks: Intern, ADAT In, SPDIF In, Sync In, optional Word clock In / LTC
• Jitter suppression of external clocks: > 50 dB (2,4 kHz)
• Effective clock jitter influence on AD and DA conversion: near zero
• PLL ensures zero dropout, even at more than 100 ns jitter
• Digital Bitclock PLL for trouble-free varispeed ADAT operation
• Supported sample rates: 28 kHz up to 200 kHz

MIDI

• 1 x MIDI I/O via 5-pin DIN jacks
• Galvanically isolated by optocoupled input
• Hi-speed mode: Jitter and response time typically below 1 ms
• Separate 128 byte FIFOs for input and output

• RME HDSPe AIO Pro
• Analogue breakout cable, unbalanced (BO9632CMKHPro)
• Digital breakout cable, SPDIF (BO9632)
