RME M-1620 PRO D (Dante) D/A Converter ADAT, Dante, MADI
RME
RME-M-1620-PRO-D
$2,306.67
Click image to zoom

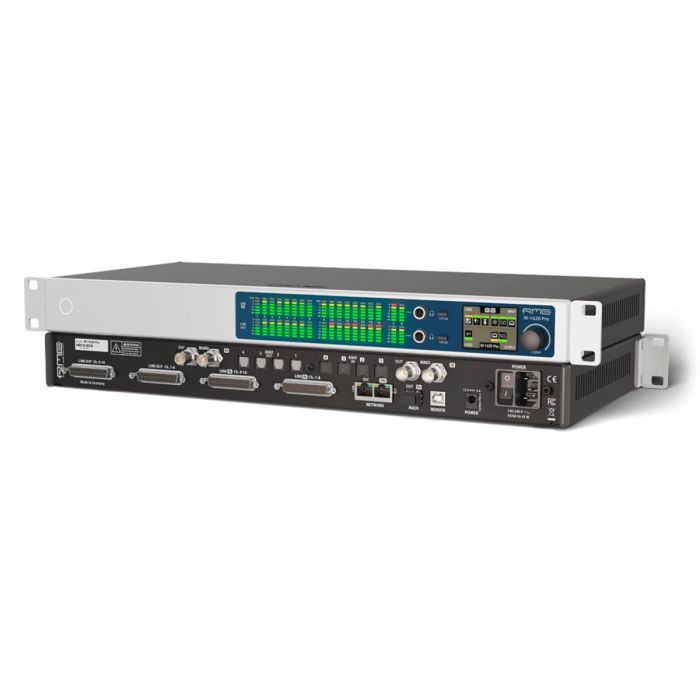

RME M-1620 Pro D/A Converter with ADAT, Milan, MADI
16-Channel Reference-Class AD/DA Converter With AoIP
SKU: RME-M-1620-PRO
$1,998.33
RME proudly introduces the M-1620 Pro, a state-of-the-art device that converts 16 analogue line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT®, and Milan-compatible AVB network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network.
Seen it cheaper?
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
RME M1620 Pro (Milan/AVB)
RME proudly introduces the M-1620 Pro, a state-of-the-art device that converts 16 analogue line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT®, and Milan-compatible AVB network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network.
Reliability and Redundancy
RME prioritizes reliability by equipping the M-1620 Pro with built-in redundancy. This includes dual network and dual MADI connections, along with a monitored DC input in addition to the internal AC power supply. A unique system clearly signals when an issue arises, ensuring seamless operation. With full stand-alone capability, users can adjust device settings directly on the unit for quick modifications or to recall entire user-defined presets.
Advanced Features
The M-1620 Pro allows manual configuration of the converter’s aliasing filters for optimal impulse and frequency response. Jitter on digital input signals is effectively reduced with SteadyClock FS. Separate Word Clock BNC and coaxial MADI connectors, with optional optical MADI via an SFP module, allow the device to be easily integrated into existing infrastructure.
…or Milan.
The Milan-certified model transmits and receives up to 128 channels at 48 kHz (96 @ 96 kHz, 64 @ 192 kHz) with precise, fixed latency across a deterministic network. It reveals its status and configurable options to controllers using the open IEEE 1722.1 (ATDECC) standard and is compatible with the new Milan Manager.
Remote Control and Integration
Both models feature a JSON-based API for full integration and remote control from either network port or USB. A web-based remote application offers convenient access to the 304x308 channel routing matrix (240x244 for M-1620 Pro D).
- Industry-leading specs with SteadyClock FS
- 16 x Line-level inputs
- 16 x Line-level outputs
- 2 x stereo headphone outputs
- 2 x Gigabit Ethernet AVB (RJ45) (128 ch.)
- 1 x MADI Coaxial (BNC) (64 ch.)
- 1 x MADI Optical (SFP) (64 ch.)
- 4 x ADAT I/O
- 2 x PSU (AC and DC PSU inlets)
- 2.54” TFT screen with analogue level meters and extensive status feedback
- Routing matrix (remote controllable)
- Compact 1 HU 19” Device
- Re-designed front panel with analogue level meters
- Web interface and SSC API for remote control over network or USB
- Input level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
- New: AD/DA filters switchable
- Inputs AC coupled, fully symmetrical signal path (servo-balanced)
- Outputs DC coupled, fully symmetrical signal path ("truly balanced")
- 16 Line inputs, 16 Line outputs, dual stereo phones outputs
- Dante™ (64 ch.) or AVB (128 ch.) on dual Gigabit Ethernet RJ45
- MADI Coaxial and SFP (total 128 ch.)
- 4 x ADAT I/O
- AC and DC PSU inlets
- 2.54” TFT screen with extensive status feedback. Most features can be controlled directly at the device.
- Routing matrix (remote controllable):
- Dante: 16+32+128+64 inputs, 20+32+128+64 outputs
- AVB: 16+32+128+128 inputs, 20+32+128+128 outputs at 48k
- Compact 1 HU 19” Device
- Re-designed front panel with analogue level meters
- Web interface and SSC API for remote control over network or USB
- Input level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
- New: AD/DA filters switchable
- Inputs AC coupled, fully symmetrical signal path (servo-balanced)
- Outputs DC coupled, fully symmetrical signal path ("truly balanced")
