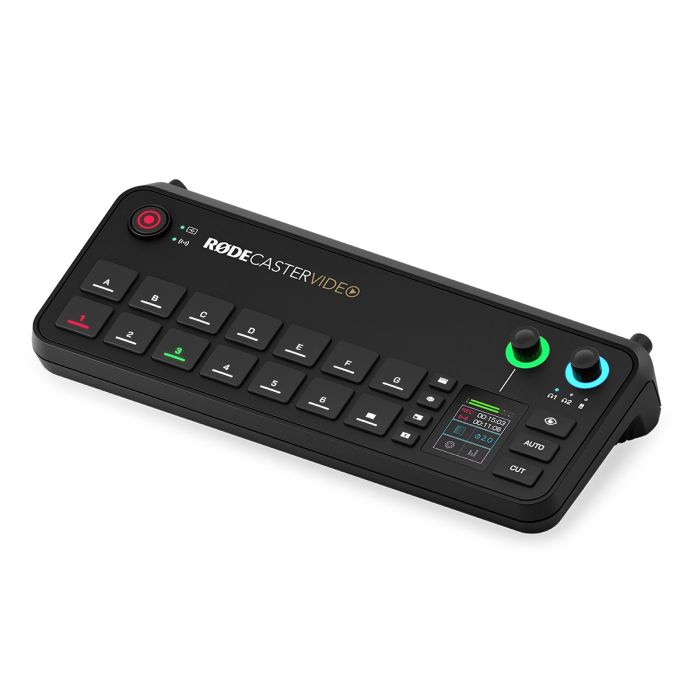

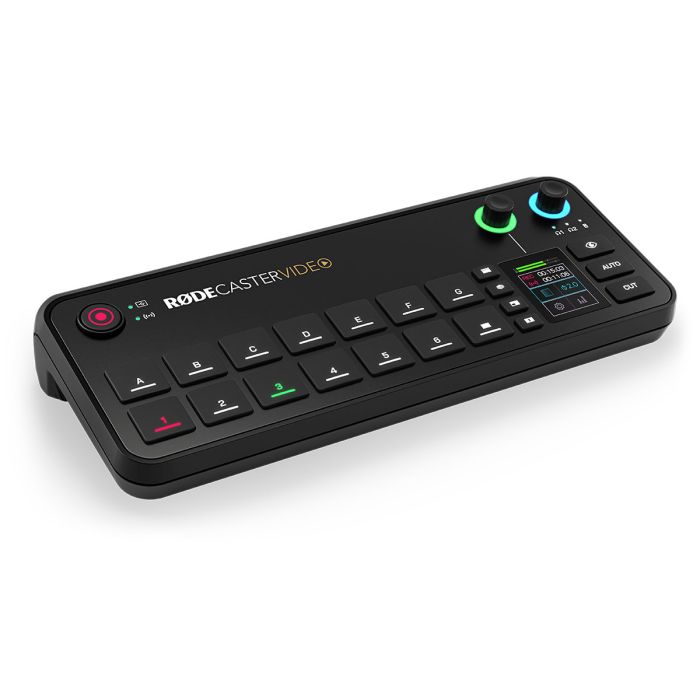

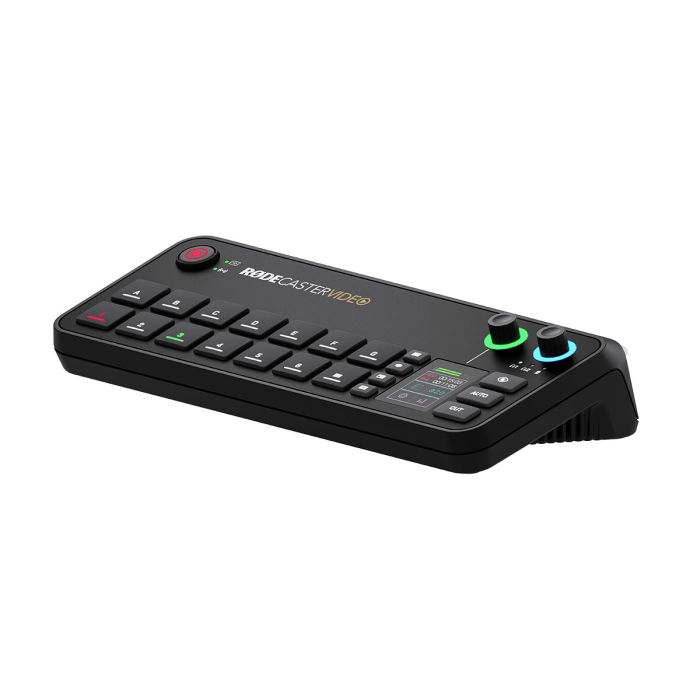

Rode RodeCaster Video

• High-performance octa-core CPU with next-gen video engine.
• Switch between six video sources and seven customizable scenes
• Four 1080p HDMI inputs with auto frame rate conversion.
• Two configurable HDMI outputs for program, preview, and multiview.
• Two USB-C ports for webcams and RØDE USB audio devices.
• Two Neutrik® combo jacks with Revolution Preamps
• Dual wireless receivers for RØDE Series IV mics
• APHEX audio processing with EQ, compressor and more!

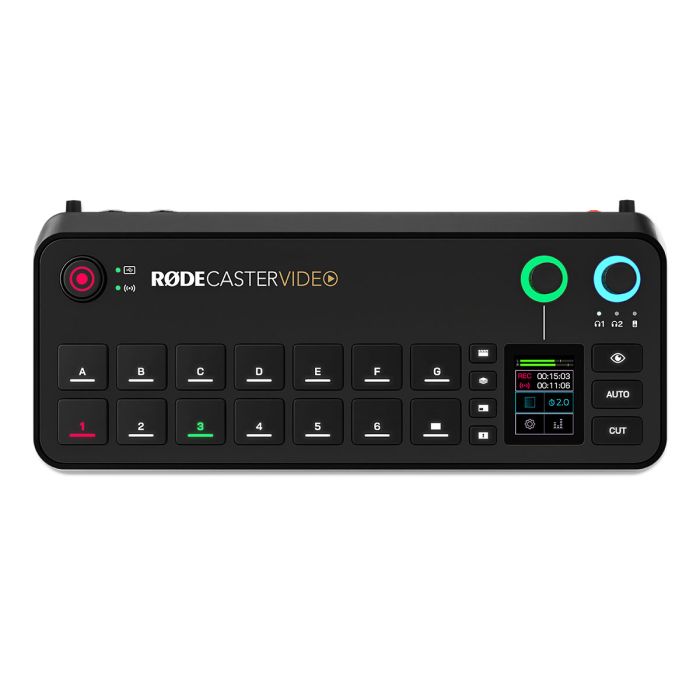

• 2-inch high-res touchscreen and rotary encoder for easy configuration.
• Automatic chroma keying for seamless background replacement.
• Front-panel access to media playback, overlays, transitions and more
• "Inspect" feature for quick input/scene preview and configuration.
• Auto-switching of video sources and scenes based on audio inputs.
• Stream to major platforms via Wi-Fi, Ethernet, or USB.
• Record to external USB storage with ISO recording for post-editing.
• Advanced remote control and custom scene-building via RØDE Central.

VIDEO SPECIFICATIONS

• Video Input Feeds: 6 simultaneous

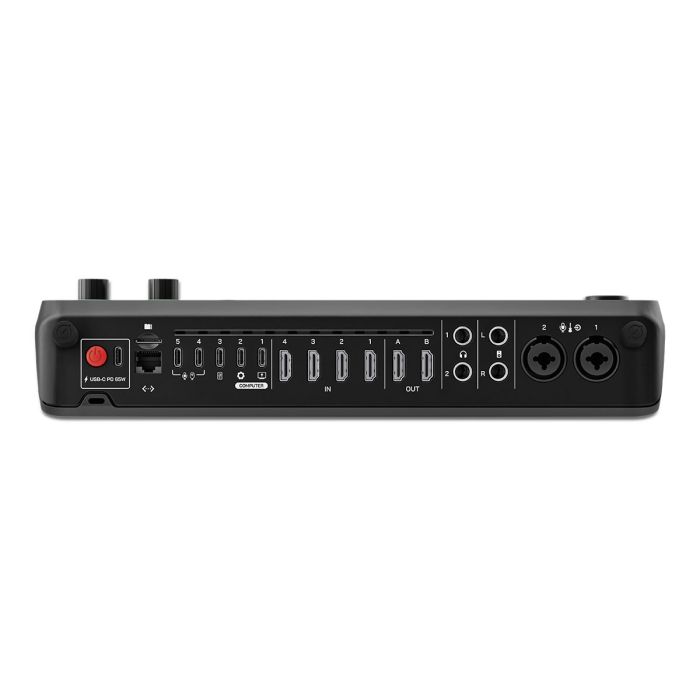

• HDMI Inputs: 4 type-A (HDMI 1.4b)
• USB (UVC) Inputs: 2 multi-function USB-C for UVC video
• HDMI Outputs: 2 configurable –preview, program, multiview
• Video Input Frame Rates: 1920x1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60 (HDMI only) 1920x1080i: 25, 29.97, 30
• Video Output Frame Rates: 1920x1080p: 24, 25, 30, 50, 60
• Video Streaming Standards: 1920x1080p: 23.97, 24, 25, 29.97, 30, 50, 59.94, 60
• Video Engine Colour Space / Bit Depth: 4:4:4 RGB / 8-bit
• HDMI Input Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV, 4:2:2 YUV / 8, 10, 12-bit
• USB Input Colour Space: 4:2:2 YUV, 4:2:0 YUV (NV12)
• HDMI Output Colour Space / Bit Depth: 4:4:4 RGB, 4:4:4 YUV / 8-bit
• USB Output Colour Space / Bit Depth: 4:2:2 YUV / 8-bit
• Format and Frame Rate Converters: On all HDMI and USB inputs

SWITCHING SPECIFICATIONS

• Total Number of Layers: 9 simultaneous in Preview and Program
• Downstream Keyers: 2 (overlays and logo)
• Chroma Keyers (Green and Blue): 2
• Media Players: 2 simultaneous
• Transitions: SMPTE wipes, dip and fade
• True Preview: Display complete scenes and overlays simultaneously in preview and program
• Generated Borders: All scenes
• Multiview:
  • Program and preview
  • Live inputs, scene and media thumbnails
  • Audio mixer and channel status
  • Recording, network and storage status
  • Run time, date and time information
• Media Player: Expandable microSD card storage
  • Videos: MP4
  • Images: PNG, JPG
  • Audio: WAV
  • Bluetooth: 5.3 (for stereo audio input or phone calls)

AUDIO SPECIFICATIONS

• Analog Audio Inputs: 2 combo jacks (microphone, line or instrument) with Revolution PreampsTM
• Wireless Audio Inputs: 2 Series IV wireless receivers
• Digital Audio Inputs:
  • USB 1:2-in/2-out or multichannel (20-in) output
  • USB 1 Chat (uses USB 1 port): 2-in/2-out with mix-minus
  • USB 2: 2-in/2-out with MFi support
  • USB 4 & 5: compatible with RØDE USB microphones and RØDECaster Pro II and Duo
• Analog Audio Outputs: 2 headphone outputs (1/4-inch) / 2 balanced line outputs (1/4-inch, L/R)
• Audio Mixer:
  • 20 possible audio sources (9 stereo channels simultaneously): combo 1 and
    2 (can be combined for stereo), wireless
    1 and 2, video clips, sounds, HDMI 1,
    2, 3 and 4 (each can be split for two mono), Bluetooth,3 USB audio interfaces (computers), 2 hosting USB audio devices (microphones)
  • 12 Outputs with Custom Routing: live mix, headphone 1, headphone 2, recording, monitors, USB Main, USB Chat, USB 1, 2, 4 and 5, Bluetooth
  • Note: Each output can be independently configured with custom level, mute status and level offset settings for each of the 9 inputs
• Audio Processing:
  • APHEX® VoxLabTM Processing: per channel
  • Advanced APHEX® granular processing on each channel: Compressor, Equaliser (EQ), De-esser, Panning, Noise Gate, High-pass Filter, Aural ExciterTM, Big BottomTM
• Preamps:
  • Frequency range: 20Hz – 20kHz
  • Input gain: up to 76dB Input
  • Equivalent Input Noise:
    -131.5dBV (A-weighted)

STREAMING, RECORDING AND SOFTWARE SPECIFICATIONS

• Direct Streaming: Real Time Messaging Protocol (RTMP/RTMPS) over Ethernet or Wi-Fi
• Supported Platforms:
  • Youtube Live
  • Twitch Live
  • Facebook Live
  • Twitter/X Live
  • Custom server
• Network: Ethernet (10/100/1000 BaseT) and Wi-Fi 6 (2.4 and 5GHz) for streaming, configuration, remote control with computer and over-the- air updates
• Storage Media: External USB mass storage device (exFAT format) for recordings
• Video Recording: Program feed as H.264/AVC MP4 file with embedded AAC stereo mix
• Isolated (ISO) Video Recording: 6 video inputs and 1 Program feed as independent H.264/AVC files (up to 1080p30)
• Audio Recording: Stereo mix WAV audio file
• Multitrack Audio Recording: 9 independent stereo WAV audio files
• RØDE Central Companion Software:
  • Scene builder: advanced construction of scenes and remote control of device
  • Auto-switching: configuration of automatic switching based on audio input
  • Audio mixer: advanced configuration and control of audio sources, processing and routing
  • Stream profiles: configuration for streaming settings and profiles
  • Device configuration: advanced settings and customisations
• Compatible Operating Systems:
  • macOS 10.15 or later
  • Windows 10 Version 1803 or later,
  • Windows 11

• 1 x RØDECaster Video
• 1 x SuperSpeed USB-C to USB-C Cable
• 2 x External Antenna
• 1 x Power Supply
