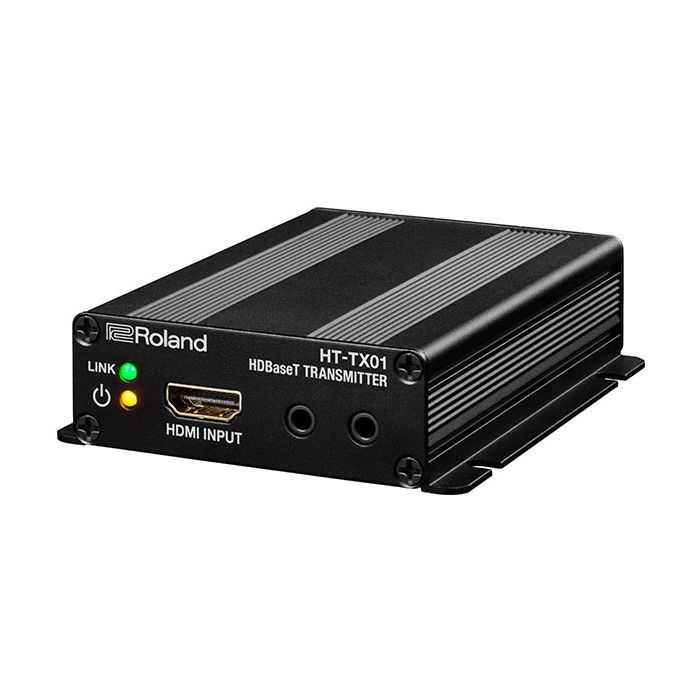

Roland HT-TX01 HDBaseT Transmitter
HDBaseT-compatible transmitter capable of transmitting HDMI signals up to 100 meters over an Ethernet cable.
MPN: HT-TX01 SKU: ROL-HT-TX01
The HT-TX01 can be used as a receiver for the HDBaseT output from XS series multi-format matrix switchers. Using the RS-232C signal transmission function of the XS series lets you transmit RS-232C signals input to the XS series device along with video and audio signals. This can achieve audio/video transmission in school auditoriums, company conference halls, and other large spaces.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-2 Days
Connecting an Ethernet cable to the HT-TX01 or HT-RX01 enables transmission of HDMI signals over a distances of up to 100 meters. This makes it possible to connect video cameras, Blu-ray decks, switchers, and other source equipment to LCD monitors, projectors, and other display devices. In addition to HDMI signals, RS-232C signals can also be transmitted, making it possible to send control signals along with video and audio reducing system wiring.
- Converts HDMI input to HDBaseT signals
- Maximum 1080/60p and WUXGA support for HDMI
- HDCP compliant
- Capable of RS-232C transmission
- Input Formats: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p, 640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
*RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
*The maximum refresh rates of RGB is 75 Hz. (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 60Hz)
*1920 x 1200/60Hz : Reduced blanking
- Audio Formats: The maximum is PCM 8ch, Dolby Digital, True HD DTS-HD Master Audio
- Input Connectors:

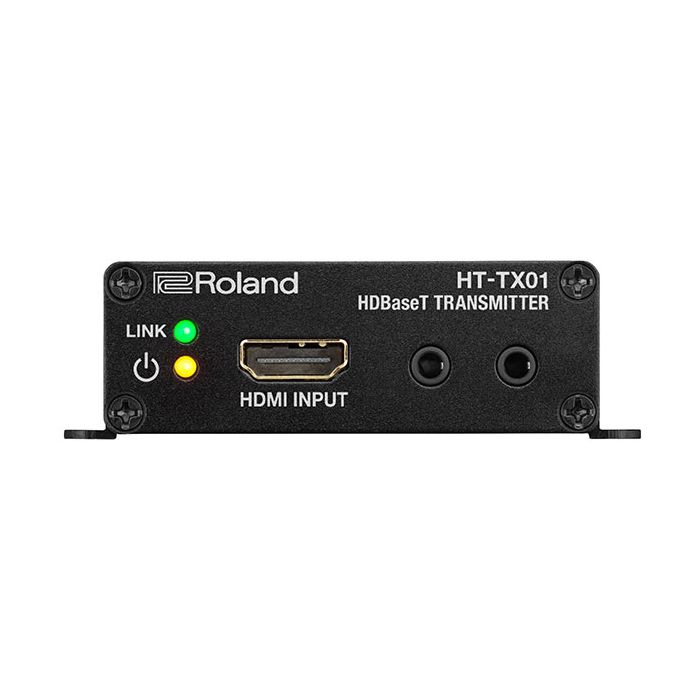

- HT-TX01: HDMI x 1 : Type A 19 pins
- HT-RX01: RJ45 x 1
- Output Connectors:

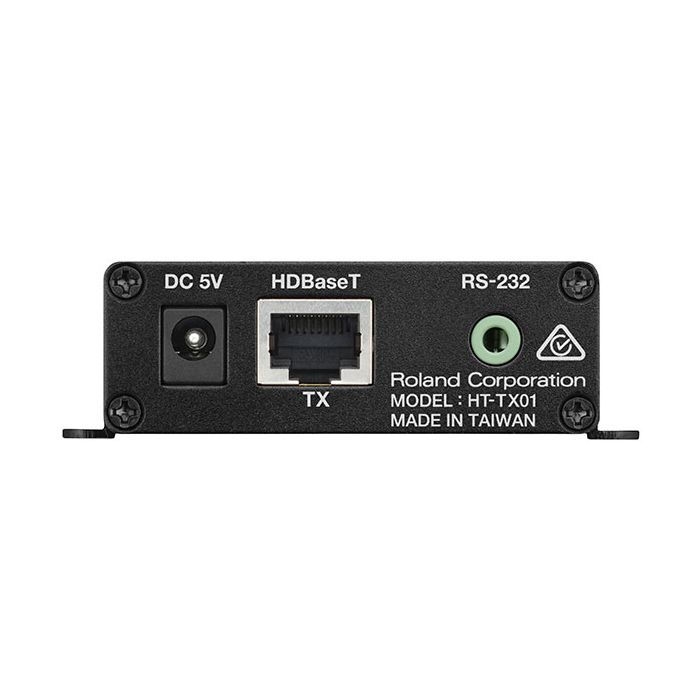

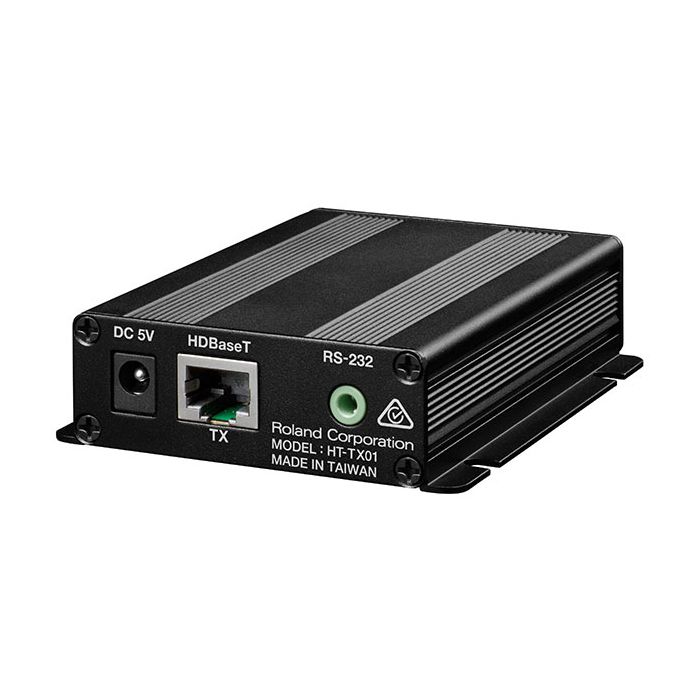

- HT-TX01: RJ45 x 1
- HT-RX01: HDMI x 1 : Type A 19 pins
- Other Connectors: RS-232 x 1 : 9 pins D-sub type *when using additional RS-232 cable
- Transmission distance: The maximum is 100m (328 ft)
*To make connections, use a Cat 5e (Category 5e) or later shielded LAN cable.
*The available distance depends on the quality of the LAN cable.
- Operating temperature range: 0 to 40 degree C / 32 to 104 degrees F
- Operating temperature humidity: 10 to 85 % (no condensation)
- Storage temperature range: 20 to 60 degree C / 4 to 140 degrees F
- Storage temperature humidity: 10 to 85 % (no condensation)
- Current Draw: 2 A
- Power Supply: AC Adaptor
Size and Weight
- Width: 81 mm / 3-1/4 inches
- Depth: 93 mm / 3-11/16 inches
- Height: 24 mm / 1 inches
- Weight: 300 g / 0 lbs. 11 oz.
- Roland HT-TX01
- AC adaptor
- AC plugs (3 types)
- RS-232 conversion cable (2 m (6 ft 6 inches))
- Ferrite core x 3
- Owner's Manual
