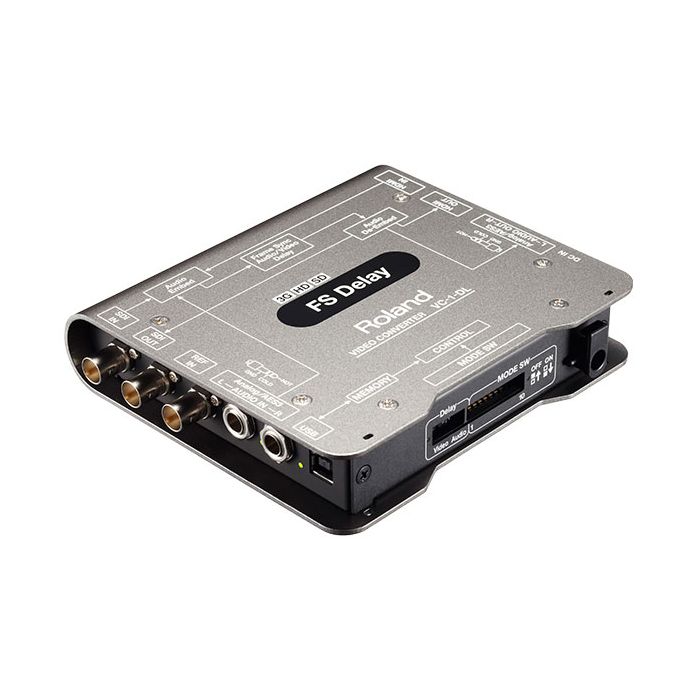

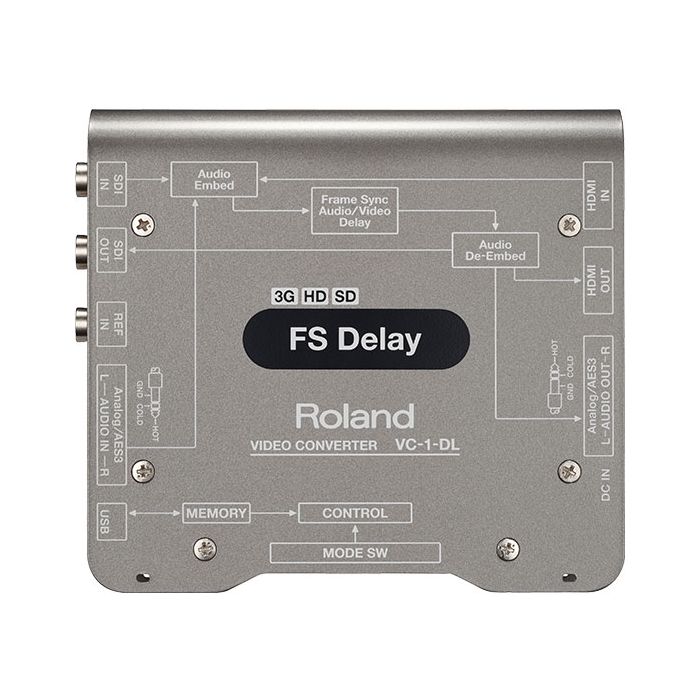

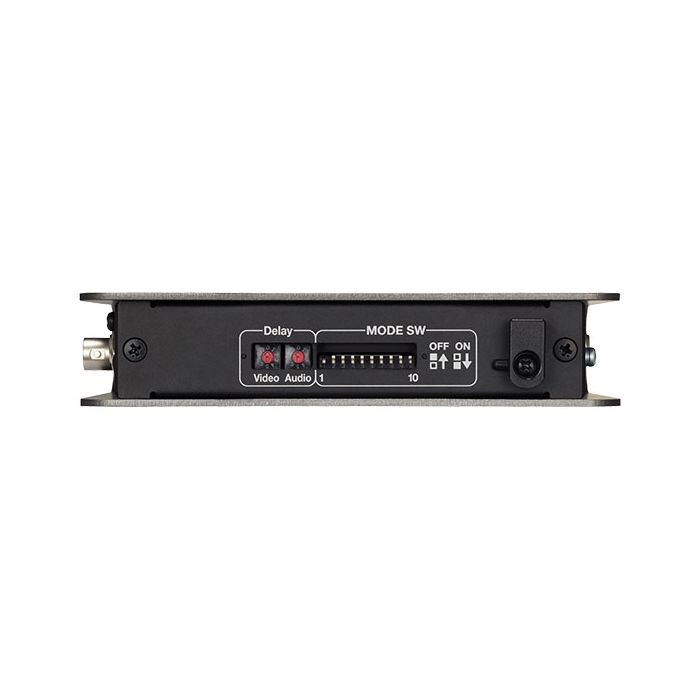

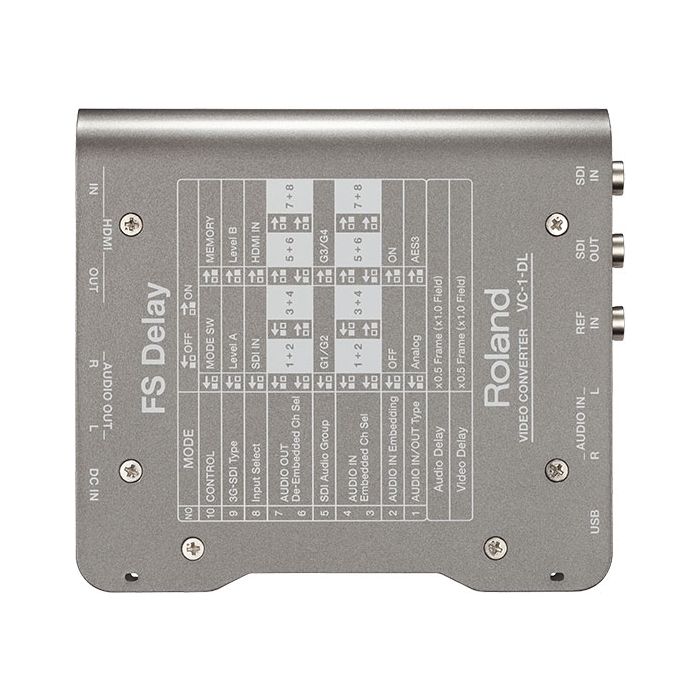

Roland VC-1-DL Bi-Directional SDI/HDMI Converter

• HDMI to SDI Conversion
• SDI to HDMI Conversion
• Lossless Image Conversion
• 3G (Level A&B) /HD/ SD SDI
• HDCP Support
• Built-in Frame Synchronizer
• Audio Delay - up to 9 fields (4.5 frames)
• Video Delay - up to 9 fields (4.5 frames)
• VC-1 RCS, PC/MAC Control Application
• Selectable Channel for Embedded/De-Embedded Audio

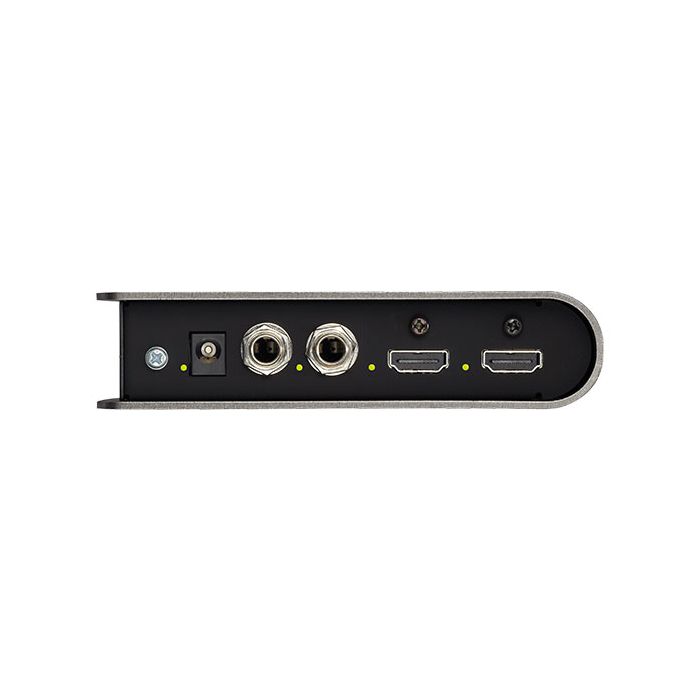

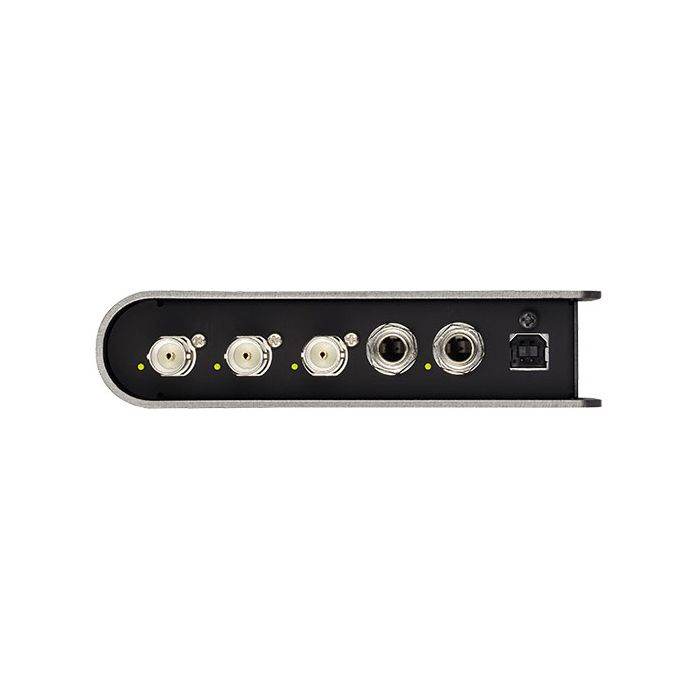

Input

• SDI Connector: BNC type x 1
• HDMI Connector: Type A (19 pins) x 1
• Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
• Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )
• Reference Connector: BNC type x 1
• Reference Signal Format: Black Burst, Bi-level, Tri-level
• Reference Impedance: 75 ohms

Processing

• Video delay ( 0 to 4.5 frames ) Audio delay ( 0 to 4.5 frames ) Audio embedding Audio de-embedding

Output

• SDI Connector: BNC type x 1
• HDMI Connector: Type A (19 pins ) x 1
• Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair ( L/R)
• Digital Audio Connector: 1/4" TRS phone type (balanced ) x 1 (Combined use with Analog Audio R ch Connector)

Input/Output Format

• SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
• SDI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
• Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
• HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
• HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1
• SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
• SDI Output Video Format 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
• SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch *1 (Conforms to SMPTE 299M, SMPTE 272M-C)
• HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-D)
• HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch *1

Audio Input/Output

• Analog Audio Input Level: +4dBu
• Analog Audio Maximum Input Level: +24dBu
• Analog Audio Input Impedance: 110 ohms
• Analog Audio Output Level: +4dBu
• Analog Audio Output Impedance: 600 ohms
• Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
• Digital Audio Output Impedance: 110 ohms

Others

• USB Connector: USB Type B (Hi-Speed USB) x 1
• Power Supply: DC 9V
• Power Consumption: 8W
• Operation Temperature: +0 to + 40 degrees Celsius

Size and Weight

• Width: 150 mm/5-15/16 inches
• Depth: 130 mm/5-1/8 inches
• Height: 30 mm/1-3/16 inches
• Weight: 500 g/1 lbs. 2 oz.

(0dBu=0.775Vrms)

*1: When frame synchronizer is engaged, CH 3-8 of HDMI and CH 3-16 of SDI audio output are not available.)

• Roland VC1DL
• AC adaptor
• Power Cord
• Rubber Foot x 4
• Owner's Manual
