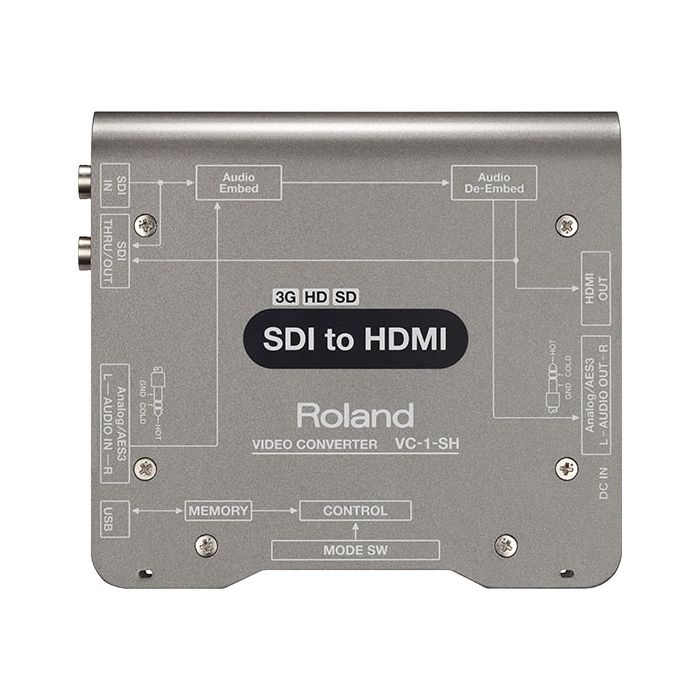

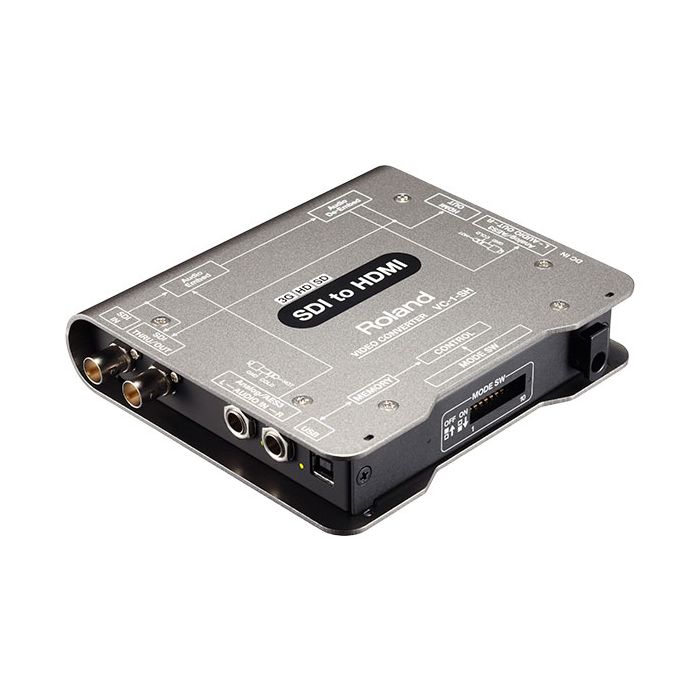

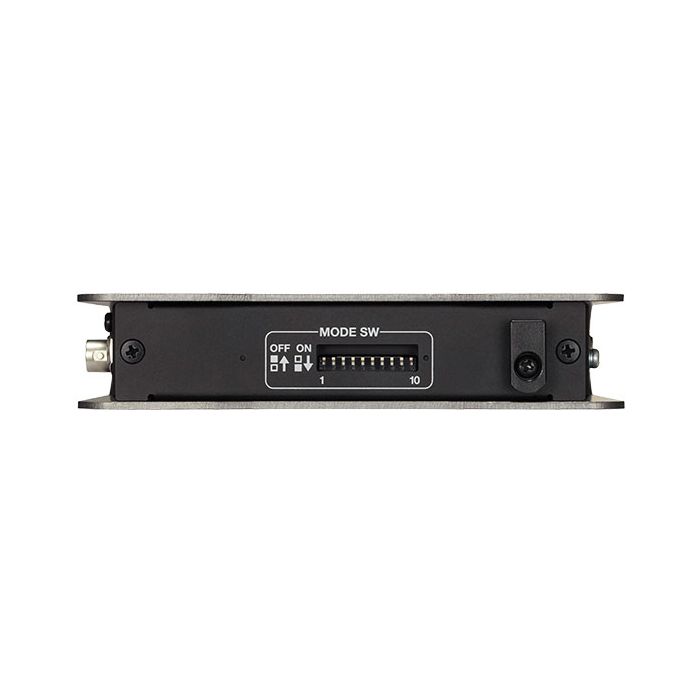

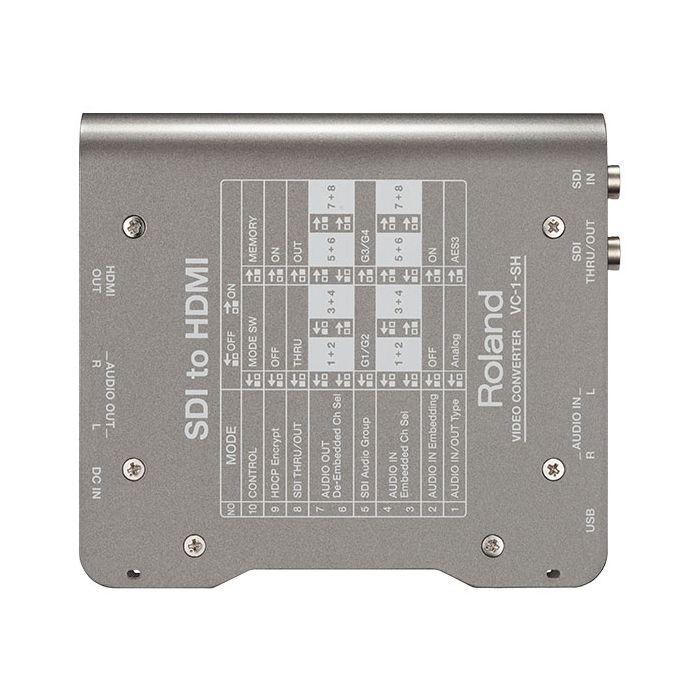

Roland VC-1-SH SDI to HDMI Video Converter

• SDI to HDMI Conversion
• Lossless Image Conversion
• 3G (Level A&B) /HD/ SD SDI
• HDCP Support
• VC-1 RCS, PC/MAC Control Application
• Selectable Channel for Embedded/De-Embedded Audio

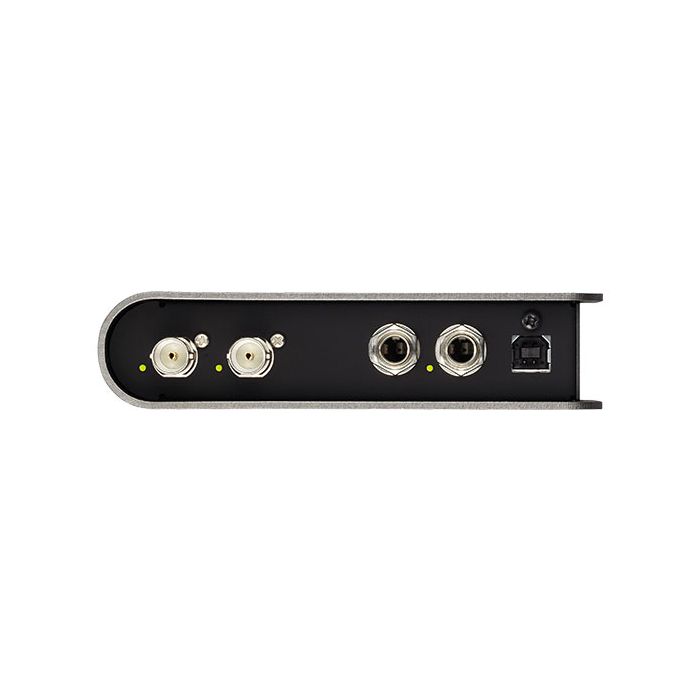

Input

• SDI Connector:BNC type x 1
• Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R)
• Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )

Processing

• Audio embedding Audio de-embedding

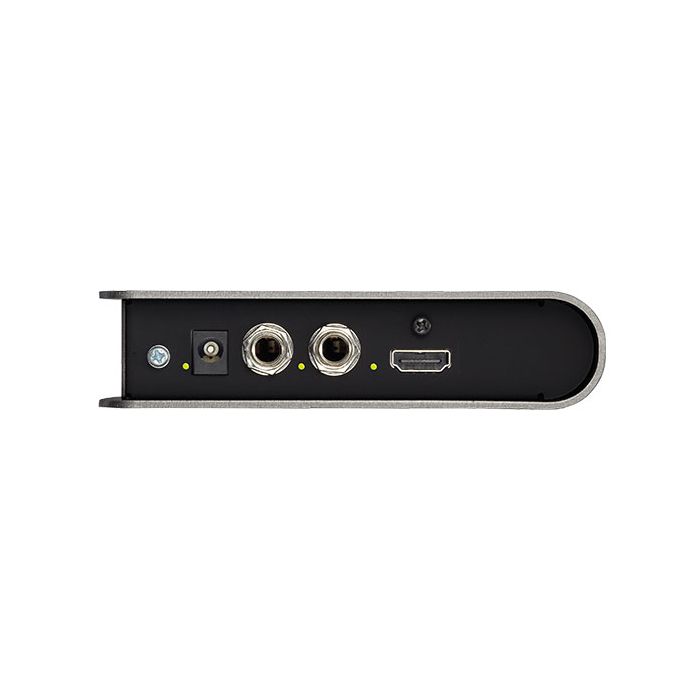

Output

• SDI Connector: BNC type x 1 ( Thru/Out )
• HDMI Connector: Type A (19 pins ) x 1
• Analog Audio Connector: 1/4" TRS phone type ( balanced) x 1 pair (L/R)
• Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 (Combined use with Analog Audio R ch Connector )

Input/Output Format

• SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
• SDI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
• Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
• HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
• HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 chSDI Output Signal StandardsSMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C
• SDI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 )
• SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C)
• HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E)
• HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch

Audio Input/Output

• Analog Audio Input Level: +4dBu
• Analog Audio Maximum Input Level: +24dBu
• Analog Audio Input Impedance: 110 ohms
• Analog Audio Output Level: +4dBu
• Analog Audio Output Impedance: 600 ohms
• Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch
• Digital Audio Output Impedance: 110 ohms

Others

• USB Connector: USB Type B (Hi-Speed USB) x 1
• Power Supply: DC 9V
• Power Consumption: 8W
• Operation Temperature: +0 to + 40 degrees Celsius

Size and Weight

• Width: 150 mm/5-15/16 inches
• Depth: 130 mm/5-1/8 inches
• Height: 30 mm/1-3/16 inches
• Weight: 500 g/1 lbs. 2 oz.

(0dBu=0.775Vrms )

• Roland VC-1-SH Converter
• AC adaptor
• Power Cord
• Rubber Foot x 4
• Owner's Manual
