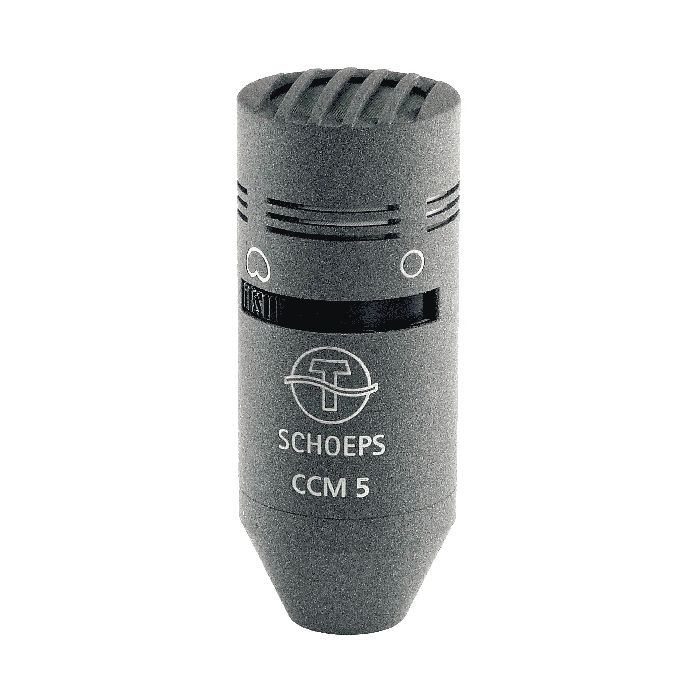

Schoeps CCM 5 Compact Switchable Microphone
Compact Microphone with a Switchable Cardioid/Omni Pick up pattern
MPN: SCH-CCM5 SKU: SCH-CCM5
The CCM 5 offers two selectable directional patterns, but uses only one membrane – a no-compromise approach. The fact that full response is maintained to the highest audible frequencies is unusual for a switchable-pattern microphone.
Ask our team about our Price Match Pledge.
Get in touch
In stock
Usually Ships in 1-3 Days
The CCM 5 offers two selectable directional patterns, but uses only one membrane – a no-compromise approach. The fact that full response is maintained to the highest audible frequencies is unusual for a switchable-pattern microphone.
In its omnidirectional setting the CCM 5 is a true pressure transducer with smooth, extended low-frequency response, low sensitivity to most wind and breath noise, handling noise or mechanical vibration, and no proximity effect.
Unlike conventional, dual-diaphragm multi-pattern microphones, its cardioid setting retains its full directionality even at very low frequencies. The benefits of this design in purity and clarity of sound are immediately audible.
The CCM 5 has a slight high-frequency emphasis as compared with the corresponding single-pattern omni (CCM 2) and cardioid (CCM 4).
The CCM 5 is nearly an all-purpose microphone. It is what we recommend for those starting out with the CCM series, unless particular circumstances (such as the need for greater directivity or a bidirectional pattern) would indicate a different choice.
(Please note: The pattern selector should be definitely set to one position or the other; in-between settings will yield undefined results.)
- Omni and cardioid patterns, mechanically switchable
- Slight emphasis of the high frequencies
- Broad range of applications
- Preferred uses similar to those of the MK 2 or MK 2S and the MK 4: In the cardioid setting: for use with singing or speaking voices or most instruments, as a spot microphone, and for stereo recording with coincident, ORTF or M/S microphone arrangements
All CCMs
- Current consumption with 12 V: 8 mA
- Current consumption with 48 V: 4 mA
- Impedance: 90 Ω
- Minimum recommended load impedance: 600 Ω
- Low-cut frequency: 20 Hz
- Length (L version): without connector: 46 – 58 mm
- Length (U version): 46 – 58 mm
- Diameter: 20 mm
- Weight (U-version): 33 g
- Weight (L-version): 43 g
- Surface finish: matte gray

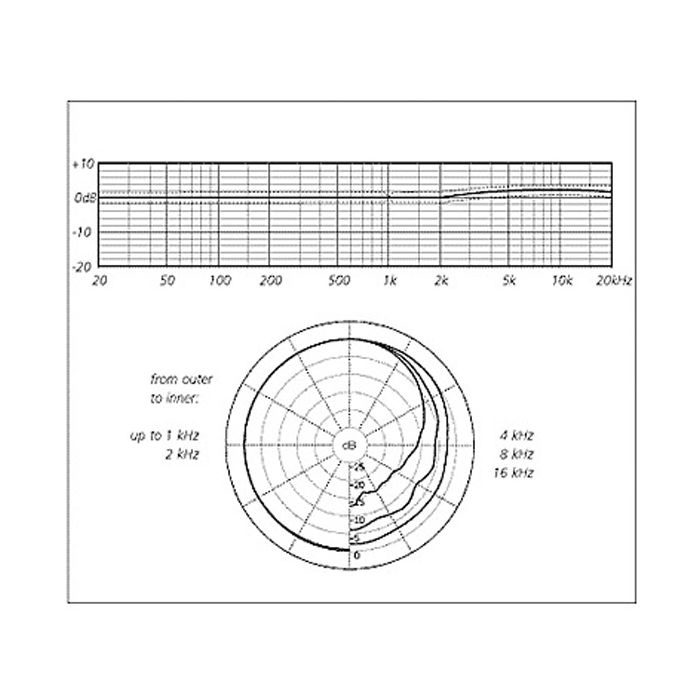

MK 5 - omni
- Frequency range: 20 Hz - 20 kHz
- Sensitivity: 10 mV/Pa
- Equivalent noise level (A-weighted): 14 dB-A
- Equivalent noise level (CCIR): 26 dB
- Signal-to-noise ratio (A-weighted): 80 dB-A
- Maximum sound pressure level at 0.5% THD: 133 dB-SPL

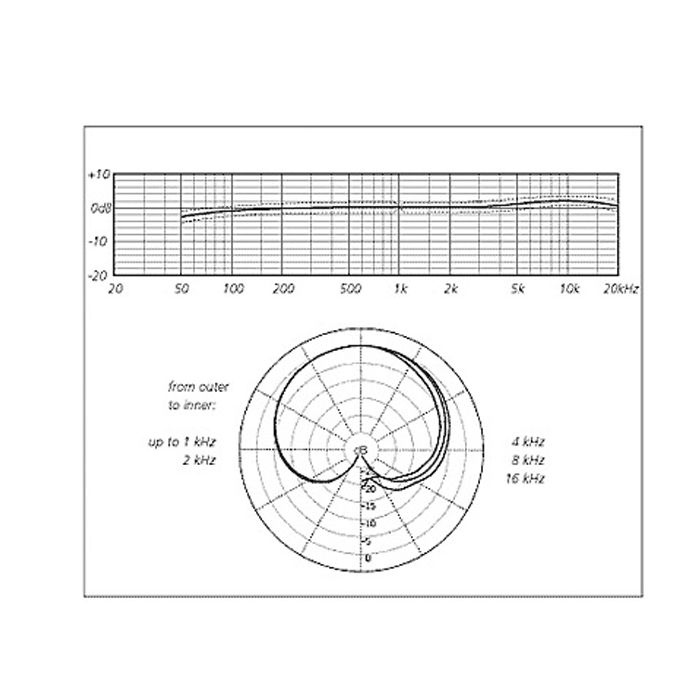

MK 5 - cardioid
- Frequency range: 40 Hz - 20 kHz
- Sensitivity: 13 mV/Pa
- Equivalent noise level (A-weighted): 15 dB-A
- Equivalent noise level (CCIR): 24 dB
- Signal-to-noise ratio (A-weighted): 79 dB-A
- Maximum sound pressure level at 0.5% THD: 132 dB-SPL
- K 5 LU Lemo to XLR-3M Adapter cable
- SGC Miniature stand mounts with swivel
