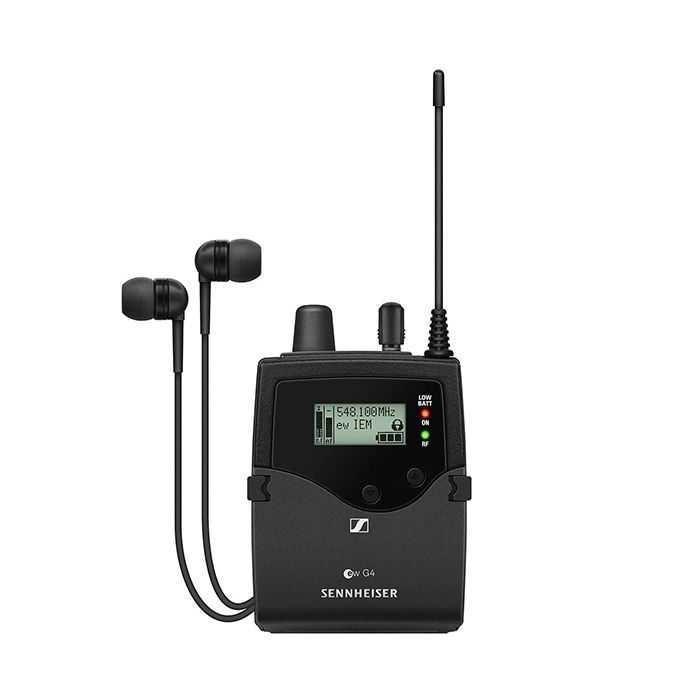

Sennheiser EK IEM G4-GB Bodypack Receiver

In-Ear-Monitoring bodypack receiver for use with Sennheiser EW G4 (GB Range: 606-648 MHz)

MPN: 509911 SKU: 509911

$325.00

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 5-7 Days

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.

Robust bodypack receiver delivering clarity along the whole frequency spectrum for daily use on stage
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Compatible with Sennheiser WSM control software for flexible frequency allocation
Up to 16 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 50 mW) depending on country regulations

Frequency range: GB: 606 - 648 MHz
Dimensions Approx: 82 x 64 x 24 mm
Compander Sennheiser: HDX
THD, total harmonic distortion: ≤ 0.9 %
Weight (incl. batteries) approx: 125 g
Signal-to-noise ratio approx: 90 dBA
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Operating time approx: 4 to 6 hours (depending on volume level)
Modulation: Wideband FM
Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Current consumption:

at nominal voltage: approx. 140 mA
with transmitter switched off: ≤ 25 µA

Adjacent channel rejection: Typically ≥ 65 dB
Audio-Output-Power: 2 x 100 mW at 32 Ω
Intermodulation attenuation: Typically ≥ 70 dB
Limiter: –18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
Powering: 3 V battery / 2.4 V rechargeable battery
Receiving frequency: Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
RF sensitivity: < 4 μV, typ. 1.6 μV for 52 dBA rms S/N
Squelch: 5 to 25 dBµV, adjustable in steps of 2 dB
Bass Boost: +8 dB at 80 kHz
Temperature Range: -10 °C to +55 °C
Receiver Principle: Adaptive diversity
Blocking: ≥ 80 dB
