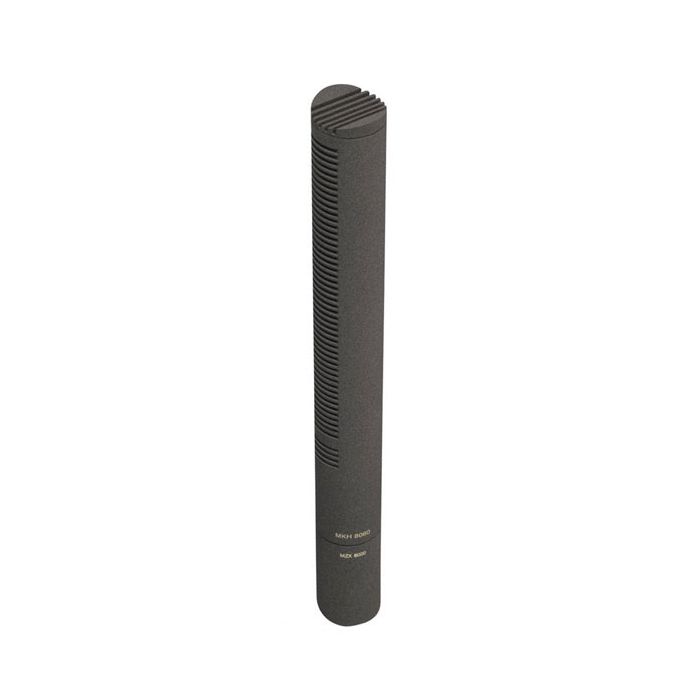

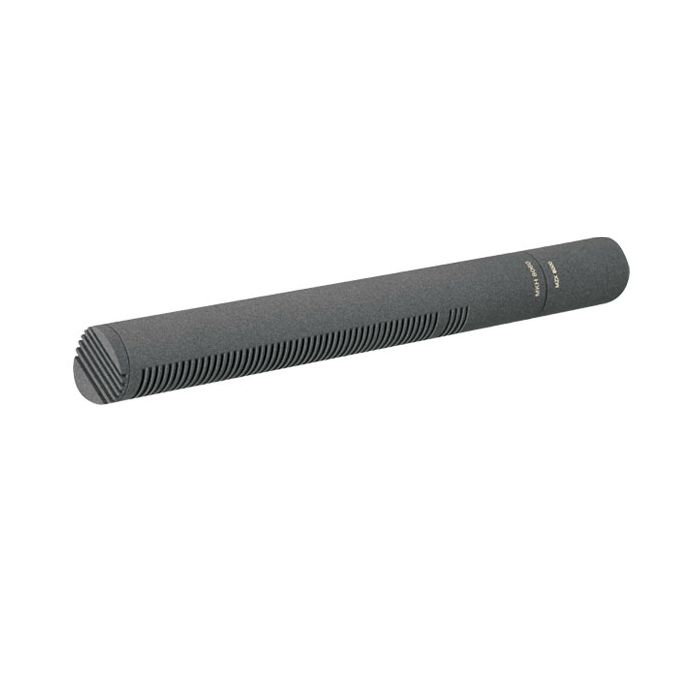

Sennheiser MKH 8060 Compact Shotgun Microphone

• Super-cardioid/lobar pick-up pattern

• Very natural sound

• Undistorted off-axis sound

• Exceptionally low inherent self-noise

• Extremely low distortion

• Transformerless and fully floating balanced output

• High output signal

• Rugged metal housing

• Non-reflective Nextel coating

• Extremely weather-proof due to RF circuit

• Ideal for camera mounting due to compact design

• Becomes a digital mic when combined with the MZD 8000 digital module

• Timbrally identical with the other 8000-series microphones for optimum aural compatibility

Dimensions: diameter 19 mm, lenght 175 mm (145 mm excluding XLR module)

Transducer principle (Microphone): RF condenser microphone

Frequency response: 50 - 25000 Hz

Weight: 112 g (80 g excluding XLR module)

Audio output: XLR-3M balanced, transformerless, floating

Pick-up pattern: super-cardioid/lobar

Sensitivity in free field, no load (1kHz): -24 dBV/Pa (63mV/Pa)

Nominal impedance: 25 Ohm

Min. terminating impedance: 2000 Ohm

Phantom powering: 48 V +/- 4 V

Equivalent noise level: 11 dB

Equivalent noise level weighted as per CCIR 468-3: 23 dB

Maximum sound pressure level (passiv): 129 dB SPL

Current consumption: 3,3 mA

• Shotgun microphone MKH 8060

• Microphone clip

• Foamwindshield

• Threaded transport tube

• User manual
