Sennheiser SR IEM G4-GB Rackmount Transmitter

Half-rack stereo transmitter for In-Ear-Monitoring for use with Sennheiser EW G4 (GB Range: 606-648 MHz)

MPN: 509910 SKU: 509910

$415.83

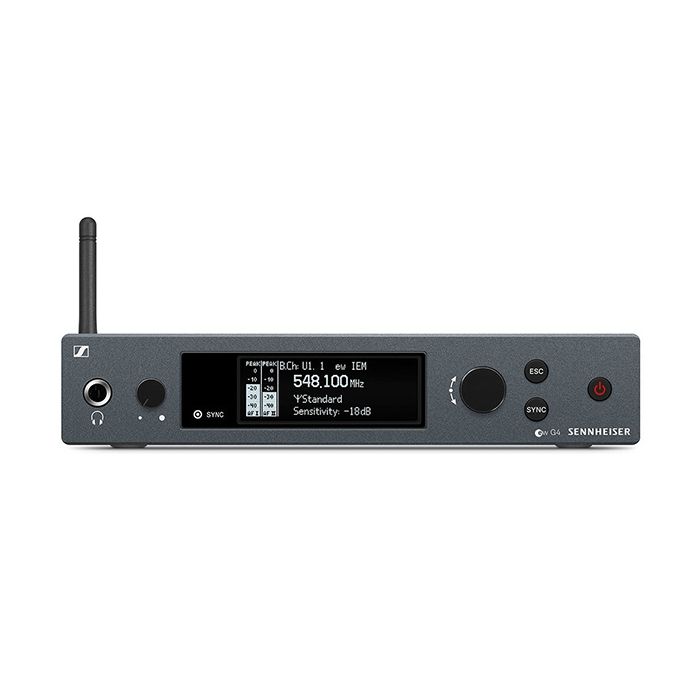

Half-rack stereo transmitter in a full-metal housing with OLED display for full control

Seen it cheaper?

Ask our team about our Price Match Pledge.

Get in touch

In stock

Usually Ships in 5-7 Days

Half-rack stereo transmitter in a full-metal housing with OLED display for full control delivering clarity along the whole frequency spectrum for daily use on stage with evolution wireless G4 In Ear Monitoring systems.

Half-rack stereo transmitter in a full-metal housing with OLED display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Compatible with Sennheiser WSM control software for flexible frequency allocation
Up to 16 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 50 mW) depending on country regulations
Compatible with wireless speaker system LSP 500 PRO

Frequency range: GB: 606 - 648 MHz
Dimensions Approx: 202 x 212 x 43 mm
Compander: Sennheiser HDX
THD, total harmonic distortion: <0.9 %
Weight Approx: 980 g
Audio input: 2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Audio output: ¼" (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio: >90 dB
RF output power switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modulation: Wideband FM stereo (MPX pilot tone)
Power supply: 12 V DC
Current consumption max: 350 mA
Max. Input voltage: +22 dBu
Transmission frequency: Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels
AF frequency response: 25 Hz to 15 kHz
Temperature Range: -10 °C to +55 °C
Frequency stability: ±10 ppm
Antenna Output: BNC socket, 50 Ω
